Schneider Electric TeSys Vario Emergency Stop Switch Disconnector 175A Back of Enclosure VCCF6
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Emergency Stop Switch Disconnector
Description

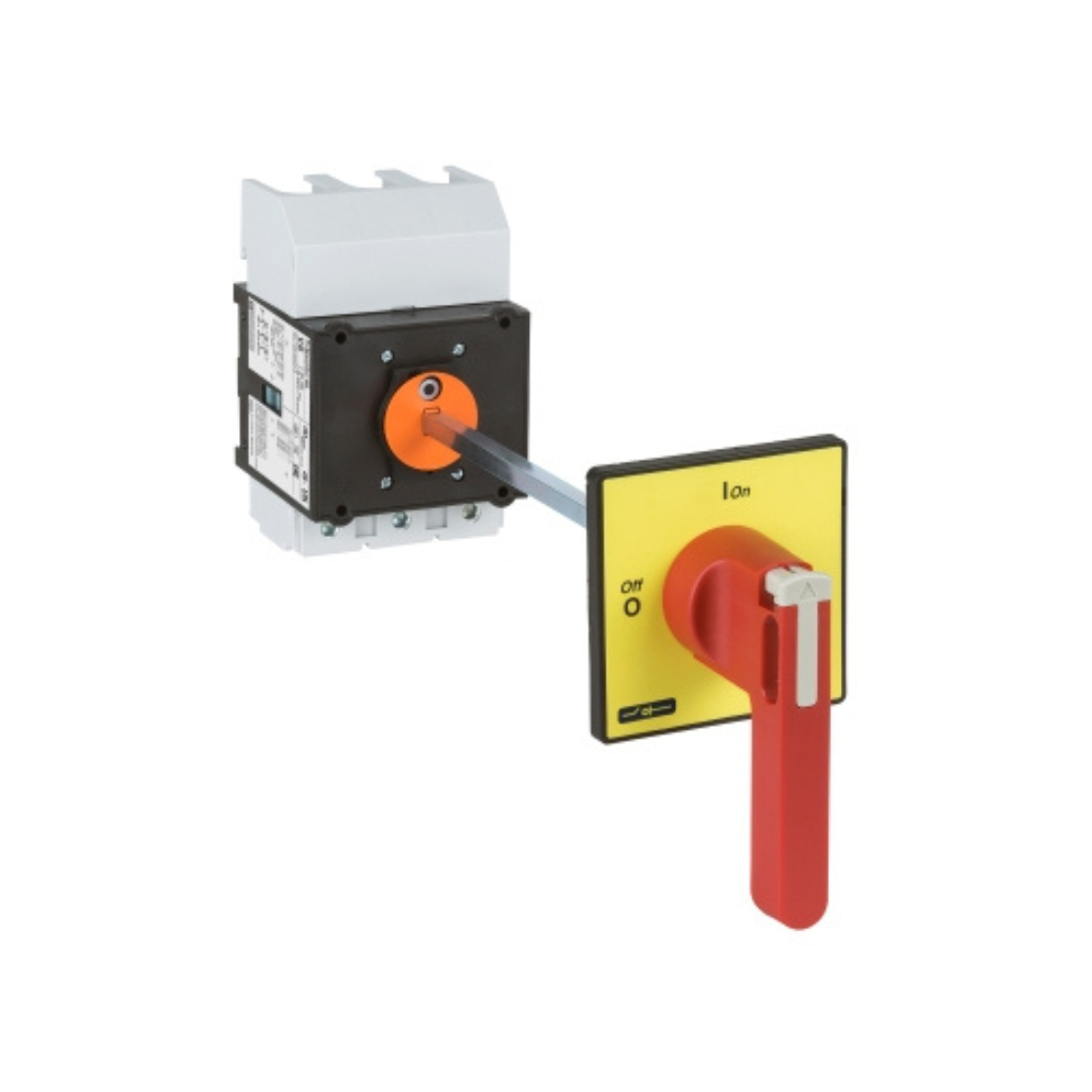

Schneider Electric VCCF6 TeSys Vario Emergency Stop Switch Disconnector, 3-pole, 175 A/690 V, for motor switching applications up to 45 kW at 400 V AC-23. A complete unit consisting of a V6 switch housing, a VZN18 extension shaft, a KZ74 door lock plate, and a red handle with a 90x90mm yellow faceplate KCF3PZ.
Schneider Electric VCCF6 TeSys Vario Emergency Stop Switch Disconnector is designed to be used as a main and emergency disconnect switch. Lockable handle for 3 padlocks (must be ordered separately). Handle with 4 screws to fix to the door, ensuring IP65 for assembly. The possible distance between the rear of the housing and the door is 330-350 mm. Certified to multiple standards (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Features
- Designed to be used as a main and emergency disconnect switch.
- Lockable handle for 3 padlocks
- The possible distance between the rear of the housing and the door is 330-350 mm.
| Brand | Schneider Electric |
| Item Name | Emergency Stop Switch Disconnector |
| Model | VCCF6 |
| Conventional Free Air Thermal Current | 175 A |
| Conventional Enclosed Thermal Current | 140 A |
| Rated Impulse Withstand Voltage | 8 kV |
| Breaking Capacity | 1400 A at 400 V (AC-21A), 1400 A at 400 V (AC-22A), 1400 A at 400 V (AC-23A) |
| Compatibility Code | Main switch disconnector |
| Connections - Terminals Power Circuit | Screw clamp terminals95-95 mm² - solid, power circuit: screw clamp terminals70-70 mm² - flexible - with cable end |
| Control Type | Rotary handle |
| Height | 125 mm |
| Fire Resistance | 960 °C conforming to IEC 60695-2-1 |
| Fixing Mode | By 4 screws for handle, by clips for switch, by screws for switch |
| Mechanical Durability | 30000 cycles |
| IP Degree Of Protection | IP20 conforming to IEC 60529, IP65 |
| Marking | 0 - 1 |
| Mounting Support | Handle: door, switch: symmetrical rail, switch: plate |
| Network Type | AC, DC |
| Poles Description | 3P |
| Protective Treatment | TC |
| Rated Operational Voltage Limits | 690 V AC 50/60 Hz |
| Suitability for Isolation | Yes |
| Tightening Torque | Power circuit: 22.6-22.6 N.m - on screw clamp terminals |
| Certifications | CSA, CCC, GL, UL, UKCA |
| Range | TeSys |
| Width | 90 mm |
| Rated Short-time Withstand Current | 2100 A at 400 V Duration: 1 s |
| Contacts Type And Composition | 3 NO |
| Rotary Handle Padlocking | 1 to 3 padlocks 4-8 mm |
| Handle Front Plate Colour | Yellow |
| Handle Colour | Red |
| Performance Level | High performance |
| Making Capacity | 1750 A at 400 V AC-21A, 1750 A at 400 V AC-22A, 1750 A at 400 V AC-23A |
| Rotary Handle Mounting Style | Extended |
| Intermittent Duty Class | 30 |
| Standards | IEC 60947-3 |
| Rated Operational Current | 83 A AC-23 Ue: 400 V |
| Mechanical Robustness Vibrations | 10...150 Hz (1 gn) |
| Conforming to IEC 60068-2-6, shocks 11 ms (30 Gn) conforming to IEC 60068-2-27 | |
| Device Composition | Handle, shaft extension, switch |
| Base Dimension | 90 x 90 mm |
| Electrical Durability | 30000 cycles AC-21, 30000 cycles DC-1...5 |
| Ambient Air Temperature For Operation | -20-50 °C |
| Weight | 1.32 kg |
