Schneider Electric TeSys Vario Emergency Stop Switch Disconnector 125A Back of Enclosure VCCF5
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Emergency Stop Switch Disconnector
Description

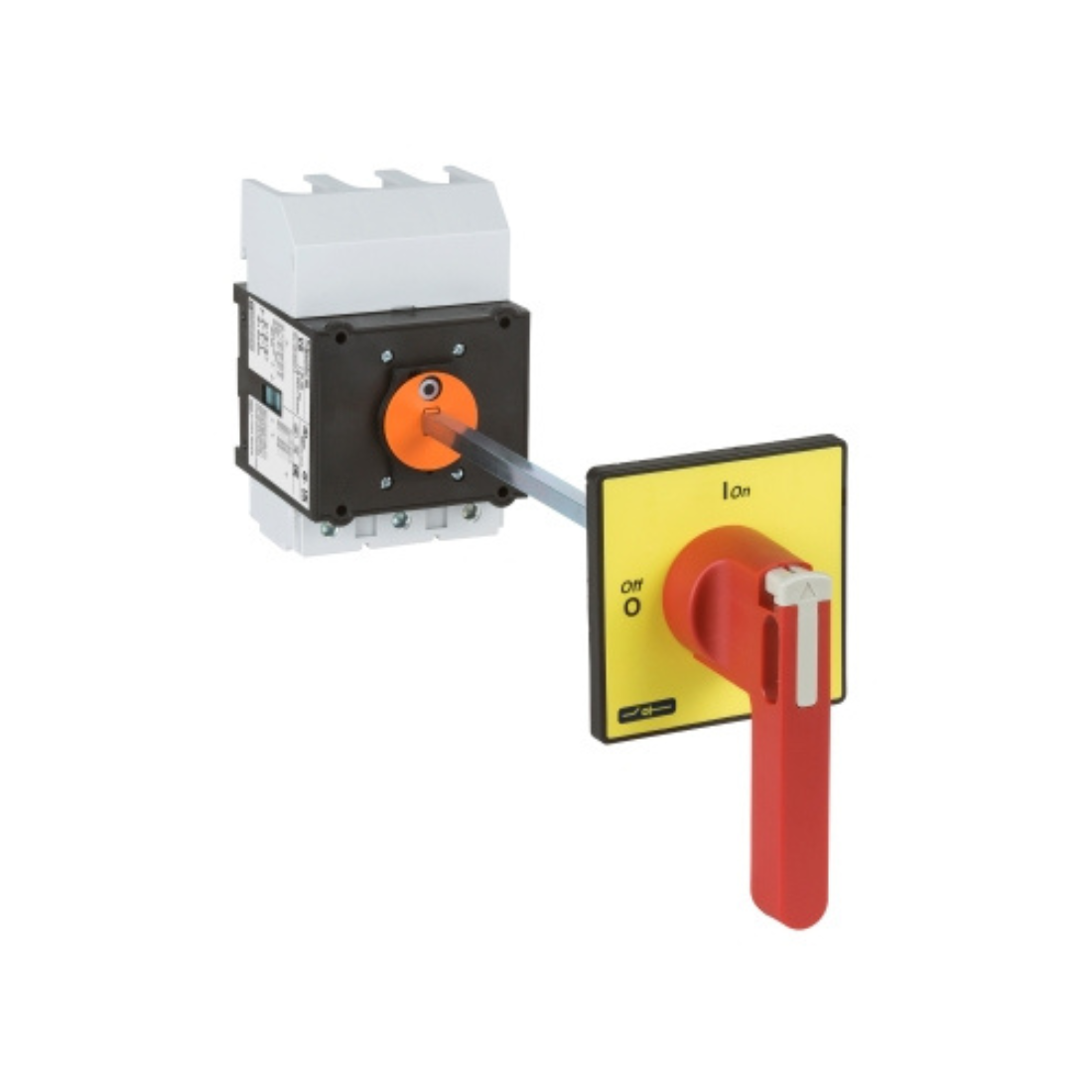

Schneider Electric VCCF5 TeSys Vario Emergency Stop Switch Disconnector, 3-pole, 125 A/690 V, for motor switching applications up to 37 kW at 400 V AC-23. A complete unit composed of V5 switch body, VZN18 extension shaft, KZ74 door lock plate, red handle with yellow faceplate 90x90mm KCF3PZ.
Schneider Electric VCCF5 TeSys Vario Emergency Stop Switch Disconnector is designed for emergency and main stop switch disconnect use. Handle with padlock, for 3 padlocks (order separately). Handle with 4 door fixing screws, ensuring IP65 to the assembly. The possible distance between the back of the cabinet and the door is 330-350 mm. Multi-standard certification (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Features
- Designed for emergency and main stop switch disconnect use.
- Handle with padlock, for 3 padlocks.
- The possible distance between the rear of the housing and the door is 330-350 mm.
| Brand | Schneider Electric |
| Item Name | Emergency Stop Switch Disconnector |
| Model | VCCF5 |
| Conventional Free Air Thermal Current | 125 A |
| Conventional Enclosed Thermal Current | 100 A |
| Rated Impulse Withstand Voltage | 8 kV |
| Breaking Capacity | 1000 A at 400 V (AC-21A), 1000 A at 400 V (AC-22A), 1000 A at 400 V (AC-23A) |
| Compatibility Code | Main switch disconnector |
| Connections - Terminals | Power circuit: screw clamp terminals95-95 mm² - solid, power circuit: screw clamp terminals70-70 mm² - flexible - with cable end |
| Control Type | Rotary handle |
| Height | 125 mm |
| Fire Resistance | 960 °C conforming to IEC 60695-2-1 |
| Fixing Mode | By 4 screws for handle, by clips for switch, by screws for switch |
| Mechanical Durability | 30000 cycles |
| IP Degree Of Protection | IP20 conforming to IEC 60529, IP65 |
| Marking | 0 - 1 |
| Mounting Support | Handle: door, switch: symmetrical rail, switch: plate |
| Network Type | AC, DC |
| Poles Description | 3P |
| Protective Treatment | TC |
| Rated Operational Voltage Limits | 690 V AC 50/60 Hz |
| Suitability For Isolation | Yes |
| Tightening Torque | Power circuit: 22.6-22.6 N.m - on screw clamp terminals |
| Certifications | CCC, UL, CSA, GL, UKCA |
| Range | TeSys |
| Width | 90 mm |
| Rated Short-time Withstand Current | 1500 A at 400 V duration: 1 s |
| Contacts Type And Composition | 3 NO |
| Rotary Handle Padlocking | 1 to 3 padlocks 4-8 mm |
| Handle Front Plate Colour | Yellow |
| Handle Colour | Red |
| Performance Level | High performance |
| Making Capacity | 1250 A at 400 V AC-21A, 1250 A at 400 V AC-22A, 1250 A at 400 V AC-23A |
| Rotary Handle Mounting Style | Extended |
| Intermittent Duty Class | 30 |
| Standards | IEC 60947-3 |
| Rated Operational Current | 68.5 A AC-23 Ue: 400 V |
| Mechanical Robustness Vibrations | 10...150 Hz (1 gn) |
| Conforming to IEC 60068-2-6, shocks 11 ms (30 Gn) conforming to IEC 60068-2-27 | |
| Device Composition | Handle, shaft extension, switch |
| Base Dimension | 90 x 90 mm |
| Electrical Durability | 30000 cycles AC-21, 30000 cycles DC-1...5 |
| Ambient Air Temperature For Operation | -20-50 °C |
| Weight | 1.32 kg |
