Schneider Electric TeSys LRD Thermal Overload Relays 95-120A Class 10A LRD4367

Name: Schneider Electric TeSys LRD Thermal Overload Relays 95-120A Class 10A LRD4367
Brand: Schneider Electric
Price: 595.35 AED
Availability: InStock

AED 595.35

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Thermal Overload Relays

Description

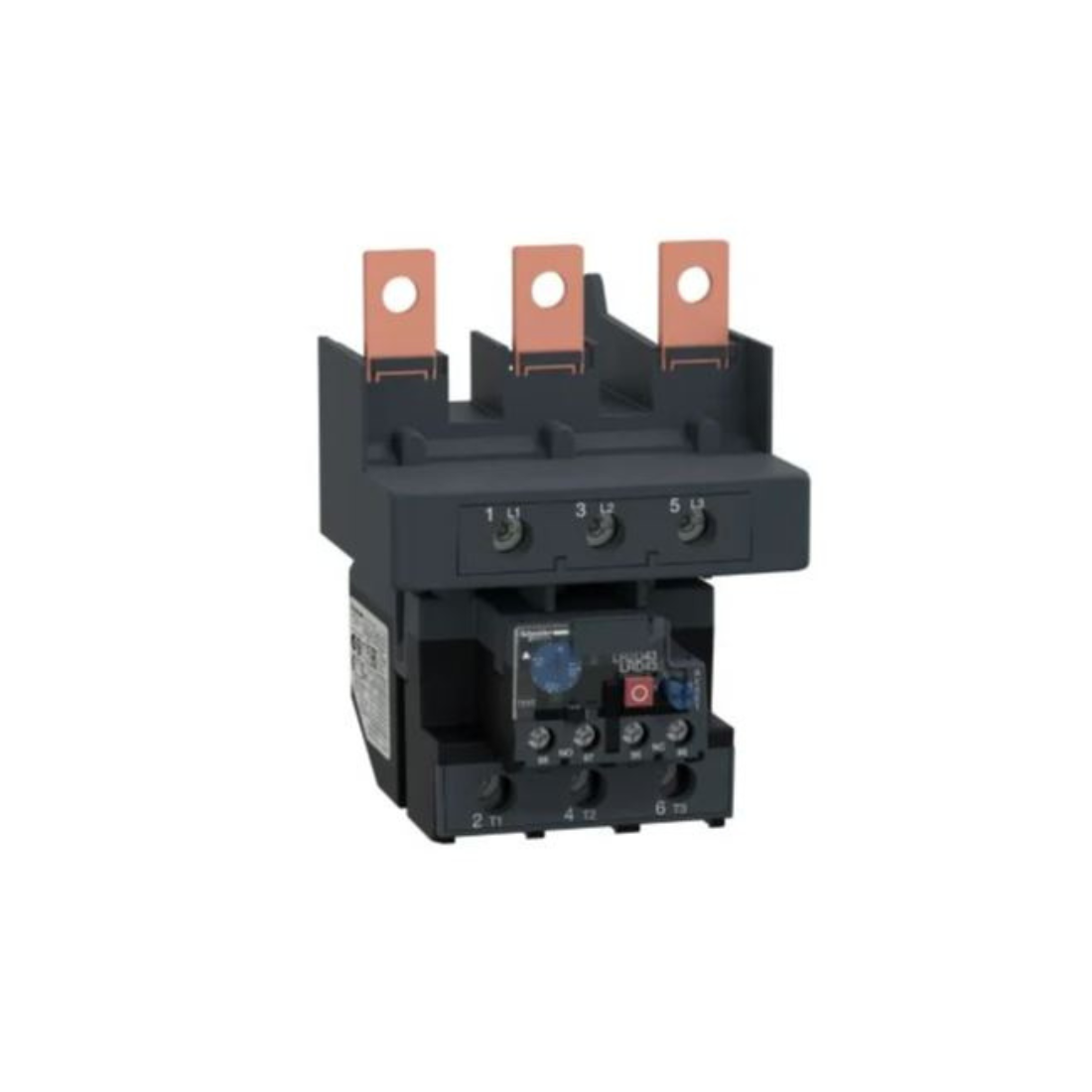

Schneider Electric LRD4367 TeSys LRD Thermal Overload Relay is a protective device used in electrical systems to protect motors from damage caused by overload or excessive current. The relay is suitable for circuits with a current rating between 95 amps and 120 amps.

Class 10A means that the relay is designed to trip within a certain period of time when the current exceeds a certain threshold. Class 10 means the relay will trip and disconnect the circuit if the current reaches 600% of its nominal value within 10 seconds. The letter A indicates that it is an inverse delay characteristic, meaning that the trip time shortens as the current increases.

Overall, Schneider Electric LRD4367 TeSys LRD Thermal Overload Relay is designed for the protection of motors in circuits with a rated current between 95 and 120 amps. It is set to trip relatively quickly when the current exceeds 600% of its rating, and the trip time decreases as the current increases.

Features

95-120A Th Overload Relay
Protect motors from overloads and phase failures
Connection by screw clamp terminals

Specifications

Brand : Schneider Electric

Item Name : Thermal Overload Relays

Model : LRD4367

Conventional Free Air Thermal Current : 5 A for Signalling Circuit

Rated Insulation Voltage : Power Circuit: 1000 V conforming to IEC 60947-4-1, power circuit: 600 V conforming to CSA, power circuit: 600 V conforming to UL

Rated Impulse Withstand Voltage : 6 kV conforming to IEC 60947-1

Ambient Air Temperature For Operation : -20-60 °C without derating conforming to IEC 60947-4-1

Ambient Air Temperature For Storage : -60-70 °C

Associated Fuse Rating : 4 A gG for signalling circuit, 4 A BS for signalling circuit

Auxiliary Contact Composition : 1 NO + 1 NC

Climatic Withstand : Conforming to IACS E10

Compatibility Code : LRD

Connections - Terminals : power circuit: screw clamp terminals 1 cable(s) 4-35 mm² flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible without cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² solid without cable end, power circuit: screw clamp terminals 1 cable(s) 4-50 mm² flexible without cable end, power circuit: screw clamp terminals 1 cable(s) 4-50 mm² solid without cable end

Control Type : Red Push-button: stop, blue push-button: reset

Depth : 132mm

Dielectric Strength : 2.2 kV at 50 Hz conforming to IEC 60947-1

Flame Retardance : V1 conforming to UL 94

Height : 81mm

IP Degree Of Protection : IP20 Conforming to IEC 60529

Mechanical Robustness : vibrations: 6 Gn conforming to IEC 60068-2-6, shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7

Mounting Support : Plate, with specific accessories, rail, with specific accessories, under contactor

Network Frequency : 0...400 Hz

Network Type : DC, AC

Permissible Current : 0.06 A at 440 V DC-13 for signalling circuit, 0.12 A at 600 V AC-15 for signalling circuit

Phase Failure Sensitivity : Tripping current 130 % of Ir on two phase, the last one at 0

Certifications : IEC, UL, CSA, CCC, EAC, ATEX INERIS, UKCA

Compatibility : LC1D150, LC1D115

Range : TeSys, TeSys Deca

Rated Operational Voltage Limits : 1000 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1

Relay Application : Motor Protection

Standards : EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, GB/T 14048.4, GB/T 14048.5, EN 50495

Tightening Torque : control circuit: 1.7 N.m - on screw clamp terminals, power circuit: 9 N.m - on screw clamp terminals

Width : 70 mm

Temperature Compensation : -20-60 °C

Thermal Overload Class : Class 10A conforming to IEC 60947-4-1

Thermal Protection Adjustment Range : 95-120 A

Tripping Threshold : 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1

Weight : 0.9 kg
