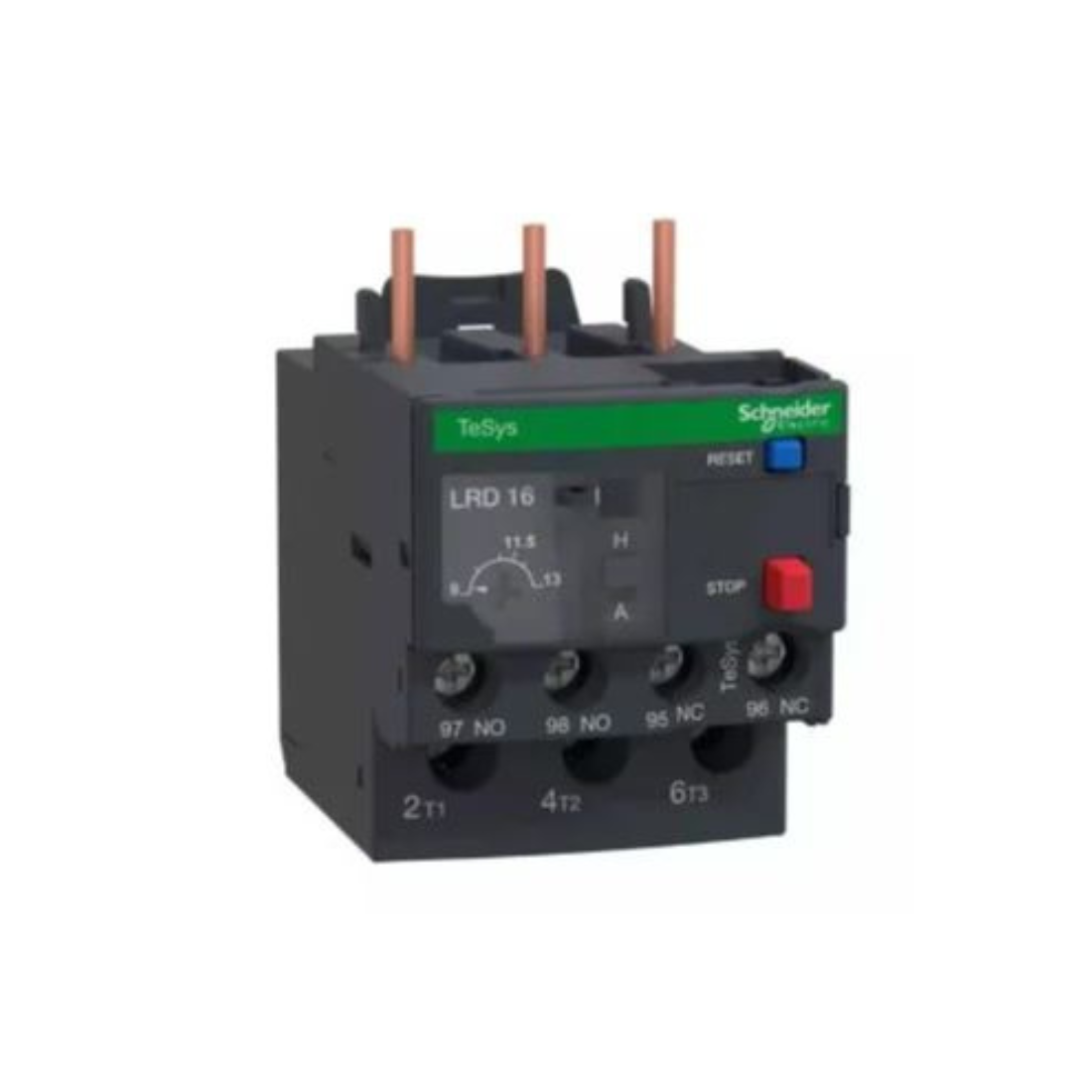

Schneider Electric TeSys LRD Thermal Overload Relays 9-13A Class 10A LRD16

Name: Schneider Electric TeSys LRD Thermal Overload Relays 9-13A Class 10A LRD16
Brand: Schneider Electric
Price: 63.0 AED
Availability: InStock

AED 63.00

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Thermal Overload Relays

Description

Schneider Electric LRD16 TeSys LRD Thermal Overload Relays is a protective device used in electrical circuits to prevent overheating of motors or other electrical components. 9-13A is the range of current that the thermal overload relay is designed to handle. In this case, it can protect against overcurrent conditions in the range of 9 to 13 amperes.

Class 10A is the tripping class of the thermal overload relay. It defines the time it takes for the relay to trip in case of an overload. Class 10A relays are designed to trip within a relatively short time period under overload conditions. It typically trips within 10 seconds when subjected to an overload condition that is 7-10 times the full-load current.

Class 10A relays are commonly used in applications where a fast-tripping response is required to protect against overheating and damage, but where a small degree of overload is acceptable for short durations. This is often the case in situations where a motor or equipment might experience short-term surges during normal operation.

Features

9-13A Th Overload Relay
Protect motors from overloads and phase failures
Easier to install and operate with multi-standard screws

Specifications

Brand : Schneider Electric

Item Name : Thermal Overload Relays

Model : LRD16

Package1 Length*Width*Height : 9.0 cm x 7.8 cm x 5.0 cm

Country of Manufacturing : France

Conventional Free Air Thermal Current : 5 A for Signalling Circuit

Rated Operational Voltage : 690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1

Rated Insulation Voltage : power circuit: 600 V conforming to CSA, power circuit: 600 V conforming to UL, power circuit: 690 V conforming to IEC 60947-4-1

Rated Impulse Withstand Voltage : 6 kV

Ambient Air Temperature For Operation : -20-60 °C without derating conforming to IEC 60947-4-1

Ambient Air Temperature For Storage : -60-70 °C

Associated Fuse Rating : 4 A gG for signalling circuit, 4 A BS for signalling circuit

Auxiliary Contact Composition : 1 NO + 1 NC

Climatic Withstand : Conforming to IACS E10

Compatibility Code : LRD

Connections - Terminals : Control Circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible without cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² solid, power circuit: screw clamp terminals 1 cable(s) 1.5-10 mm² flexible without cable end, power circuit: screw clamp terminals 1 cable(s) 1-4 mm² flexible with cable end, power circuit: screw clamp terminals 1 cable(s) 1-6 mm² solid

Control Type : Red Push-button: stop, blue push-button: reset

Depth : 70 mm

Dielectric Strength : 1.89 kV at 50 Hz conforming to IEC 60947-1

Flame Retardance : V1 conforming to UL 94

Height : 66 mm

IP Degree Of Protection : IP20 Conforming to IEC 60529

Irms Rated Making Capacity : 250 A at 440 V for power circuit conforming to IEC 60947, 140 A AC for signalling circuit conforming to IEC 60947-5-1, 250 A DC for signalling circuit conforming to IEC 60947-5-1

Mechanical Robustness : Vibrations: 6 Gn conforming to IEC 60068-2-6, shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7

Mounting Support : Plate, with specific accessories, rail, with specific accessories, under contactor

Network Frequency : 0...400 Hz

Network Type : DC, AC

Permissible Current : 1.5 A at 240 V AC-15 for signalling circuit, 0.1 A at 250 V DC-13 for signalling circuit

Phase Failure Sensitivity : Tripping Current 130 % of Ir on two phase, the last one at 0

Certifications : IEC, UL, CSA, CCC, EAC, BV, RINA, DNV-GL, LROS (Lloyds register of shipping), ATEX INERIS, UKCA

Compatibility : LC1D18, LC1D38, LC1D32, LC1D12, LC1D25

Range : TeSys, TeSys Deca

Rated Operational Voltage Limits : 690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1

Relay Application : Motor Protection

Standards : EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, GB/T 14048.4, GB/T 14048.5, EN 50495

Tightening Torque : Control Circuit: 1.7 N.m - on screw clamp terminals, power circuit: 1.7 N.m - on screw clamp terminals

Width : 45 mm

Temperature Compensation : -20-60 °C

Thermal Overload Class : Class 10A conforming to IEC 60947-4-1

Thermal Protection Adjustment Range : 2.5-4 A

Tripping Threshold : 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1

Mechanical Robustness : Vibrations : 6 Gn conforming to IEC 60068-2-6, shocks: 15 Gn for11 ms conforming to IEC 60068-2-7

Weight : 141.0 g
