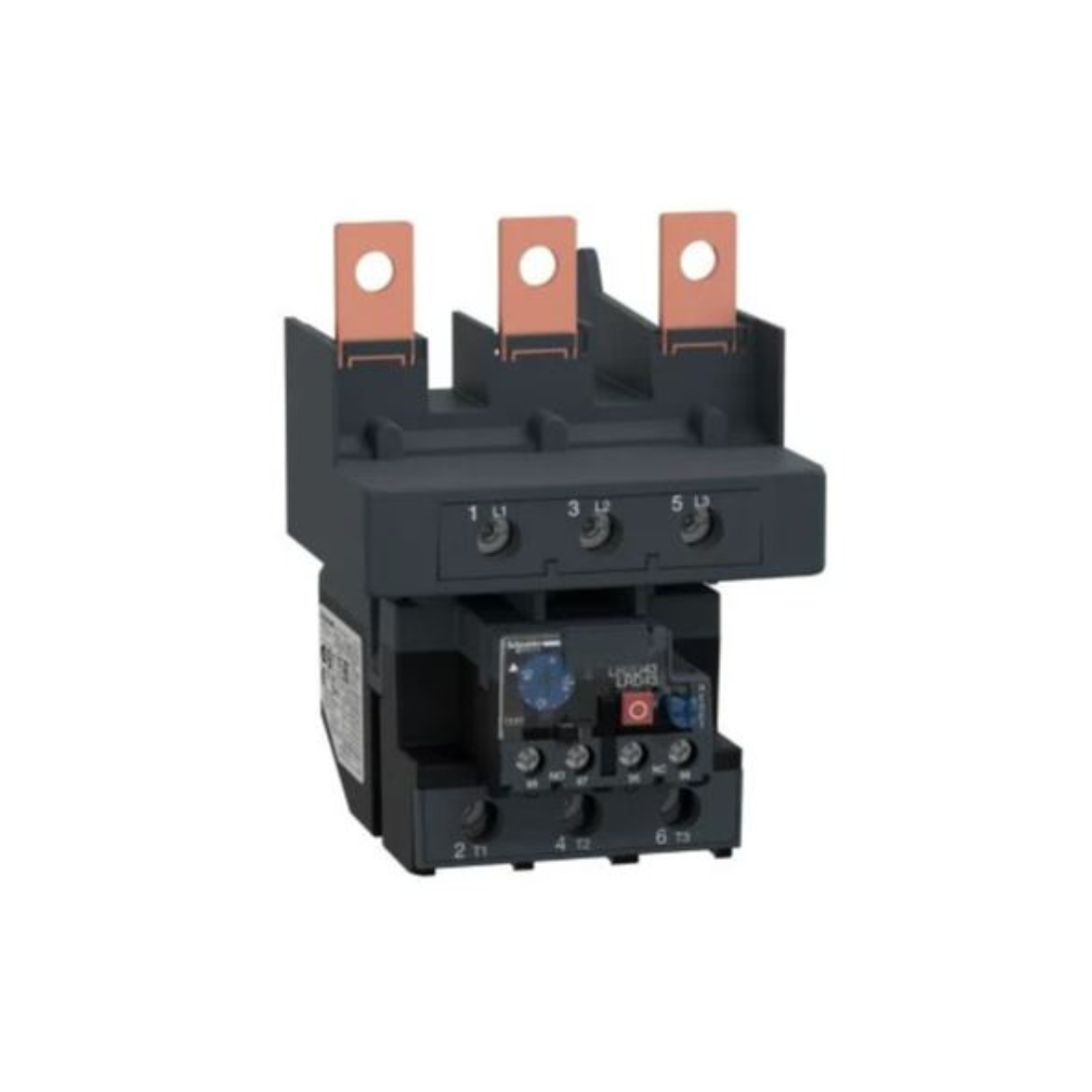

Schneider Electric TeSys LRD Thermal Overload Relays 80-104A Class 10A LRD4365

Name: Schneider Electric TeSys LRD Thermal Overload Relays 80-104A Class 10A LRD4365
Brand: Schneider Electric
Price: 540.75 AED
Availability: InStock

AED 540.75

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Thermal Overload Relays

Description

Schneider Electric LRD4365 TeSys LRD Thermal Overload Relay is a protective device used in electrical circuits to protect motors from damage caused by overheating. Monitors the current flowing through the motor and trips when an overload condition is detected.

80-104A is the current range for which the relay is designed. It can handle motor currents between 80 and 104 amps. Class 10A is the trip class of the relay. The trip class determines the time the relay needs to trip in the event of an overload. The relay trips within 10 seconds when the motor current exceeds the specified range.

Features

80-104 Th Overload Relay
Protect motors against overloads and phase failure.
Connection by screw clamp terminals.

Specifications

Brand : Schneider Electric

Item Name : Thermal Overload Relays

Model : LRD4365

Conventional Free Air Thermal Current : 5 A for Signalling Circuit

Rated Insulation Voltage : Power Circuit: 1000 V conforming to IEC 60947-4-1, power circuit: 600 V conforming to CSA, power circuit: 600 V conforming to UL

Rated Impulse Withstand Voltage : 6 kV conforming to IEC 60947-1

Ambient Air Temperature For Operation : -20-60 °C without derating conforming to IEC 60947-4-1

Ambient Air Temperature For Storage : -60-70 °C

Associated Fuse Rating : 4 A gG for signalling circuit, 4 A BS for signalling circuit

Auxiliary Contact Composition : 1 NO + 1 NC

Climatic Withstand : Conforming to IACS E10

Compatibility Code : LRD

Connections - Terminals : power circuit: screw clamp terminals 1 cable(s) 4-35 mm² flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible without cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² solid without cable end, power circuit: screw clamp terminals 1 cable(s) 4-50 mm² flexible without cable end, power circuit: screw clamp terminals 1 cable(s) 4-50 mm² solid without cable end

Control Type : Red Push-button: stop, blue push-button: reset

Depth : 132 mm

Dielectric Strength : 2.2 kV at 50 Hz conforming to IEC 60947-1

Flame Retardance : V1 conforming to UL 94

IP Degree Of Protection : IP20 Conforming to IEC 60529

Mechanical Robustness : vibrations: 6 Gn conforming to IEC 60068-2-6, shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7

Mounting Support : Plate, with specific accessories, rail, with specific accessories, under contactor

Network Frequency : 0...400 Hz

Network Type : DC, AC

Permissible Current : 0.06 A at 440 V DC-13 for signalling circuit, 0.12 A at 600 V AC-15 for signalling circuit

Phase Failure Sensitivity : Tripping Current 130 % of Ir on two phase, the last one at 0

Certifications : IEC, UL, CSA, CCC, EAC, ATEX INERIS, UKCA

Compatibility : LC1D115, LC1D150

Range : TeSys

Rated Operational Voltage Limits : 1000 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1

Relay Application : Motor Protection

Standards : EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, GB/T 14048.4, GB/T 14048.5, EN 50495

Tightening Torque : control circuit: 1.7 N.m - on screw clamp terminals, power circuit: 9 N.m - on screw clamp terminals

Temperature Compensation : -20-60 °C

Thermal Overload Class : Class 10A conforming to IEC 60947-4-1

Thermal Protection Adjustment Range : 80-104 A

Tripping Threshold : 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1

Weight : 0.9 kg
