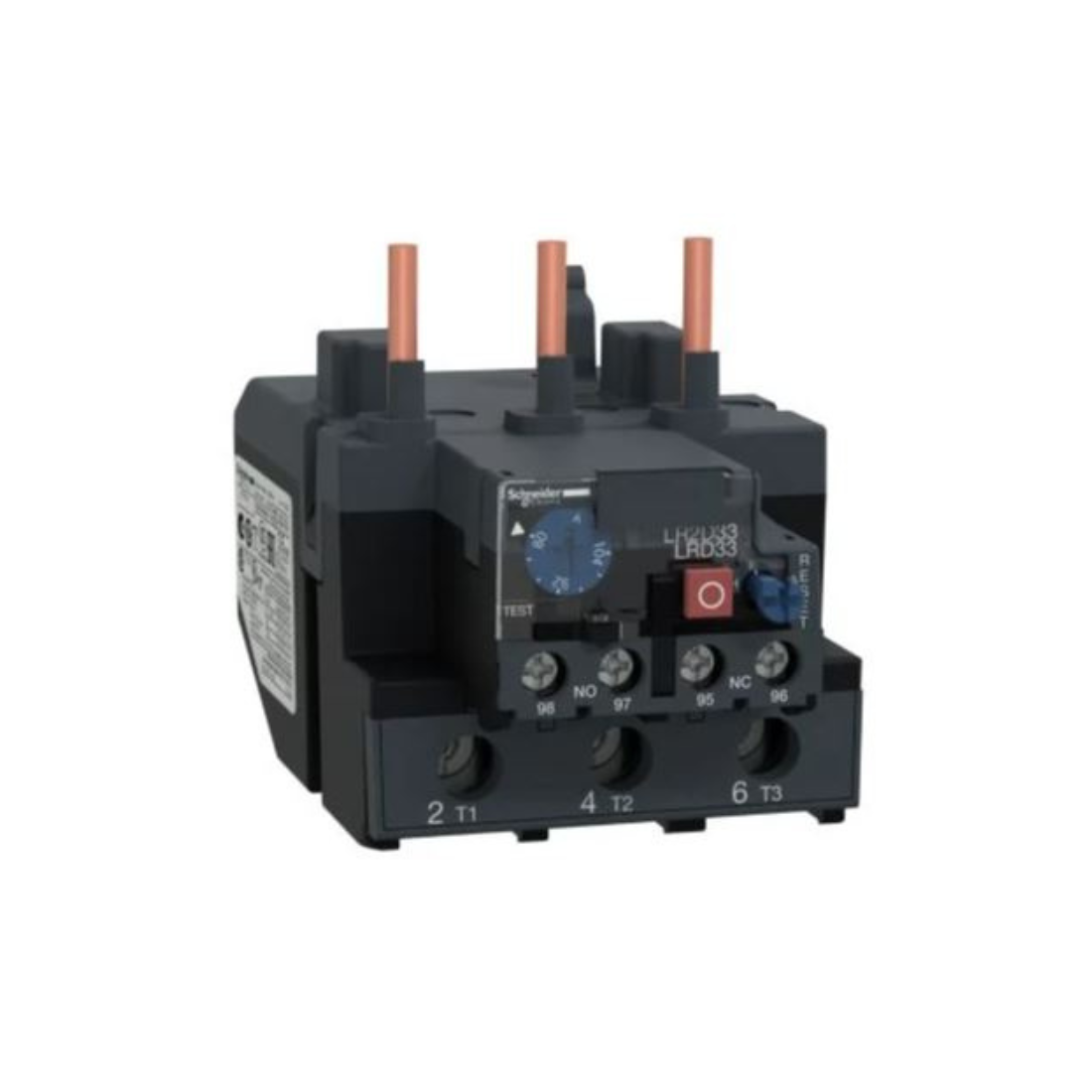

Schneider Electric TeSys LRD Thermal Overload Relays 80-104A Class 10A LRD3365

Name: Schneider Electric TeSys LRD Thermal Overload Relays 80-104A Class 10A LRD3365
Brand: Schneider Electric
Price: 318.0 AED
Availability: InStock

AED 318.00

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Thermal Overload Relays

Description

Schneider Electric LRD3365 TeSys LRD Thermal Overload Relay is a protective device used in electrical circuits to prevent the overloading of motors and other equipment. The relay works by monitoring the current flowing through a motor and, if it exceeds a set threshold for a specified period of time, it will trip and disconnect power to the motor, preventing damage.

80-104A is the range of current values that the thermal overload relay is designed to monitor and protect. In this case, it's designed for motors with a current draw between 80 and 104 amperes. Class 10A is the tripping time delay curve that the relay follows. The relay will trip if the current exceeds the specified threshold for a sustained period. For Class 10A, it will trip within 10 seconds at 600% of the full load current.

Features

80-104A Th Overload Relay
Protect motors from overloads and phase failures
Easier to install and operate with multi-standard screws

Specifications

Brand : Schneider Electric

Item Name : Thermal Overload Relays

Model : LRD3365

Conventional Free Air Thermal Current : 5 A for Signalling Circuit

Rated Insulation Voltage : power circuit: 1000 V conforming to IEC 60947-4-1, power circuit: 600 V conforming to CSA, power circuit: 600 V conforming to UL

Rated Impulse Withstand Voltage : 6 kV

Ambient Air Temperature For Operation : -20-60 °C without derating conforming to IEC 60947-4-1

Ambient Air Temperature For Storage : -60-70 °C

Associated Fuse Rating : 4 A gG for signalling circuit, 4 A BS for signalling circuit

Auxiliary Contact Composition : 1 NO + 1 NC

Climatic Withstand : Conforming to IACS E10

Compatibility Code : LRD

Connections - Terminals : power circuit: screw clamp terminals 1 cable(s) 4-35 mm² flexible without cable end, power circuit: screw clamp terminals 1 cable(s) 4-35 mm² flexible with cable end, power circuit: screw clamp terminals 1 cable(s) 4-35 mm² solid without cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible without cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² solid without cable end

Control Type : Red Push-button: stop, blue push-button: reset

Depth : 115mm

Dielectric Strength : 2.2 kV at 50 Hz conforming to IEC 60947-1

Flame Retardance : V1 conforming to UL 94

Height : 81mm

IP Degree Of Protection : IP20 Conforming to IEC 60529

Mechanical Robustness : vibrations: 6 Gn conforming to IEC 60068-2-6, shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7

Mounting Support : Plate, with specific accessories, rail, with specific accessories, under contactor

Network Frequency : 0...400 Hz

Network Type : DC, AC

Permissible Current : 0.72 A at 500 V AC-15 for signalling circuit, 0.06 A at 440 V DC-13 for signalling circuit

Phase Failure Sensitivity : Tripping Current 130 % of Ir on two phase, the last one at 0

Certifications : IEC, UL, CSA, CCC, EAC, ATEX INERIS, UKCA

Compatibility : LC1D95, LC1D80

Range : TeSys, TeSys Deca

Rated Operational Voltage Limits : 1000 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1

Relay Application : Motor Protection

Standards : EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, GB/T 14048.4, GB/T 14048.5, EN 50495

Tightening Torque : control circuit: 1.7 N.m - on screw clamp terminals, power circuit: 9 N.m - on screw clamp terminals

Width : 45 mm

Temperature Compensation : -20-60 °C

Thermal Overload Class : Class 10A conforming to IEC 60947-4-1

Thermal Protection Adjustment Range : 80-104 A

Tripping Threshold : 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1

Weight : 0.51 kg
