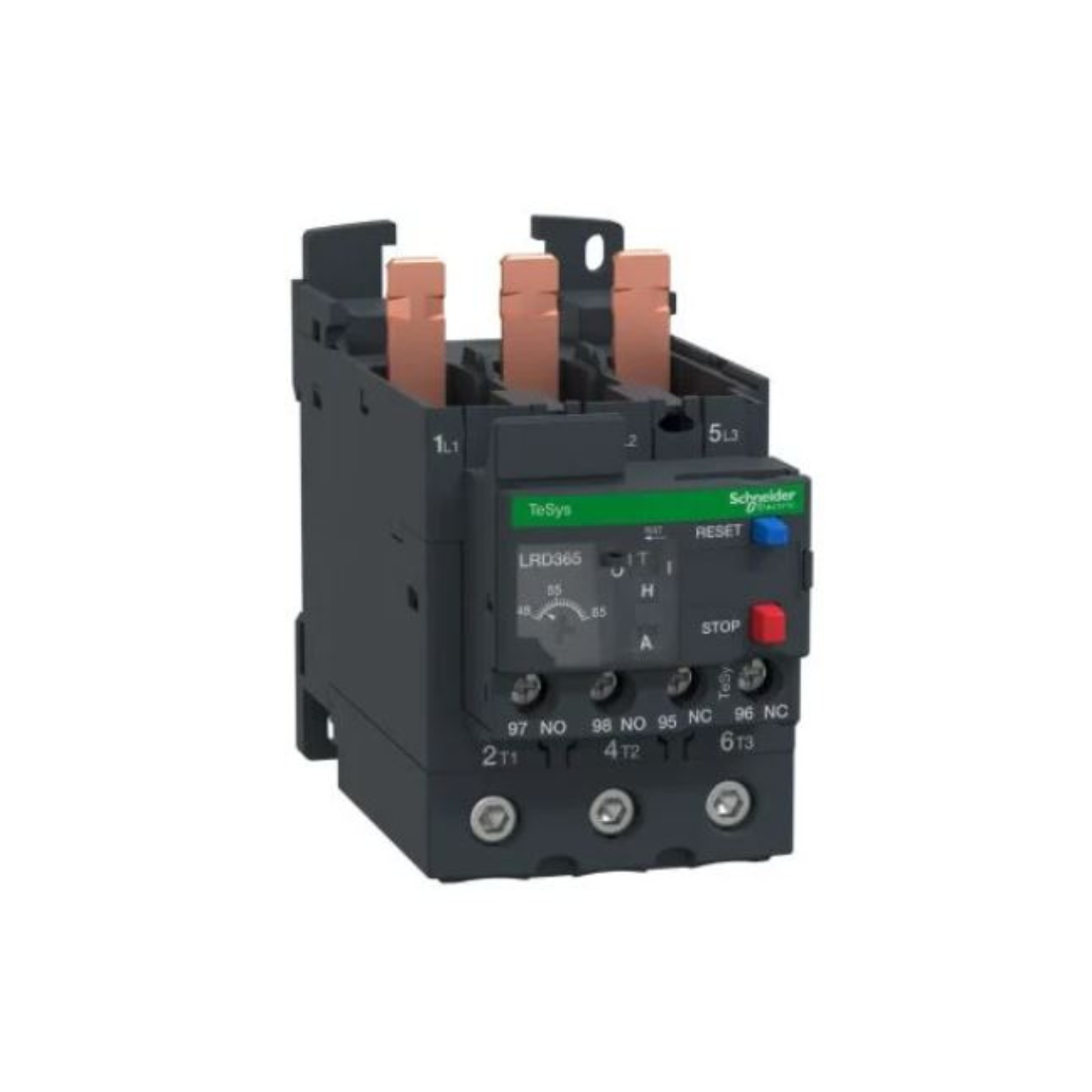

Schneider Electric TeSys LRD Thermal Overload Relays 48-65 A Class 10A LRD365

Name: Schneider Electric TeSys LRD Thermal Overload Relays 48-65 A Class 10A LRD365
Brand: Schneider Electric
Price: 163.0 AED
Availability: InStock

AED 163.00

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Thermal Overload Relays

Description

Schneider Electric LRD365 TeSys LRD Thermal Overload Relay is a protective device used in electrical circuits to protect motors from overloading. It works by monitoring the current passing through the motor and tripping if it exceeds a certain threshold for an extended period. 48-65A indicates the current range that this particular thermal overload relay is designed to handle. It means it is suitable for motors with a current draw between 48 and 65 amperes.

Class 10A is the tripping time of the relay. The relay is designed to trip when the current exceeds a threshold for a relatively short period. The exact tripping time might vary slightly based on the specific model and manufacturer, but generally, in Class 10A, the relay trips within 10 seconds when the current exceeds the specified limit.

So, in summary, Schneider Electric LRD365 TeSys LRD Thermal Overload Relay is designed to protect motors with a current draw between 48 and 65 amperes. It's set to trip relatively quickly if the current exceeds the specified limit, which is important for protecting the motor from damage due to overheating.

Features

48-65A Th Overload Relay
Used in electrical circuits to protect motors from overloading.
Easier to install and operate with multi-standard screws

Specifications

Brand : Schneider Electric

Item Name : Thermal Overload Relays

Model : LRD365

Conventional Free Air Thermal Current : 5 A for Signalling Circuit

Rated Insulation Voltage : power circuit: 600 V conforming to CSA, power circuit: 600 V conforming to UL, power circuit: 690 V conforming to IEC 60947-4-1

Rated Impulse Withstand Voltage : 6 kV

Ambient Air Temperature For Operation : -20-60 °C without derating conforming to IEC 60947-4-1

Ambient Air Temperature For Storage : -60-70 °C

Associated Fuse Rating : 4 A gG for signalling circuit, 4 A BS for signalling circuit

Auxiliary Contact Composition : 1 NO + 1 NC

Climatic Withstand : Conforming to IACS E10

Compatibility Code : LRD

Connections - Terminals : Control Circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible without cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² solid without cable end, power circuit: EverLink BTR screw connectors 1 cable(s) 1-35 mm² flexible without cable end, power circuit: EverLink BTR screw connectors 1 cable(s) 1-35 mm² flexible with cable end, power circuit: EverLink BTR screw connectors 1 cable(s) 1-35 mm² solid without cable end

Control Type : Red Push-button: stop, blue push-button: reset

Depth : 123 mm

Dielectric Strength : 1.89 kV at 50 Hz conforming to IEC 60947-1

Flame Retardance : V1 conforming to UL 94

Height : 70 mm

IP Degree Of Protection : IP20 Conforming to IEC 60529

Mechanical Robustness : Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7, vibrations: 4 gn conforming to IEC 60068-2-6

Mounting Support : Plate, with specific accessories, rail, with specific accessories, under contactor

Network Frequency : 0...400 Hz

Network Type : DC, AC

Permissible Current : 0.95 A at 380 V AC-15 for signalling circuit, 0.06 A at 440 V DC-13 for signalling circuit

Phase Failure Sensitivity : Tripping Current 130 % of Ir on two phase, the last one at 0

Certifications : IEC, UL, CSA, CCC, EAC, DNV-GL, RMRS, EU-RO MR, LROS (Lloyds register of shipping), ATEX INERIS, UKCA

Compatibility : LC1D65A, LC1D50A

Range : TeSys, TeSys Deca

Rated Operational Voltage Limits : 690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1

Relay Application : Motor Protection

Standards : EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, GB/T 14048.4, GB/T 14048.5, EN 50495

Tightening Torque : control circuit: 1.7 N.m - on screw clamp terminals, power circuit: 5 N.m - on EverLink BTR screw connectors

Width : 55 mm

Temperature Compensation : -20-60 °C

Thermal Overload Class : Class 10A conforming to IEC 60947-4-1

Thermal Protection Adjustment Range : 48-65 A

Tripping Threshold : 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1

Net Weight : 0.375 kg
