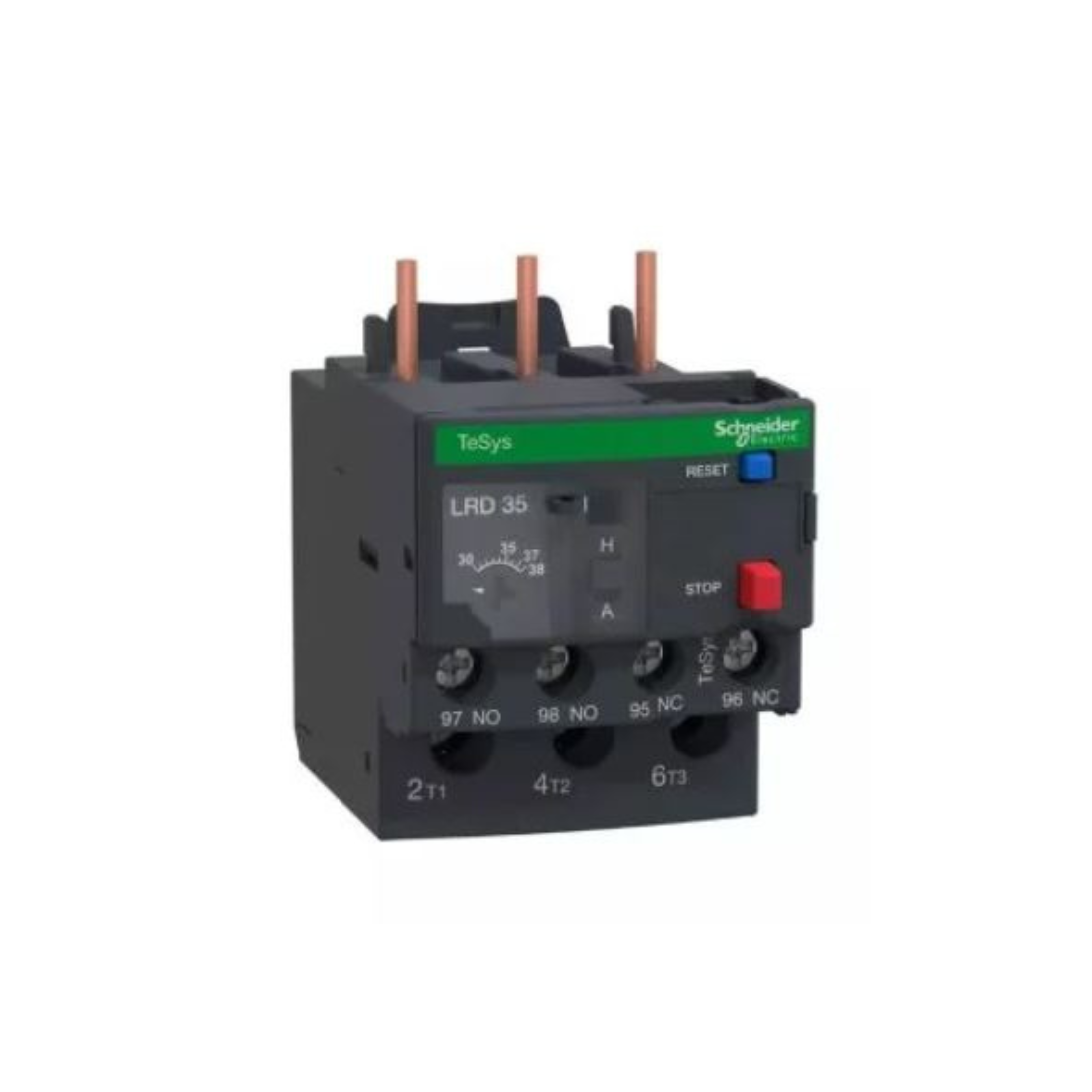

Schneider Electric TeSys LRD Thermal Overload Relays 30-38A Class 10A LRD35

Name: Schneider Electric TeSys LRD Thermal Overload Relays 30-38A Class 10A LRD35
Brand: Schneider Electric
Price: 100.0 AED
Availability: InStock

AED 100.00

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Thermal Overload Relays

Description

Schneider Electric LRD35 TeSys LRD Thermal Overload Relay is a protective device used in electrical circuits to protect motors from damage due to overloading. The thermal overload relay is designed to handle motors with a rated current between 30 and 38 amperes. It will trip if the current exceeds this range for an extended period.

Class 10A is the trip class of the thermal overload relay. The relay will trip when the motor current reaches 10 times its full load current within a specific time period. This is often used for applications where the motor is expected to start and stop frequently.

In practical terms, Schneider Electric LRD35 TeSys LRD Thermal Overload Relay is designed to protect a motor with a rated current between 30-38A, and it will trip if the current exceeds 10 times the full load current within a specific time frame.

Features

30-38A Th Overload Relay
Protect motors from overloads and phase failures
Easier to install and operate with multi-standard screws

Specifications

Brand : Schneider Electric

Item Name : Thermal Overload Relays

Model : LRD35

Package1 Length*Width*Height : 4.9 cm x 7.8 cm x 9.0 cm

Country of Manufacturing : China

Conventional Free Air Thermal Current : 5 A for Signalling Circuit

Rated Operational Voltage Limits : 690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1

Rated Insulation Voltage : power circuit: 600 V conforming to CSA, power circuit: 600 V conforming to UL, power circuit: 690 V conforming to IEC 60947-4-1

Rated Impulse Withstand Voltage : 6 kV

Ambient Air Temperature For Operation : -20-60 °C without derating conforming to IEC 60947-4-1

Ambient Air Temperature For Storage : -60-70 °C

Associated Fuse Rating : 4 A gG for signalling circuit, 4 A BS for signalling circuit

Auxiliary Contact Composition : 1 NO + 1 NC

Climatic Withstand : Conforming to IACS E10

Compatibility Code : LRD

Connections - Terminals : Control Circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible without cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² solid without cable end, power circuit: EverLink BTR screw connectors 1 cable(s) 1-35 mm² flexible without cable end, power circuit: EverLink BTR screw connectors 1 cable(s) 1-35 mm² flexible with cable end, power circuit: EverLink BTR screw connectors 1 cable(s) 1-35 mm² solid without cable end

Control Type : Red Push-button: stop, blue push-button: reset

Depth : 123 mm

Dielectric Strength : 1.89 kV at 50 Hz conforming to IEC 60947-1

Flame Retardance : V1 conforming to UL 94

Height : 66 mm

IP Degree Of Protection : IP20 Conforming to IEC 60529

Mechanical Robustness : vibrations: 6 Gn conforming to IEC 60068-2-6, shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7

Mounting Support : Plate, with specific accessories, rail, with specific accessories, under contactor

Network Frequency : 0...400 Hz

Network Type : DC, AC

Permissible Current : 1.5 A at 240 V AC-15 for signalling circuit, 0.1 A at 250 V DC-13 for signalling circuit

Phase Failure Sensitivity : Tripping Current 130 % of Ir on two phase, the last one at 0

Certifications : IEC, UL, CSA, CCC, EAC, BV, RINA, DNV-GL, LROS (Lloyds register of shipping), ATEX INERIS, UKCA

Compatibility : LC1D32, LC1D38

Range : TeSys, TeSys Deca

Rated Operational Voltage Limits : 690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1

Relay Application : Motor Protection

Standards : EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, GB/T 14048.4, GB/T 14048.5, EN 50495

Tightening Torque : control circuit: 1.7 N.m - on screw clamp terminals, power circuit: 2.5 N.m - on screw clamp terminals

Width : 45 mm

Temperature Compensation : -20-60 °C

Thermal Overload Class : Class 10A conforming to IEC 60947-4-1

Thermal Protection Adjustment Range : 30-38 A

Tripping Threshold : 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1

Weight : 140.0 g
