Schneider Electric TeSys LRD Thermal Overload Relays 17-25A Class 10A LRD325

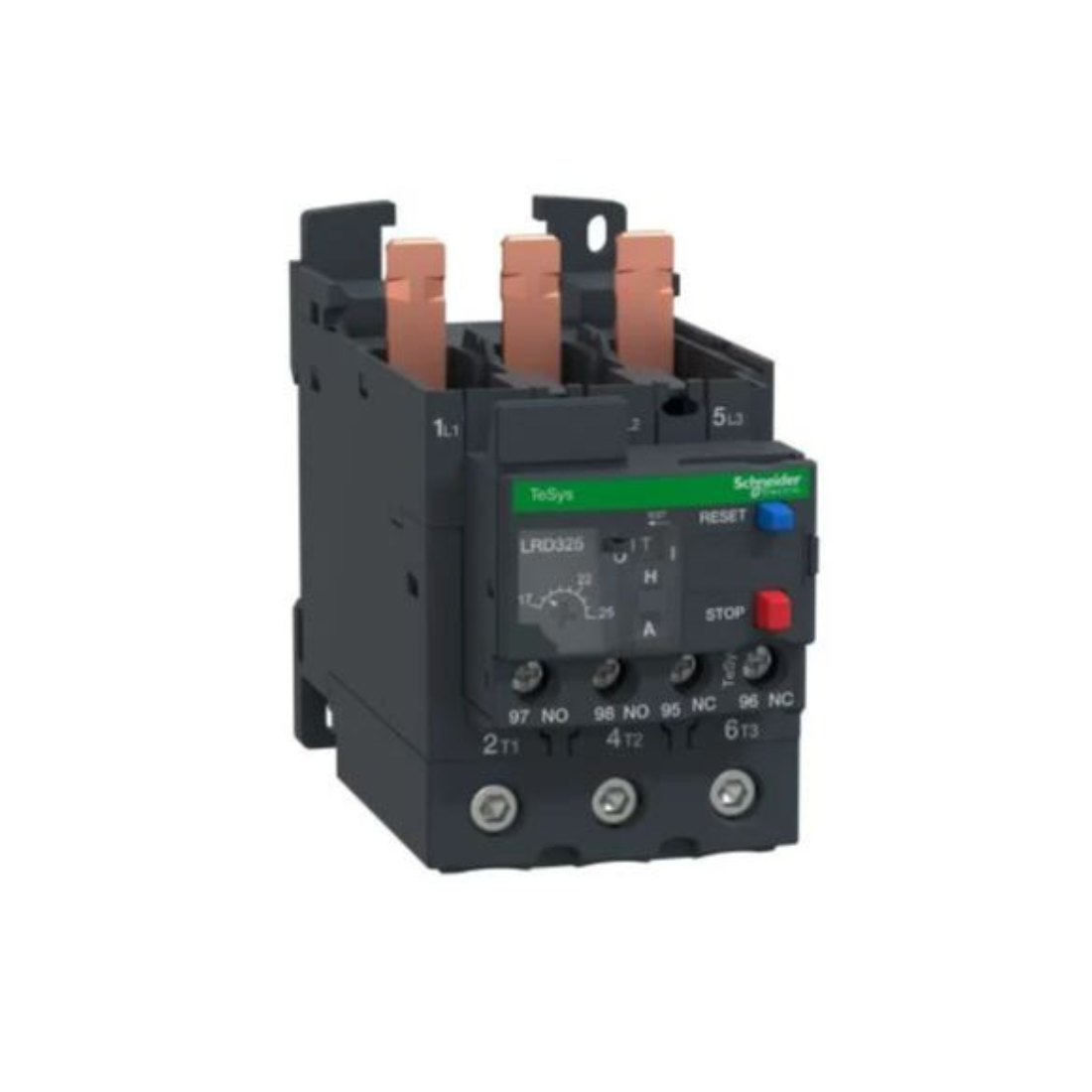

Name: Schneider Electric TeSys LRD Thermal Overload Relays 17-25A Class 10A LRD325
Brand: Schneider Electric
Price: 167.0 AED
Availability: InStock

AED 167.00

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Thermal Overload Relays

Description

Schneider Electric LRD325 TeSys LRD Thermal Overload Relay is a protective device used in electrical systems to prevent overheating of motors or other equipment. It is designed to protect electrical circuits with a current range between 17 and 25 amperes. It is important to choose a thermal overload relay that matches the current rating of the motor or equipment it is protecting.

Thermal overload relay indicates the response time of the relay to an overload condition. In this case, Class 10 indicates that the relay will trip (activate the protective mechanism) when the current exceeds the specified threshold for a relatively short period of time. Class 10A relays are designed to trip within 10 seconds when subjected to an overload condition.

Features

17-25A Th Overload Relay
Protect motors from overloads and phase failures
Easier to install and operate with multi-standard screws

Specifications

Brand : Schneider Electric

Item Name : Thermal Overload Relays

Model : LRD325

Conventional Free Air Thermal Current : 5 A for Signalling Circuit

Rated Insulation Voltage : power circuit: 600 V conforming to CSA, power circuit: 600 V conforming to UL, power circuit: 690 V conforming to IEC 60947-4-1

Rated Impulse Withstand Voltage : 6 kV

Ambient Air Temperature For Operation : -20-60 °C without derating conforming to IEC 60947-4-1

Ambient Air Temperature For Storage : -60-70 °C

Associated Fuse Rating : 4 A gG for signalling circuit, 4 A BS for signalling circuit

Auxiliary Contact Composition : 1 NO + 1 NC

Climatic Withstand : Conforming to IACS E10

Compatibility Code : LRD

Connections - Terminals : control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible without cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² solid without cable end, power circuit: EverLink BTR screw connectors 1 cable(s) 1-35 mm² flexible without cable end, power circuit: EverLink BTR screw connectors 1 cable(s) 1-35 mm² flexible with cable end, power circuit: EverLink BTR screw connectors 1 cable(s) 1-35 mm² solid without cable end

Control Type : Red Push-button: stop, blue push-button: reset

Depth : 123 mm

Dielectric Strength : 1.89 kV at 50 Hz conforming to IEC 60947-1

Flame Retardance : V1 conforming to UL 94

Height : 70 mm

IP Degree Of Protection : IP20 Conforming to IEC 60529

Mechanical Robustness : shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7, vibrations: 4 gn conforming to IEC 60068-2-6

Mounting Support : Plate, with specific accessories, rail, with specific accessories, under contactor

Network Frequency : 0...400 Hz

Network Type : DC, AC

Permissible Current : 0.95 A at 380 V AC-15 for signalling circuit, 0.06 A at 440 V DC-13 for signalling circuit

Phase Failure Sensitivity : Tripping Current 130 % of Ir on two phase, the last one at 0

Certifications : IEC, UL, CSA, CCC, EAC, DNV-GL, RMRS, EU-RO MR, LROS (Lloyds register of shipping), ATEX INERIS, UKCA

Compatibility : LC1D40A, LC1D65A, LC1D50A

Range : TeSys, TeSys Deca

Rated Operational Voltage Limits : 690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1

Relay Application : Motor Protection

Standards : EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, GB/T 14048.4, GB/T 14048.5, EN 50495

Tightening Torque : control circuit: 1.7 N.m - on screw clamp terminals, power circuit: 5 N.m - on EverLink BTR screw connectors

Width : 55 mm

Temperature Compensation : -20-60 °C

Thermal Overload Class : Class 10A conforming to IEC 60947-4-1

Thermal Protection Adjustment Range : 17-25 A

Tripping Threshold : 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1

Weight : 0.375 kg
