Schneider Electric TeSys LRD Thermal Overload Relays 17-24A Class 20 LRD22L in Dubai, UAE
Schneider Electric TeSys LRD Thermal Overload Relays 17-24A Class 20 LRD22L in Dubai, UAE

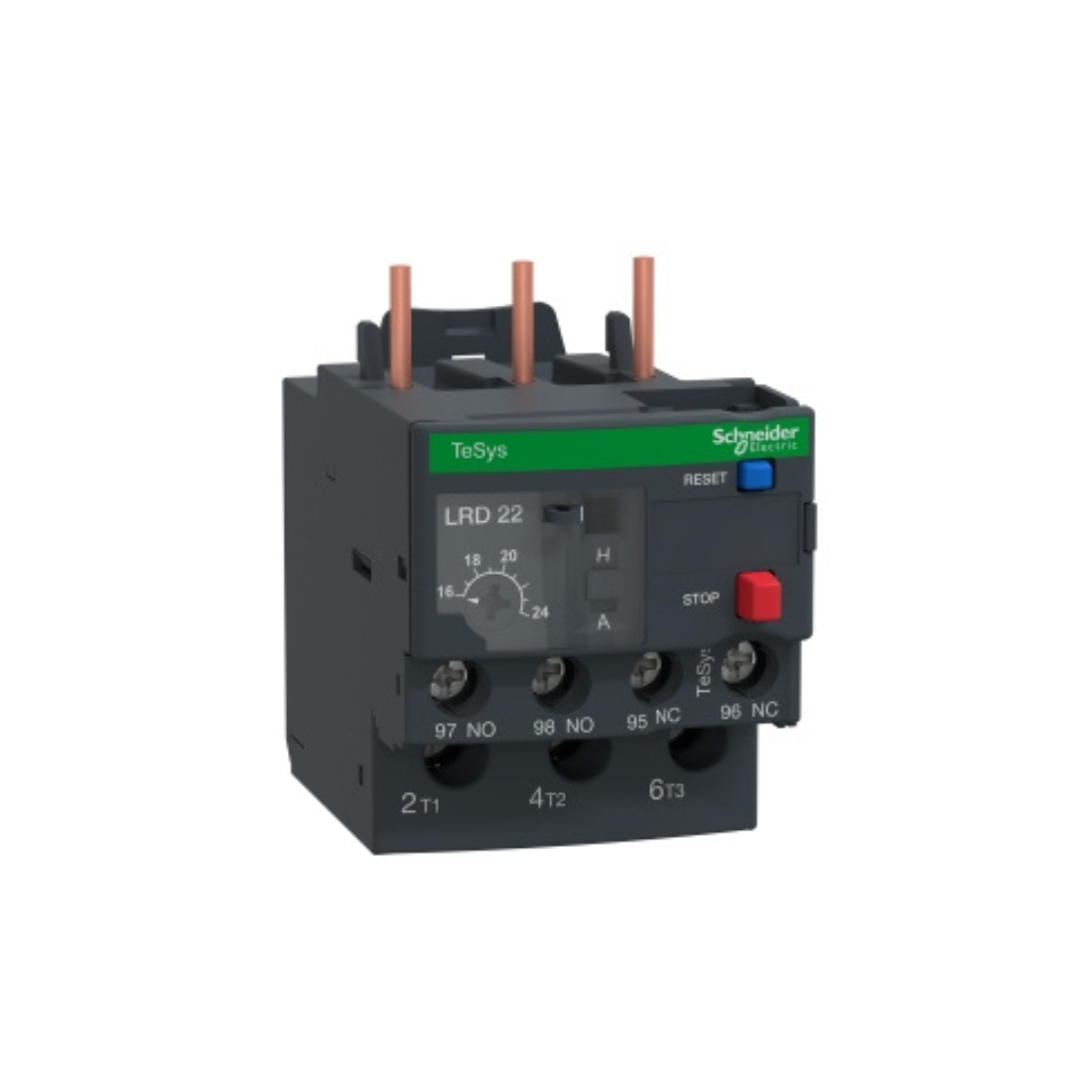

Schneider Electric TeSys LRD Thermal Overload Relays 17-24A Class 20 LRD22L

Regular price AED 286.65
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:Thermal Overload Relay
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

    Schneider Electric LRD22L TeSys D Thermal Overload Relay protects 9-11 kW motors at 400 V thanks to a thermal range of 16-24 A, trip class 20, and phase imbalance protection. LRD22L is a Schneider Electric TeSys LRD thermal overload relay for direct mounting on TeSys D contactors. With a thermal setting range of 16-24 A, trip class 20, and phase imbalance detection, it protects motors from 11 kW to 400 V.

    It has manual reset and test buttons, automatic reset, auxiliary trip contact, and flag indicator. It is available worldwide, certified to multiple standards (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Thermal overload protection relay, bimetallic type, with phase imbalance protection (differential). Mounts directly to the lower terminals of a Tesys LC1D25-D38 contactor to form a compact starter.

    Light and compact, 45 mm wide. Temperature-compensated for good protection precision. Manual control with test and reset buttons, manual/auto reset selector switch. Trip signaling with 1 NO + 1 NC auxiliary contacts and trip display. Can be completed with terminal blocks for free-standing mounting (LAD7B, LAD96) and remote control devices (LAD703, LA7D03).

    Features
    • 17-24A Th Overload Relay
    • Tesys Deca thermal overload relays are designed to protect a.c. circuits and motors against overloads.
    • New modern look & feel of all machines
    • Easier to install and operate with multi-standard screws
    • Digital customer experience for technical documents
    • Maintenance guide via EcoStruxureTM Facility Expect
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : Thermal Overload Relay

    Model : LRD22L

    Conventional Free Air Thermal Current : 5 A for signalling circuit

    Rated Operational Voltage Limits : 690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1

    Rated Insulation Voltage : power circuit: 600 V conforming to CSA, power circuit: 600 V conforming to UL, power circuit: 690 V conforming to IEC 60947-4-1

    Rated Impulse Withstand Voltage : 6 kV

    Ambient Air Temperature For Operation : -20-60 °C without derating conforming to IEC 60947-4-1

    Ambient Air Temperature For Storage : -60-70 °C

    Associated Fuse Rating : 4 A gG for signalling circuit, 4 A BS for signalling circuit

    Auxiliary Contact Composition : 1 NO + 1 NC

    Climatic Withstand : Conforming to IACS E10

    Compatibility Code : LRD

    Connections - Terminals : Control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible without cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² solid without cable end, power circuit: screw clamp terminals 1 cable(s) 1.5-10 mm² flexible without cable end, power circuit: screw clamp terminals 1 cable(s) 1-6 mm² flexible with cable end, power circuit: screw clamp terminals 1 cable(s) 1.5-10 mm² solid without cable end

    Control Type : Red Push-button: stop, blue push-button: reset

    Depth : 70 mm

    Dielectric Strength : 1.89 kV at 50 Hz conforming to IEC 60947-1

    Height : 66 mm

    IP Degree Of Protection : IP20 Conforming to IEC 60529

    Mechanical Robustness : Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7, vibrations: 3 GN conforming to IEC 60068-2-6

    Mounting Support : Plate, with specific accessories, rail, with specific accessories, under contactor

    Network Frequency : 0...400 Hz

    Network Type : DC, AC

    Permissible Current : 3 A at 120 V AC-15 for signalling circuit, 0.22 A at 125 V DC-13 for signalling circuit

    Phase Failure Sensitivity : Tripping Current 130 % of Ir on two phase, the last one at 0

    Certifications : IEC, UL, CSA, EAC, ABS, ATEX INERIS, UKCA

    Compatibility : LC1D38, LC1D25, LC1D32

    Range : TeSys, TeSys Deca

    Rated Operational Voltage Limits : 690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1

    Relay Application : Motor Protection

    Standards : EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN 50495

    Tightening Torque : Control circuit: 1.7 N.m - on screw clamp terminals, power circuit: 2.5 N.m - on screw clamp terminals

    Width : 45 mm

    Temperature Compensation : -20-60 °C

    Thermal Overload Class : Class 20 conforming to IEC 60947-4-1

    Thermal Protection Adjustment Range : 17-24 A

    Tripping Threshold : 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1

    Weight : 0.144Kg
