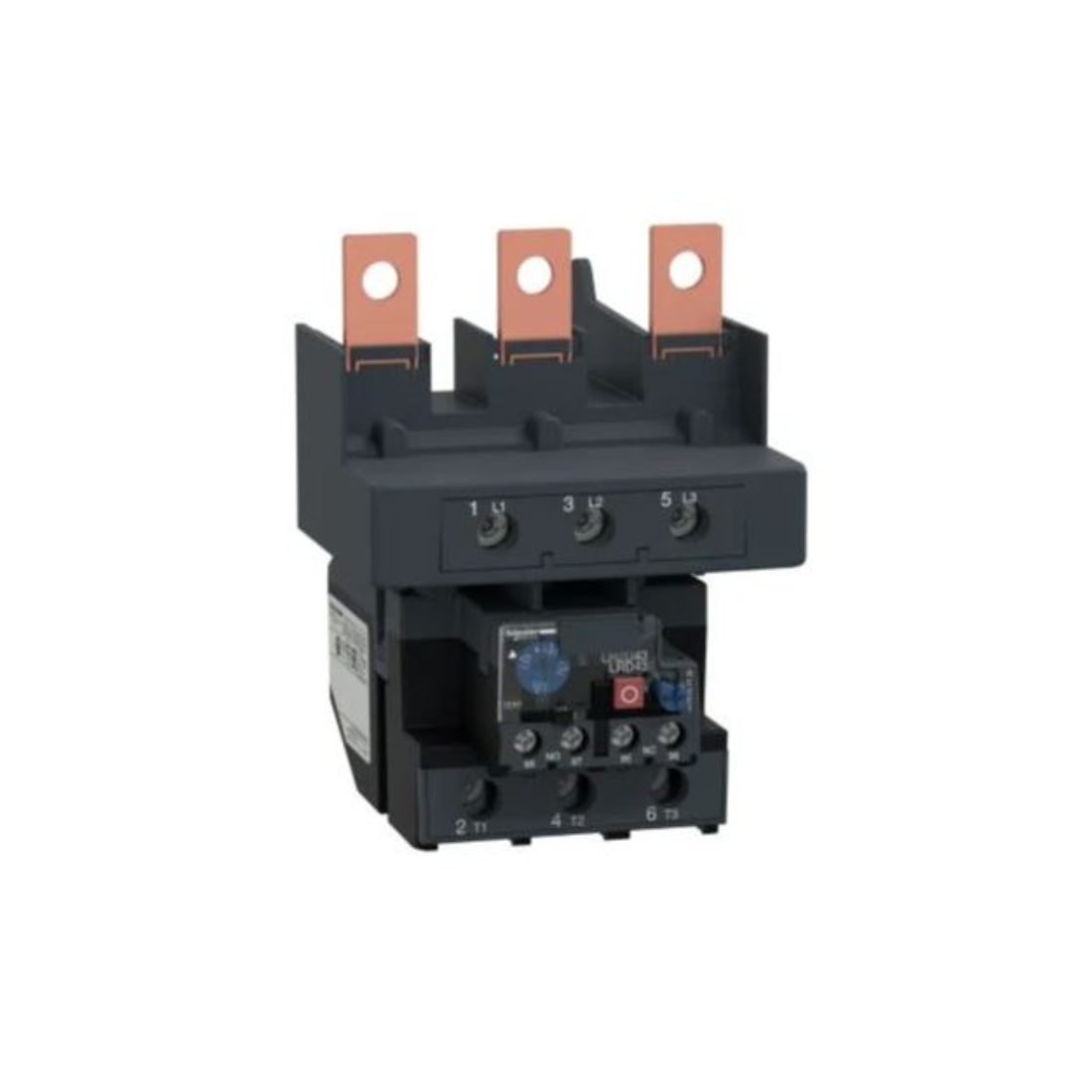

Schneider Electric TeSys LRD Thermal Overload Relays 110-140A Class 10A LRD4369

AED 607.95

(Price Includes VAT)

Delivery truck icon

Order Now & Get it by 2 days

Shop logo

Sold by: Marketplace

Free delivery inside Dubai on all orders with no order limit. Pay in 4 interest-free installments for Dubai orders using Tabby.
Cash on delivery payment method icon
Cash on Delivery
7 Days Returnable icon
7 Days Returnable
15+ Years Of Trust icon
15+ Years Of Trust
15+ Branches icon
15+ Branches
Quantity

Brand : Schneider Electric

Type : Thermal Overload Relays

Collections

Description

Schneider Electric LRD4369 TeSys LRD Thermal Overload Relay is a protective device used in electrical circuits to prevent motors or other components from overheating. 110-140A is the current range the relay is designed for. This means it is suitable for motors or loads with a current draw between 110 and 140 amps. The term Class 10A refers to the trip class of the thermal overload relay. Trip classes define the time required for the relay to trip at a specific overload current. Class 10A means that the relay will trip within 10 seconds when exposed to a current six times the rated current.

Schneider Electric LRD4369 TeSys LRD Thermal Overload Relay is used in applications where the motor or device to be protected has a normal operating current within the specified range and a relatively quick response to overloads is desired.

Features
  • 110-140A Th Overload Relay
  • Protect motors from overloads and phase failures
  • Connection by screw clamp terminals
Specifications
Brand Schneider Electric
Item Name Thermal Overload Relays
Model LRD4369
Conventional Free Air Thermal Current 5 A for Signalling Circuit
Rated Insulation Voltage Power Circuit: 1000 V conforming to IEC 60947-4-1
Rated Impulse Withstand Voltage 6 kV conforming to IEC 60947-1
Ambient Air Temperature For Operation -20-60 °C without derating conforming to IEC 60947-4-1
Ambient Air Temperature For Storage -60-70 °C
Associated Fuse Rating 4 A gG for signalling circuit, 4 A BS for signalling circuit
Auxiliary Contact Composition 1 NO + 1 NC
Climatic Withstand Conforming to IACS E10
Compatibility Code LRD
Connections - Terminals Power Circuit: screw clamp terminals 1 cable(s) 4-35 mm² flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible without cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² solid without cable end, power circuit: screw clamp terminals 1 cable(s) 4-50 mm² flexible without cable end, power circuit: screw clamp terminals 1 cable(s) 4-50 mm² solid without cable end
Control Type Red Push-button: stop, blue push-button: reset
Depth 132mm
Dielectric Strength 2.2 kV at 50 Hz conforming to IEC 60947-1
Flame Retardance V1 conforming to UL 94
Height 81mm
IP Degree Of Protection IP20 Conforming to IEC 60529
Mechanical Robustness vibrations: 6 Gn conforming to IEC 60068-2-6, shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7
Mounting Support Plate, with specific accessories, rail, with specific accessories, under contactor
Network Frequency 0...400 Hz
Network Type DC, AC
Permissible Current 0.06 A at 440 V DC-13 for signalling circuit, 0.12 A at 600 V AC-15 for signalling circuit
Phase Failure Sensitivity Tripping current 130 % of Ir on two phase, the last one at 0
Certifications IEC, CCC, EAC, ATEX INERIS
Range TeSys, TeSys Deca
Rated Operational Voltage Limits 1000 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1
Relay Application Motor Protection
Standards EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.4, GB/T 14048.5, EN 50495
Tightening Torque control circuit: 1.7 N.m - on screw clamp terminals, power circuit: 9 N.m - on screw clamp terminals
Width 70 mm
Temperature Compensation -20-60 °C
Thermal Overload Class Class 10A conforming to IEC 60947-4-1
Thermal Protection Adjustment Range 110-140 A
Tripping Threshold 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
Compatibility LC1D150
Weight 0.9 kg
