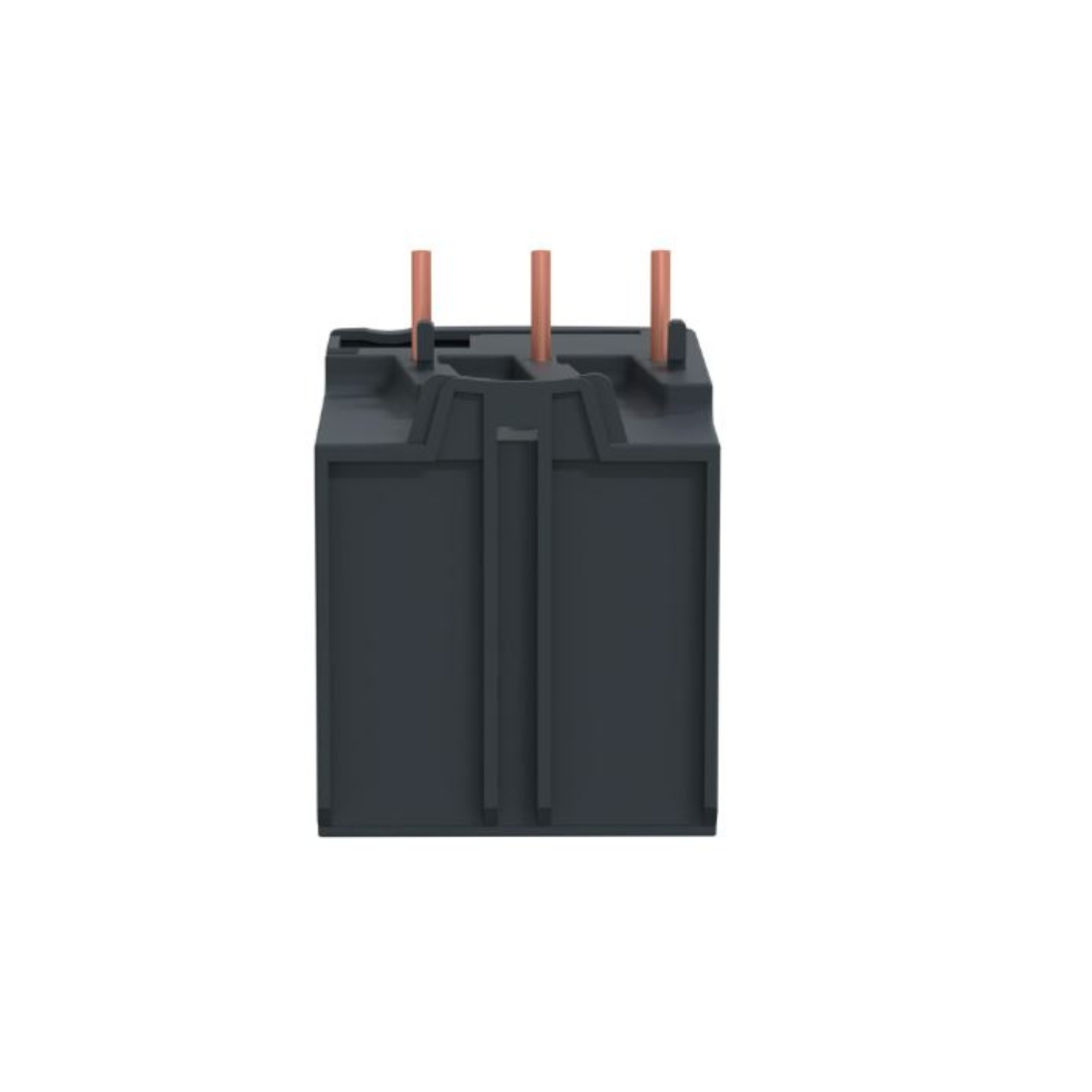

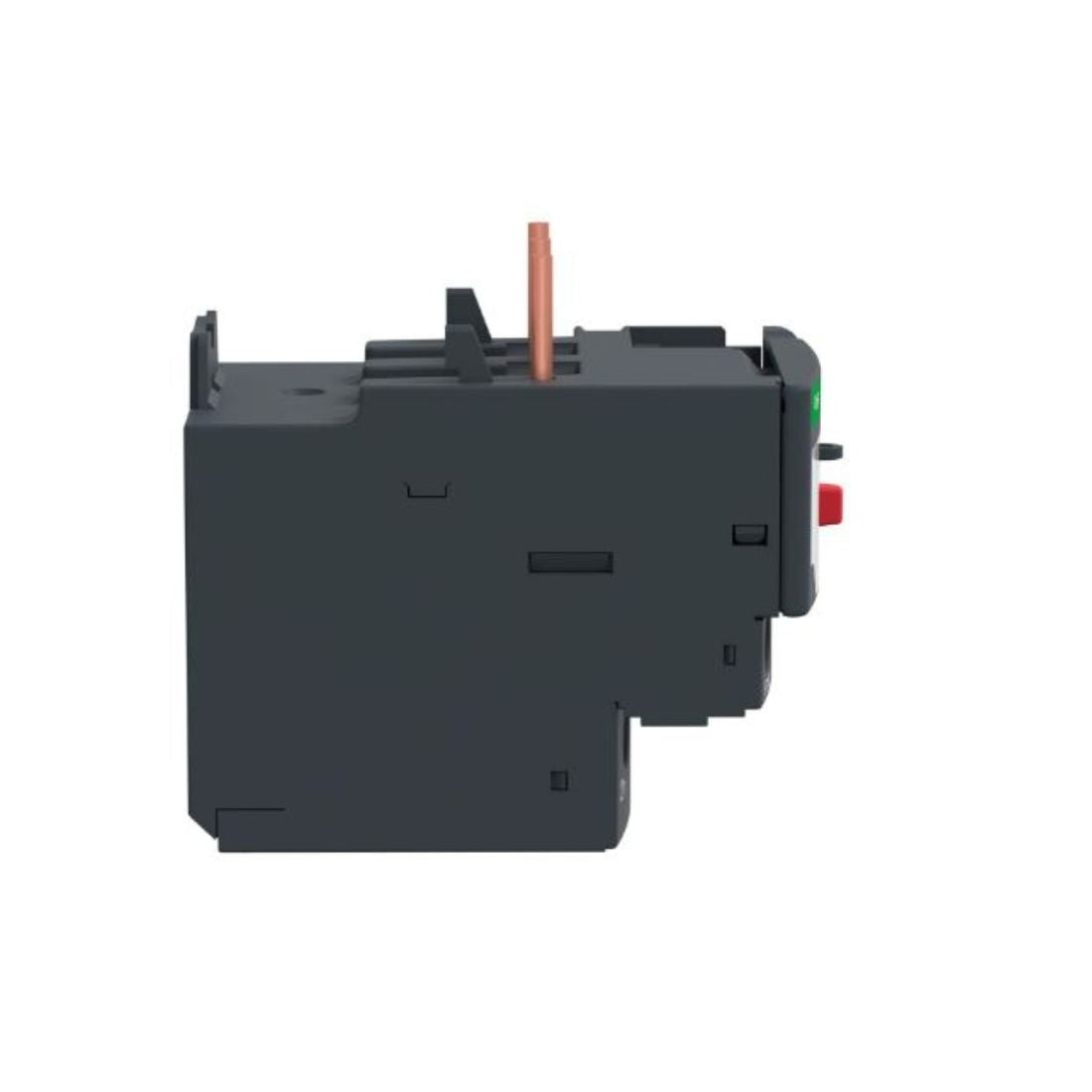

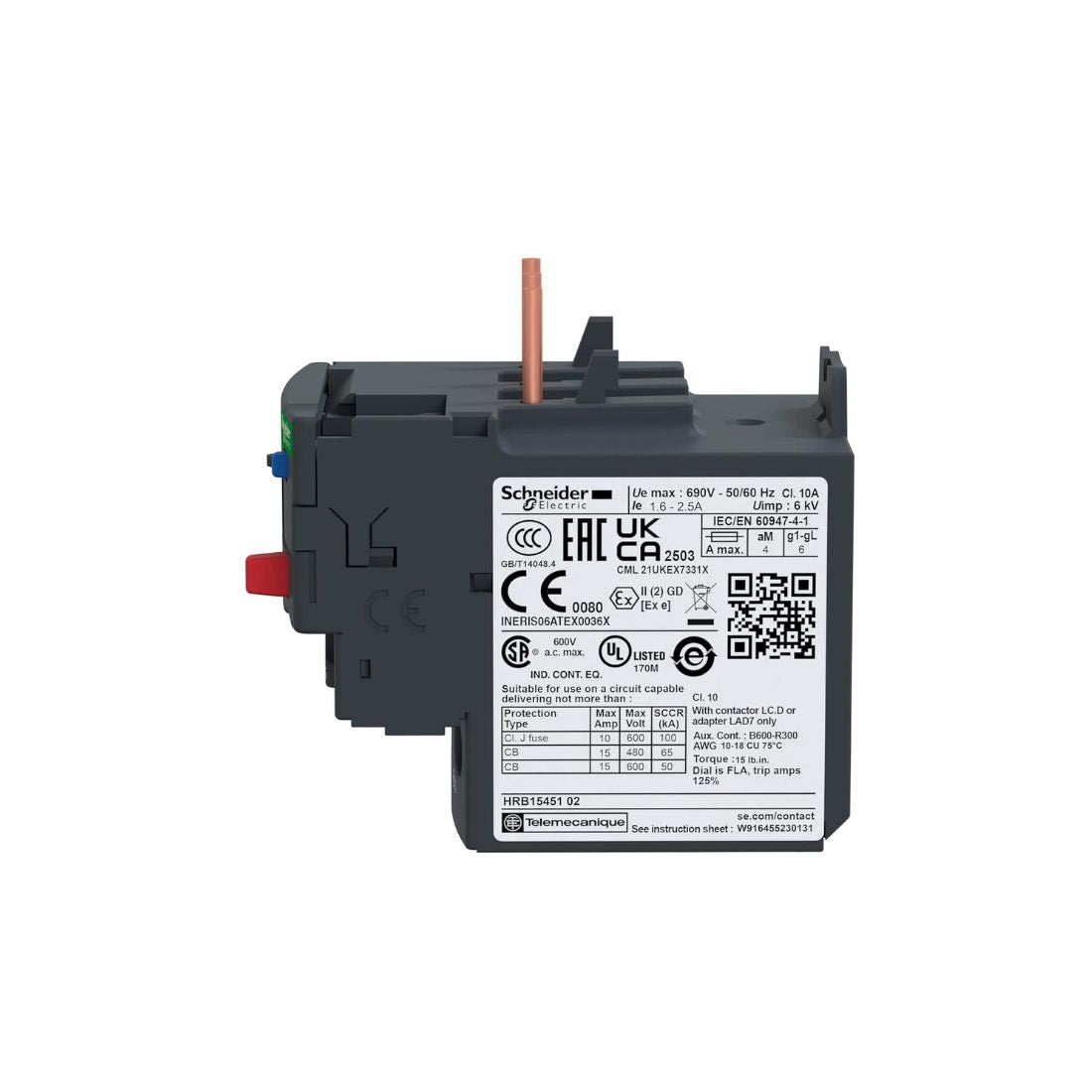

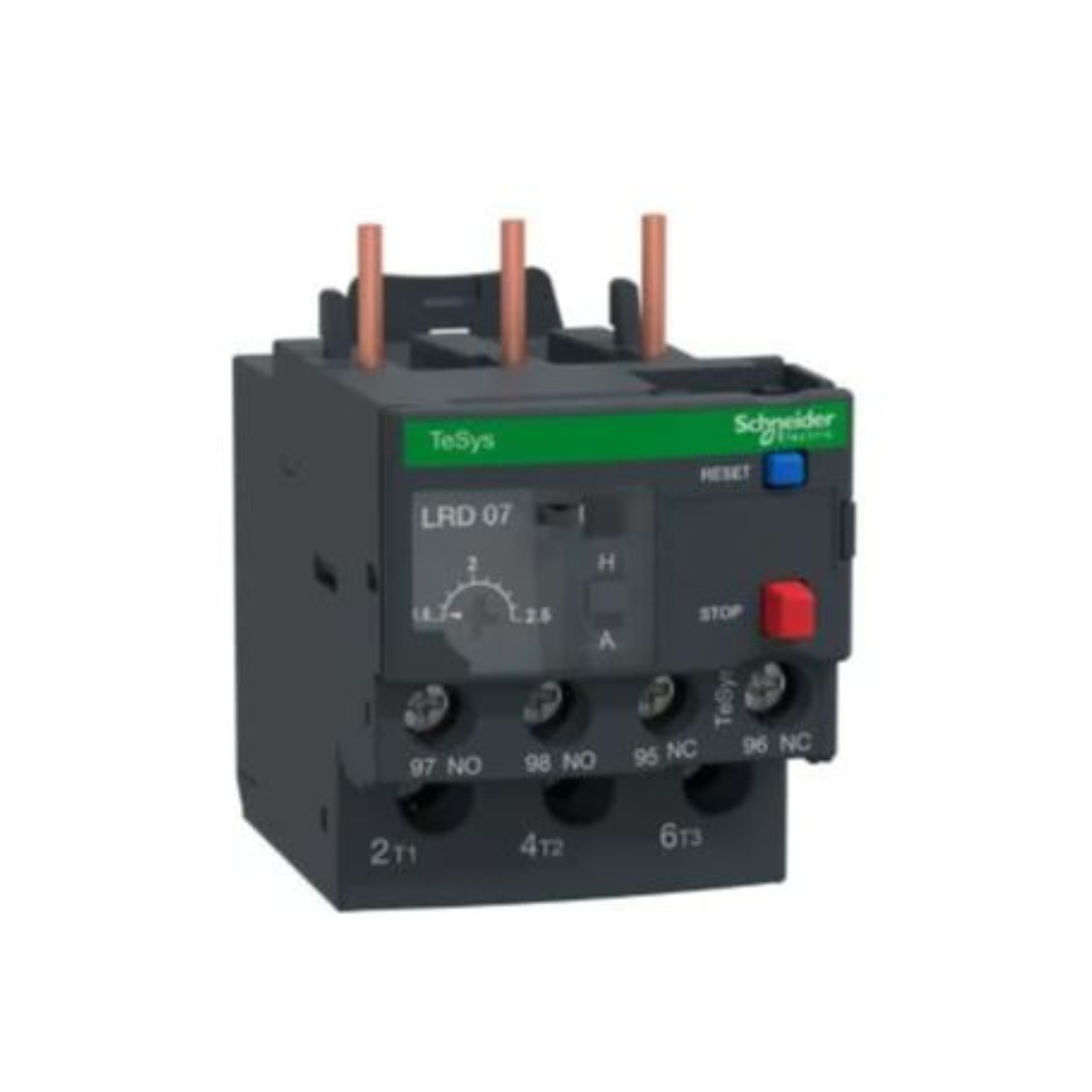

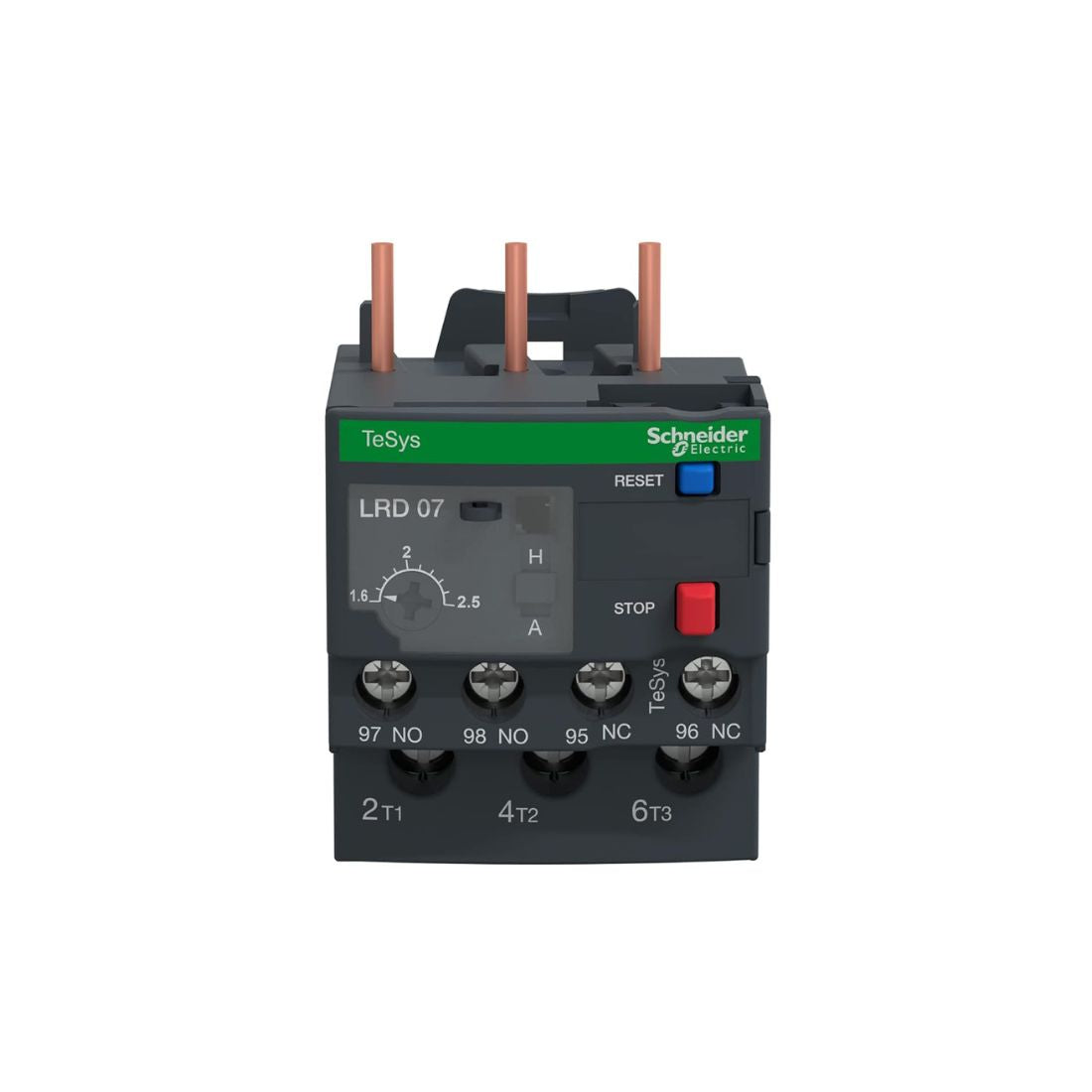

Schneider Electric TeSys LRD Thermal Overload Relays 1.6-2.5A Class 10A LRD07
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Thermal Overload Relays
Description
Schneider Electric LRD07 TeSys LRD Thermal Overload Relay is a protective device used in electrical systems to prevent motors from drawing excessive current and overheating. 1.6-2.5A is the current setting of the thermal overload relay. It means that the relay is designed to protect a motor that draws between 1.6 and 2.5 amperes of current.
If the current exceeds this range for an extended period, the relay will trip and disconnect the motor from the power supply. Class 10A is the tripping class of the thermal overload relay. The tripping class defines the response time of the relay under different overload conditions. Class 10A means that the relay will trip in approximately 10 seconds when subjected to an overload condition that is 7 to 10 times the full load current.
Overall, Schneider Electric LRD07 TeSys LRD Thermal Overload Relays are suitable for protecting a motor that has a rated current between 1.6A and 2.5A, and it will respond relatively quickly (within 10 seconds) to severe overloads.
Features
- 1.6-2.5A Th Overload Relay
- Prevent motors from drawing excessive current and overheating
- Easier to install and operate with multi-standard screws
| Brand | Schneider Electric |
| Item Name | Thermal Overload Relays |
| Model | LRD07 |
| Conventional Free Air Thermal Current | 5 A for signalling circuit |
| Rated Insulation Voltage | power circuit: 600 V conforming to CSA, power circuit: 600 V conforming to UL, power circuit: 690 V conforming to IEC 60947-4-1 |
| Rated Impulse Withstand Voltage | 6 kV |
| Ambient Air Temperature For Operation | -20-60 °C without derating conforming to IEC 60947-4-1 |
| Ambient Air Temperature For Storage | -60-70 °C |
| Associated Fuse Rating | 4 A gG for signalling circuit, 4 A BS for signalling circuit |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Climatic Withstand | Conforming to IACS E10 |
| Compatibility Code | LRD |
| Connections - Terminals | control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible without cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² solid without cable end, power circuit: screw clamp terminals 1 cable(s) 1.5-10 mm² flexible without cable end, power circuit: screw clamp terminals 1 cable(s) 1-4 mm² flexible with cable end, power circuit: screw clamp terminals 1 cable(s) 1-6 mm² solid without cable end |
| Control Type | Red Push-button: stop, blue push-button: reset |
| Depth | 70 mm |
| Dielectric Strength | 1.89 kV at 50 Hz conforming to IEC 60947-1 |
| Flame Retardance | V1 conforming to UL 94 |
| Height | 66 mm |
| IP Degree Of Protection | IP20 Conforming to IEC 60529 |
| Mechanical Robustness | Vibrations: 6 Gn conforming to IEC 60068-2-6, shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7 |
| Mounting Support | Plate, with specific accessories, rail, with specific accessories, under contactor |
| Network Frequency | 0...400 Hz |
| Network Type | DC, AC |
| Permissible Current | 3 A at 120 V AC-15 for signalling circuit, 0.22 A at 125 V DC-13 for signalling circuit |
| Phase Failure Sensitivity Tripping Current | 130 % of Ir on two phase, the last one at 0 |
| Certifications | IEC, UL, CSA, CCC, EAC, BV, RINA, DNV-GL, LROS (Lloyds register of shipping), ATEX INERIS, UKCA |
| Compatibility | LC1D18, LC1D38, LC1D32, LC1D25, LC1D12, LC1D09 |
| Range | TeSys, TeSys Deca |
| Rated Operational Voltage Limits | 690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1 |
| Relay Application | Motor Protection |
| Standards | EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, GB/T 14048.4, GB/T 14048.5, EN 50495 |
| Tightening Torque | control circuit: 1.7 N.m - on screw clamp terminals, power circuit: 1.7 N.m - on screw clamp terminals |
| Width | 45 mm |
| Temperature Compensation | -20-60 °C |
| Thermal Overload Class | Class 10A conforming to IEC 60947-4-1 |
| Thermal Protection Adjustment Range | 1.6-2.5 A |
| Tripping Threshold | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 |
| Net Weight | 0.124 kg |
