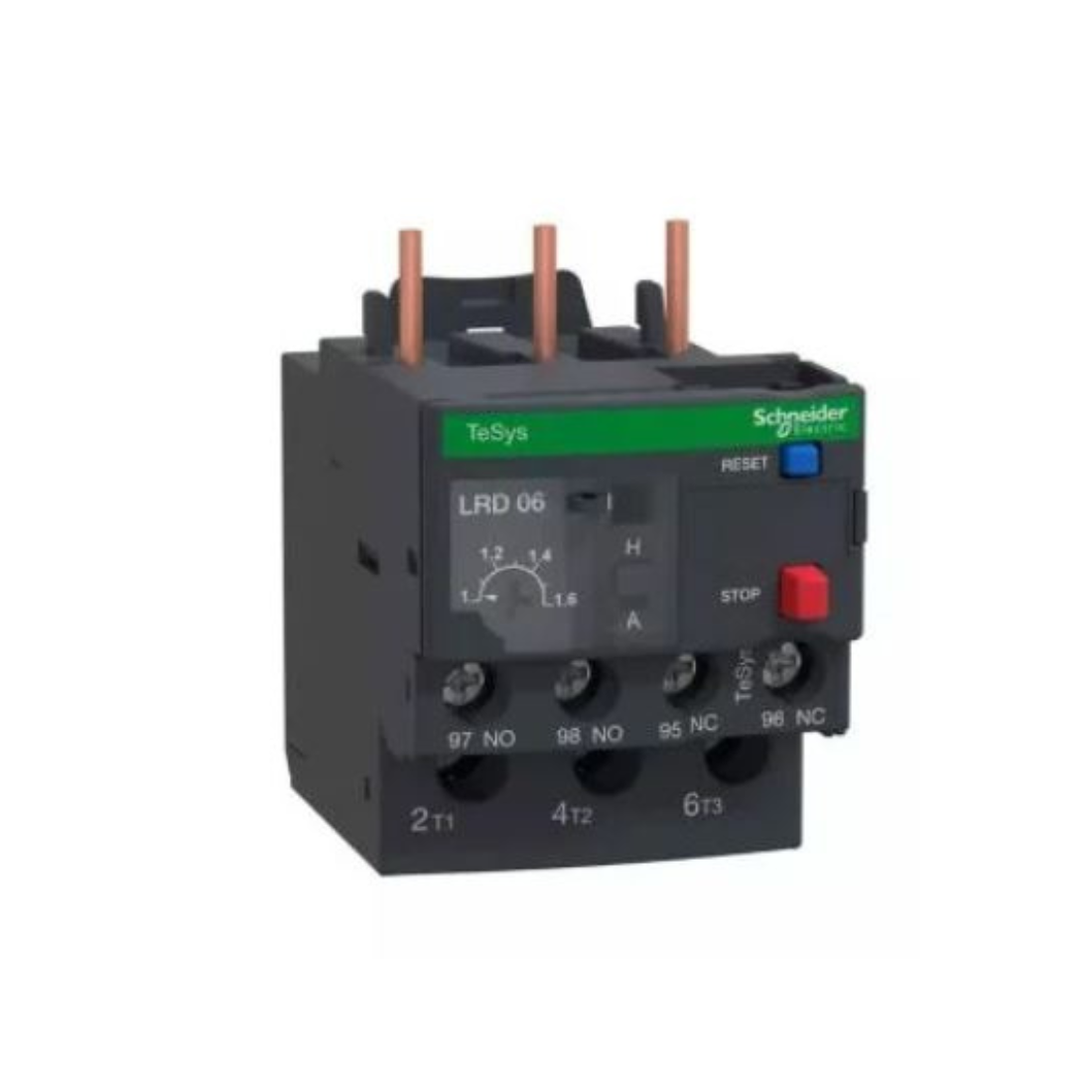

Schneider Electric TeSys LRD Thermal Overload Relays 1-1.6A Class 10A LRD06

Regular price AED 63.00
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:Thermal Overload Relays
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

    Schneider Electric LRD06 TeSys LRD Thermal Overload Relay is a protective device used in electrical circuits to prevent the overloading of motors and other electrical equipment. 1-1.6A is the range of current that the thermal overload relay is designed to monitor and protect against overloading. In this case, the relay is designed to work within a range of 1 to 1.6 amperes.

    Class 10A is the class of a thermal overload relay that refers to the trip time curve that determines how quickly the relay will respond to an overload condition. In this case, Class 10A means that the relay will trip within a specific time frame when the current exceeds a certain threshold. The "A" in Class 10A indicates a more sensitive and quicker response compared to, say, Class 10 or Class 20.

    In practical terms, Schneider Electric LRD06 TeSys LRD Thermal Overload Relay is suitable for protecting electrical equipment with a rated current draw between 1A and 1.6A. It would trip relatively quickly in the event of an overload condition, providing protection for the connected equipment.

    Features
    • 1-1.6A Overload Relay
    • Prevent the overloading of motors
    • Easier to install and operate with multi-standard screws
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : Thermal Overload Relays

    Model : LRD06

    Conventional Free Air Thermal Current : 5 A for signalling circuit

    Rated Insulation Voltage : power circuit: 600 V conforming to CSA, power circuit: 600 V conforming to UL, power circuit: 690 V conforming to IEC 60947-4-1

    Rated Impulse Withstand Voltage : 6 kV

    Ambient Air Temperature For Operation : -20-60 °C without derating conforming to IEC 60947-4-1

    Ambient Air Temperature For Storage : -60-70 °C

    Associated Fuse Rating : 4 A gG for signalling circuit, 4 A BS for signalling circuit

    Auxiliary Contact Composition : 1 NO + 1 NC

    Climatic Withstand : Conforming to IACS E10

    Compatibility Code : LRD

    Connections - Terminals : Control Circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible without cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² solid without cable end, power circuit: screw clamp terminals 1 cable(s) 1.5-10 mm² flexible without cable end, power circuit: screw clamp terminals 1 cable(s) 1-4 mm² flexible with cable end, power circuit: screw clamp terminals 1 cable(s) 1-6 mm² solid without cable end

    Control Type : Red Push-button: stop, blue push-button: reset

    Depth : 70 mm

    Dielectric Strength : 1.89 kV at 50 Hz conforming to IEC 60947-1

    Flame Retardance : V1 conforming to UL 94

    Height : 66 mm

    IP Degree Of Protection : IP20 Conforming to IEC 60529

    Mechanical Robustness : Vibrations: 6 Gn conforming to IEC 60068-2-6, shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7

    Mounting Support : Plate, with specific accessories, rail, with specific accessories, under contactor

    Network Frequency : 0...400 Hz

    Network Type : DC, AC

    Permissible Current : 3 A at 120 V AC-15 for signalling circuit, 0.22 A at 125 V DC-13 for signalling circuit

    Phase Failure Sensitivity : Tripping Current 130 % of Ir on two phase, the last one at 0

    Certifications : IEC, UL, CSA, CCC, EAC, BV, RINA, DNV-GL, LROS (Lloyds register of shipping), ATEX INERIS, UKCA

    Compatibility : LC1D25, LC1D32, LC1D12, LC1D18, LC1D38, LC1D09

    Range : TeSys, TeSys Deca

    Rated Operational Voltage Limits : 690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1

    Relay Application : Motor Protection

    Standards : EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, GB/T 14048.4, GB/T 14048.5, EN 50495

    Tightening Torque : control circuit: 1.7 N.m - on screw clamp terminals, power circuit: 1.7 N.m - on screw clamp terminals

    Width : 45 mm

    Temperature Compensation : -20-60 °C

    Thermal Overload Class : Class 10A conforming to IEC 60947-4-1

    Thermal Protection Adjustment Range : 1-1.6 A

    Tripping Threshold : 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1

    Weight : 141.9 g
