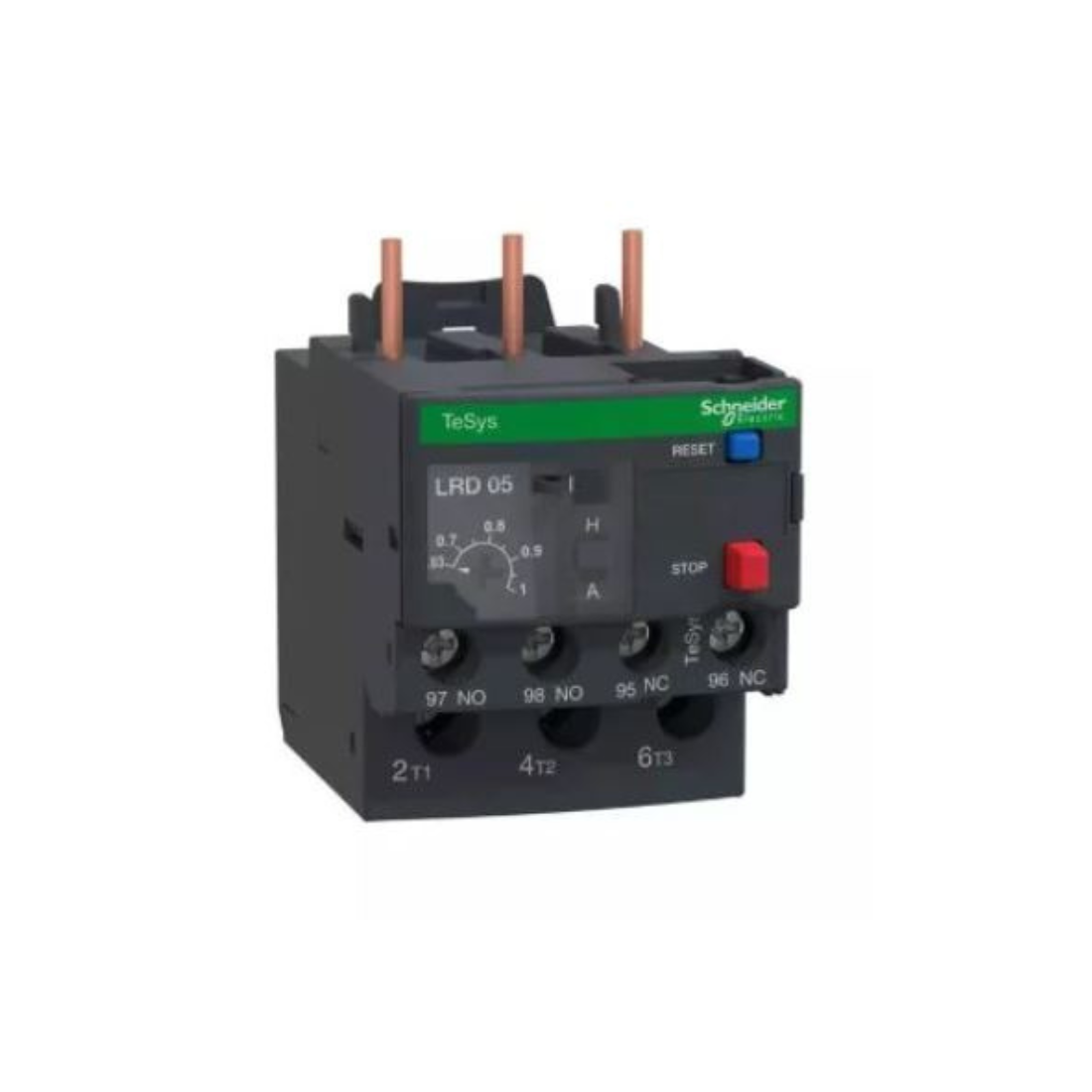

Schneider Electric TeSys LRD Thermal Overload Relays 0.63-1A Class 10A LRD05
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Thermal Overload Relays
Description
Schneider Electric LRD05 TeSys LRD Thermal Overload Relay is a protective device used in electrical circuits to protect motors from damage due to overcurrent conditions. 0.63-1A is the adjustable current range at which the thermal overload relay will trip and provide protection.
The relay is designed to protect motors with a current range between 0.63 Amperes and 1 Ampere. Class 10A is the rating of a thermal overload relay refers to the tripping time characteristics. Class 10A is a specific characteristic that corresponds to a relatively fast tripping time. In this case, Class 10A means that the relay is designed to trip within a relatively short time period when the current exceeds the set threshold.
In summary, Schneider Electric LRD05 TeSys LRD Thermal Overload Relay is designed to protect motors with a current rating between 0.63A and 1A, and it has a tripping characteristic of Class 10A, which means it will respond relatively quickly to overcurrent conditions.
Features
- 0.63-1A Th Overload Relay
- Protect motors from damage due to overcurrent conditions
- Easier to install and operate with multi-standard screws
| Brand | Schneider Electric |
| Item Name | Thermal Overload Relays |
| Model | LRD05 |
| Package1 Length*Width*Height | 8.9 cm x 7.8 cm x 5.0 cm |
| Conventional Free Air Thermal Current | 5 A for signalling circuit |
| Country of Manufacturing | France |
| Rated Operational Voltage | 690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1 |
| Rated Insulation Voltage | power circuit: 600 V conforming to CSA, power circuit: 600 V conforming to UL, power circuit: 690 V conforming to IEC 60947-4-1 |
| Rated Impulse Withstand Voltage | 6 kV |
| Ambient Air Temperature For Operation | -20-60 °C without derating conforming to IEC 60947-4-1 |
| Ambient Air Temperature For Storage | -60-70 °C |
| Associated Fuse Rating | 4 A gG for signalling circuit, 4 A BS for signalling circuit |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Climatic Withstand | Conforming to IACS E10 |
| Compatibility Code | LRD |
| Connections - Terminals | control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible without cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² solid without cable end, power circuit: screw clamp terminals 1 cable(s) 1.5-10 mm² flexible without cable end, power circuit: screw clamp terminals 1 cable(s) 1-4 mm² flexible with cable end, power circuit: screw clamp terminals 1 cable(s) 1-6 mm² solid without cable end |
| Control Type | Red Push-button: stop, blue push-button: reset |
| Depth | 70 mm |
| Dielectric Strength | 1.89 kV at 50 Hz conforming to IEC 60947-1 |
| Flame Retardance | V1 conforming to UL 94 |
| Height | 66 mm |
| IP Degree Of Protection | IP20 Conforming to IEC 60529 |
| Mechanical Robustness | Vibrations: 6 Gn conforming to IEC 60068-2-6, shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7 |
| Mounting Support | Plate, with specific accessories, rail, with specific accessories, under contactor |
| Network Frequency | 0...400 Hz |
| Network Type | DC, AC |
| Permissible Current | 3 A at 120 V AC-15 for signalling circuit, 0.22 A at 125 V DC-13 for signalling circuit |
| Phase Failure Sensitivity Tripping Current | 130 % of Ir on two phase, the last one at 0 |
| Certifications | IEC, UL, CSA, CCC, EAC, BV, RINA, DNV-GL, LROS (Lloyds register of shipping), ATEX INERIS, UKCA |
| Compatibility | LC1D18, LC1D38, LC1D32, LC1D25, LC1D12, LC1D09 |
| Range | TeSys, TeSys Deca |
| Rated Operational Voltage Limits | 690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1 |
| Relay Application | Motor Protection |
| Standards | EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, GB/T 14048.4, GB/T 14048.5, EN 50495 |
| Tightening Torque | control circuit: 1.7 N.m - on screw clamp terminals, power circuit: 1.7 N.m - on screw clamp terminals |
| Width | 45 mm |
| Temperature Compensation | -20-60 °C |
| Thermal Overload Class | Class 10A conforming to IEC 60947-4-1 |
| Thermal Protection Adjustment Range | 0.63-1 A |
| Tripping Threshold | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 |
| Net Weight | 139.0 g |
