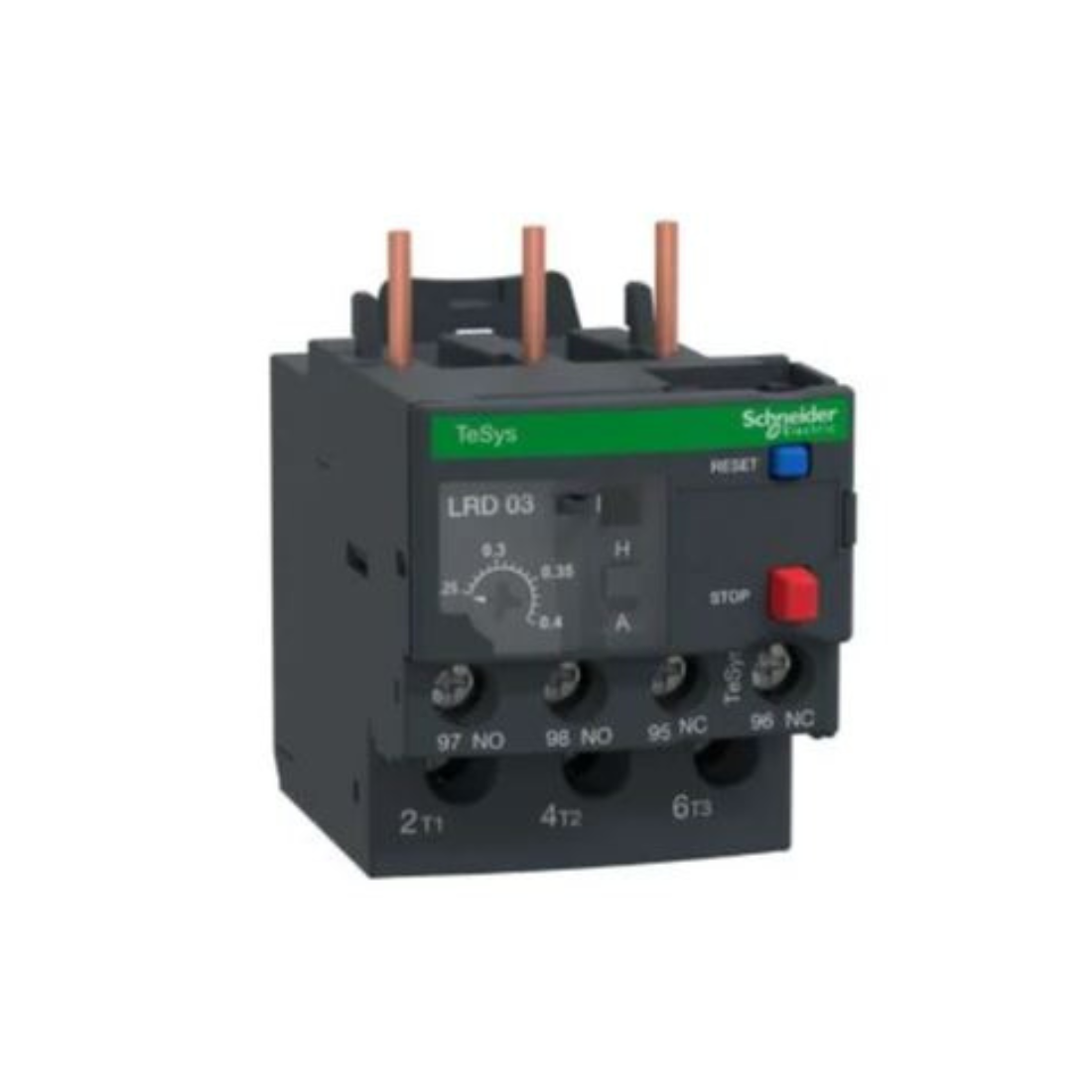

Schneider Electric TeSys LRD Thermal Overload Relays 0.25-0.4A Class 10A LRD03

Name: Schneider Electric TeSys LRD Thermal Overload Relays 0.25-0.4A Class 10A LRD03
Brand: Schneider Electric
Price: 63.0 AED
Availability: InStock

AED 63.00

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Thermal Overload Relays

Description

Schneider Electric LRD03 TeSys LRD Thermal Overload Relay is a protective device used in electrical systems to prevent motors or other equipment from overheating and potentially causing damage or fire hazards. It works by monitoring the current passing through an engine and tripping if it exceeds a predetermined level for a specified period of time. It is designed to operate in a range of 0.25 to 0.4 amperes (A). This means it's suitable for protecting equipment that operates within this current range.

Class 10A is the tripping time characteristic of the relay. It is a specific tripping class defined by standards. It means the relay will trip within a certain time frame when the current exceeds a certain percentage of its rated current. Class 10A relays typically trip within 10 seconds at 600% of their rated current.

In summary, Schneider Electric LRD03 TeSys LRD Thermal Overload Relay is designed for protecting equipment with a current draw between 0.25A and 0.4A. It is of Class 10A, which implies it will trip within a specific time frame when the current exceeds a certain percentage of its rated current.

Features

0.25-0.4A Th Overload Relay
Protect motors from damage due to overcurrent conditions
Easier to install and operate with multi-standard screws

Specifications

Brand : Schneider Electric

Item Name : Thermal Overload Relays

Model : LRD03

Conventional Free Air Thermal Current : 5 A for signalling circuit

Rated Insulation Voltage : power circuit: 600 V conforming to CSA, power circuit: 600 V conforming to UL, power circuit: 690 V conforming to IEC 60947-4-1

Rated Impulse Withstand Voltage : 6 kV

Ambient Air Temperature For Operation : -20-60 °C without derating conforming to IEC 60947-4-1

Ambient Air Temperature For Storage : -60-70 °C

Associated Fuse Rating : 4 A gG for signalling circuit, 4 A BS for signalling circuit

Auxiliary Contact Composition : 1 NO + 1 NC

Climatic Withstand : Conforming to IACS E10

Compatibility Code : LRD

Connections - Terminals : Control Circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible without cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² solid without cable end, power circuit: screw clamp terminals 1 cable(s) 1.5-10 mm² flexible without cable end, power circuit: screw clamp terminals 1 cable(s) 1-4 mm² flexible with cable end, power circuit: screw clamp terminals 1 cable(s) 1-6 mm² solid without cable end

Control Type : Red Push-button: stop, blue push-button: reset

Depth : 70 mm

Dielectric Strength : 1.89 kV at 50 Hz conforming to IEC 60947-1

Flame Retardance : V1 conforming to UL 94

Height : 66 mm

IP Degree Of Protection : IP20 Conforming to IEC 60529

Mechanical Robustness : Vibrations: 6 Gn conforming to IEC 60068-2-6, shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7

Mounting Support : Plate, with specific accessories, rail, with specific accessories, under contactor

Network Frequency : 0...400 Hz

Network Type : DC, AC

Permissible Current : 3 A at 120 V AC-15 for signalling circuit, 0.22 A at 125 V DC-13 for signalling circuit

Phase Failure Sensitivity Tripping Current : 130 % of Ir on two phase, the last one at 0

Certifications : IEC, UL, CSA, CCC, EAC, BV, RINA, DNV-GL, LROS (Lloyds register of shipping), ATEX INERIS, UKCA

Compatibility : LC1D25, LC1D18, LC1D38, LC1D12, LC1D32, LC1D09

Range : TeSys, TeSys Deca

Rated Operational Voltage Limits : 690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1

Relay Application : Motor Protection

Standards : EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, GB/T 14048.4, GB/T 14048.5, EN 50495

Tightening Torque : control circuit: 1.7 N.m - on screw clamp terminals, power circuit: 1.7 N.m - on screw clamp terminals

Width : 45 mm

Temperature Compensation : -20-60 °C

Thermal Overload Class : Class 10A conforming to IEC 60947-4-1

Thermal Protection Adjustment Range : 0.25-0.4 A

Tripping Threshold : 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1

Net Weight : 0.124 kg
