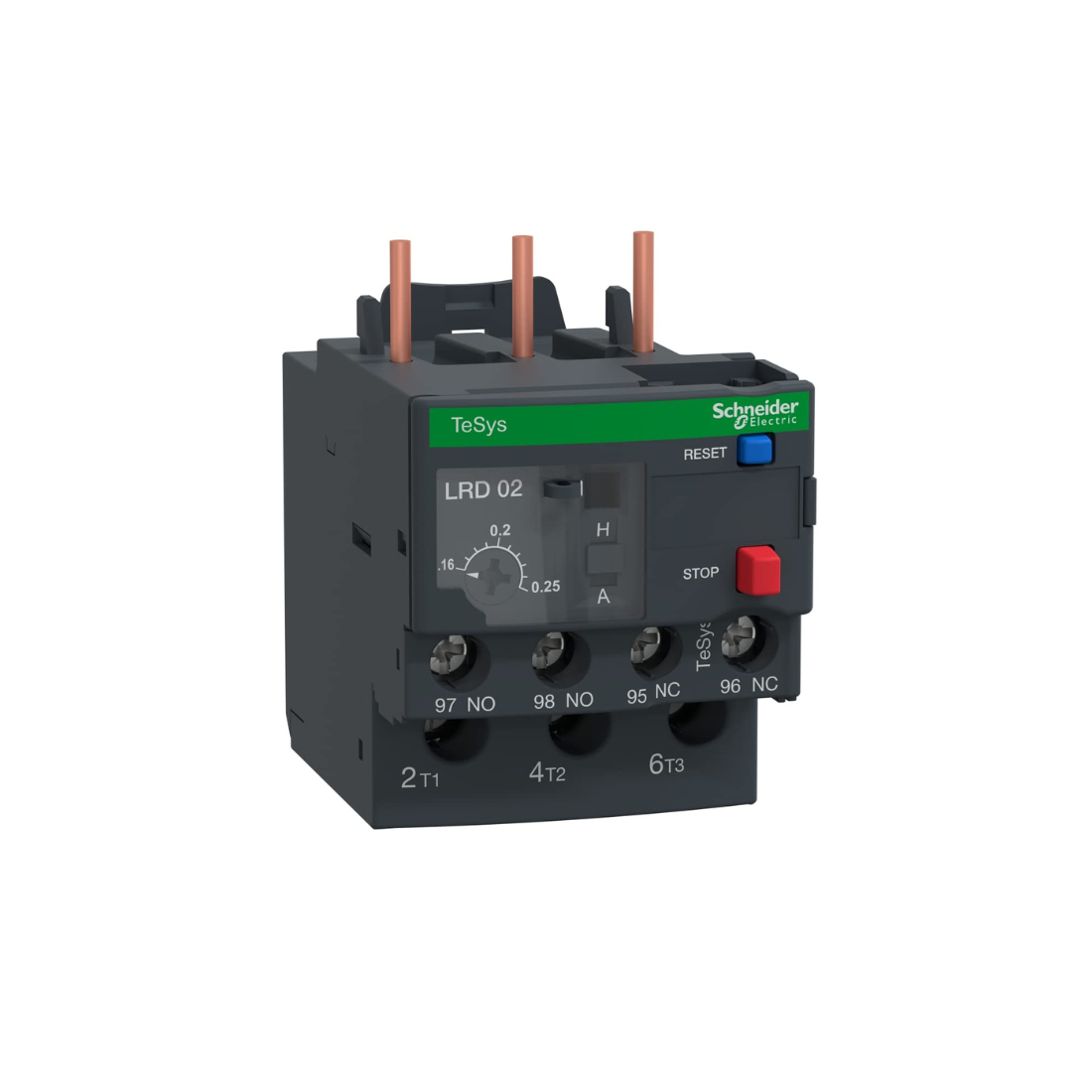

Schneider Electric TeSys LRD Thermal Overload Relays 0.16-0.25A Class 10A LRD02
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Thermal Overload Relays
Description
Schneider Electric LRD02 TeSys LRD Thermal Overload Relay, 0.25 A/690 V, Thermal Setting Range 0.16-0.25 A, Trip Class 10 A, for Protection of 3 Phase Motors 0.06 kW at 400 V. Differential Device with phase failure (loss). It has a thermal adjustment wheel, manual-automatic reset selector, test selector to simulate tripping, reset and stop buttons, flag indicator, and 2 auxiliary contacts 1NO+1NC for error signaling. The settings are protected by a transparent lid that can be sealed shut.
The connection is made using screw terminals and connects directly to the lower terminals of the LC1D09-D38 three-pole contactors. DIN rail or screw mounting, separate from the contactor, using a LAD7B106 terminal block (ordered separately). Certified to multiple standards (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).
Features
- Range of TeSys thermal relays for motor protection.
- Compensated, with automatic or manual reset and trip indication.
- TeSys three-pole thermal protection relays
- For mounting on LC1 type contactors of the TeSys series.
- Without direct mounting on old contactors (add panel) for Ref. LRD01 to LRD35.
- It is possible to use a pre-wiring kit and a DIN rail mounting bracket.
- Equipped with test function.
| Brand | Schneider Electric |
| Item Name | Thermal Overload Relays |
| Model | LRD02 |
| Conventional Free Air Thermal Current | 5 A for signalling circuit |
| Rated Insulation Voltage | power circuit: 600 V conforming to CSA, power circuit: 600 V conforming to UL, power circuit: 690 V conforming to IEC 60947-4-1 |
| Rated Impulse Withstand Voltage | 6 kV |
| Ambient Air Temperature For Operation | -20-60 °C without derating conforming to IEC 60947-4-1 |
| Ambient Air Temperature For Storage | -60-70 °C |
| Associated Fuse Rating | 4 A gG for signalling circuit, 4 A BS for signalling circuit |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Climatic Withstand | Conforming to IACS E10 |
| Compatibility Code | LRD |
| Connections - Terminals | control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible without cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² solid without cable end, power circuit: screw clamp terminals 1 cable(s) 1.5-10 mm² flexible without cable end, power circuit: screw clamp terminals 1 cable(s) 1-4 mm² flexible with cable end, power circuit: screw clamp terminals 1 cable(s) 1-6 mm² solid without cable end |
| Control Type | Red Push-button: stop, blue push-button: reset |
| Depth | 70 mm |
| Dielectric Strength | 1.89 kV at 50 Hz conforming to IEC 60947-1 |
| Flame Retardance | V1 conforming to UL 94 |
| Height | 66 mm |
| IP Degree Of Protection | IP20 Conforming to IEC 60529 |
| Mechanical Robustness | vibrations: 6 Gn conforming to IEC 60068-2-6, shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7 |
| Mounting Support | Plate, with specific accessories, rail, with specific accessories, under contactor |
| Network Frequency | 0...400 Hz |
| Network Type | DC, AC |
| Permissible Current | 3 A at 120 V AC-15 for signalling circuit, 0.22 A at 125 V DC-13 for signalling circuit |
| Phase Failure Sensitivity Tripping Current | 130 % of Ir on two phase, the last one at 0 |
| Certifications | IEC, UL, CSA, CCC, EAC, BV, RINA, DNV-GL, LROS (Lloyds register of shipping), ATEX INERIS, UKCA |
| Compatibility | LC1D25, LC1D38, LC1D12, LC1D09, LC1D18, LC1D32 |
| Range | TeSys, TeSys Deca |
| Rated Operational Voltage Limits | 690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1 |
| Relay Application | Motor Protection |
| Standards | EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, GB/T 14048.4, GB/T 14048.5, EN 50495 |
| Tightening Torque | control circuit: 1.7 N.m - on screw clamp terminals, power circuit: 1.7 N.m - on screw clamp terminals |
| Width | 45 mm |
| Temperature Compensation | -20-60 °C |
| Thermal Overload Class | Class 10A conforming to IEC 60947-4-1 |
| Thermal Protection Adjustment Range | 0.16-0.25 A |
| Tripping Threshold | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 |
| Net Weight | 0.124 kg |
