Schneider Electric TeSys LRD Thermal Overload Relays 0.1-0.16A Class 10A LRD01 in Dubai, UAE
Schneider Electric TeSys LRD Thermal Overload Relays 0.1-0.16A Class 10A LRD01 in Dubai, UAE

Schneider Electric TeSys LRD Thermal Overload Relays 0.1-0.16A Class 10A LRD01

Regular price AED 89.25
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:Thermal Overload Relays
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

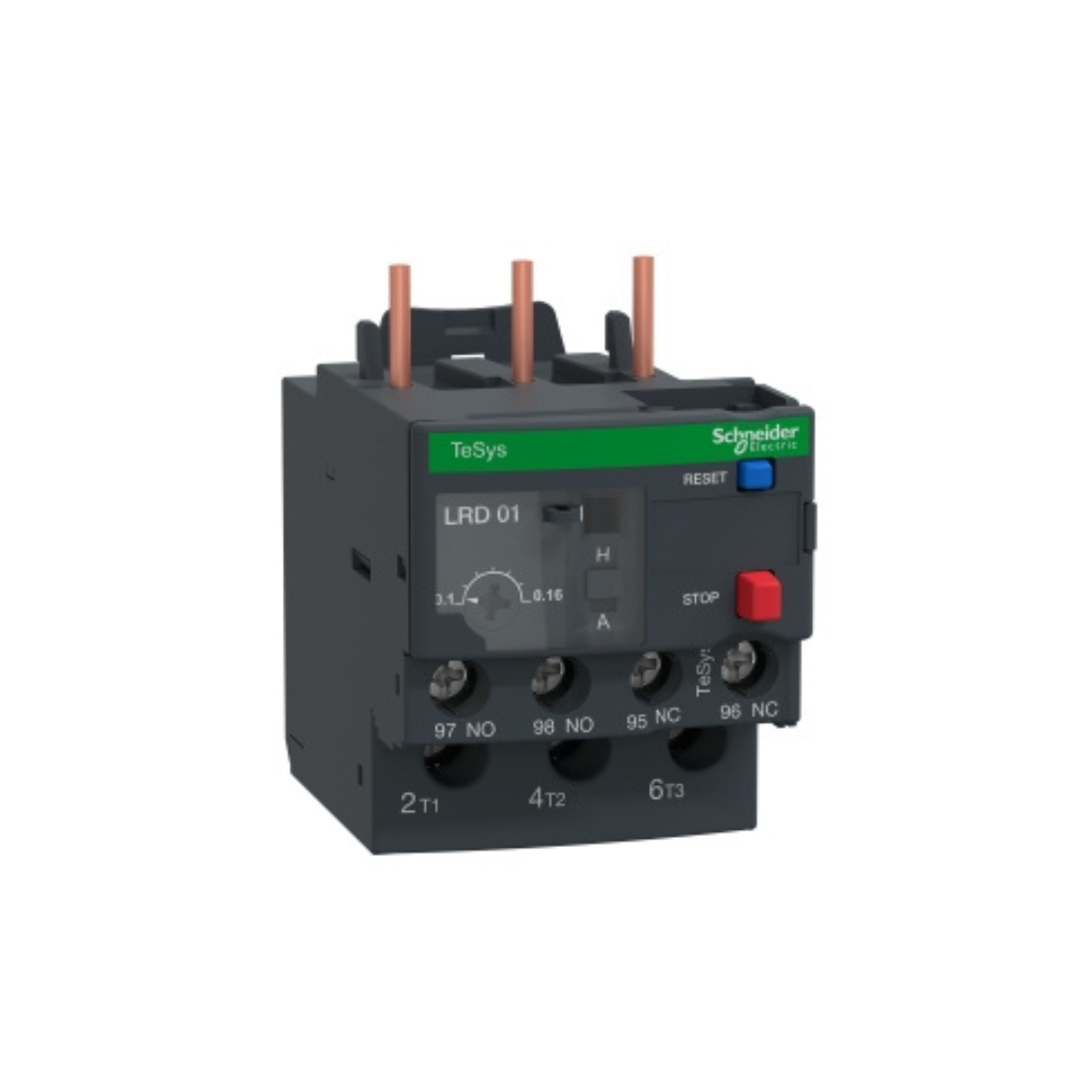

    Schneider Electric LRD01 TeSys LRD Thermal Overload Relay, 0.16A/690V, Thermal Setting Range 0.1-0.16A, Trip Class 10A, for Protecting Three Phase Motors Less than 0.06kW at 400V Device differential with phase failure and load imbalance detection. It has a thermal adjustment wheel, manual-automatic reset selector, test selector to simulate tripping, reset and stop buttons, flag indicator, and 2 auxiliary contacts 1NO+1NC for error signaling.

    The settings are protected by a transparent lid that can be sealed shut. The connection is made using screw terminals and connects directly to the lower terminals of the LC1D09-D38 three-pole contactors. DIN rail or screw mounting, separate from the contactor, using a LAD7B106 terminal block (ordered separately). Certified to multiple standards (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).

    Features
    • 0.1-0.16A Th Overload Relay
    • Protect motors from damage due to overcurrent conditions
    • Easier to install and operate with multi-standard screws
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : Thermal Overload Relays

    Model : LRD01

    Conventional Free Air Thermal Current : 5 A for signalling circuit

    Rated Operational Voltage limits : 690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1

    Rated Insulation Voltage : power circuit: 600 V conforming to CSA, power circuit: 600 V conforming to UL, power circuit: 690 V conforming to IEC 60947-4-1

    Rated Impulse Withstand Voltage : 6 kV

    Ambient Air Temperature For Operation : -20-60 °C without derating conforming to IEC 60947-4-1

    Ambient Air Temperature For Storage : -60-70 °C

    Associated Fuse Rating : 4 A gG for signalling circuit, 4 A BS for signalling circuit

    Auxiliary Contact Composition : 1 NO + 1 NC

    Climatic Withstand : Conforming to IACS E10

    Compatibility Code : LRD

    Connections - Terminals : control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible without cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² solid without cable end, power circuit: screw clamp terminals 1 cable(s) 1.5-10 mm² flexible without cable end, power circuit: screw clamp terminals 1 cable(s) 1-4 mm² flexible with cable end, power circuit: screw clamp terminals 1 cable(s) 1-6 mm² solid without cable end

    Control Type : Red Push-button: stop, blue push-button: reset

    Depth : 70 mm

    Dielectric Strength : 1.89 kV at 50 Hz conforming to IEC 60947-1

    Flame Retardance : V1 conforming to UL 94

    Height : 66 mm

    IP Degree Of Protection : IP20 Conforming to IEC 60529

    Mechanical Robustness : vibrations: 6 Gn conforming to IEC 60068-2-6, shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7

    Mounting Support : Plate, with specific accessories, rail, with specific accessories, under contactor

    Network Frequency : 0...400 Hz

    Network Type : DC, AC

    Permissible Current : 3 A at 120 V AC-15 for signalling circuit, 0.22 A at 125 V DC-13 for signalling circuit

    Phase Failure Sensitivity Tripping Current : 130 % of Ir on two phase, the last one at 0

    Certifications : IEC, UL, CSA, CCC, EAC, BV, RINA, DNV-GL, LROS (Lloyds register of shipping), ATEX INERIS, UKCA

    Compatibility : LC1D25, LC1D09, LC1D12, LC1D18, LC1D38, LC1D32

    Range : TeSys, TeSys Deca

    Relay Application : Motor Protection

    Standards : EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, GB/T 14048.4, GB/T 14048.5, EN 50495

    Tightening Torque : control circuit: 1.7 N.m - on screw clamp terminals, power circuit: 1.7 N.m - on screw clamp terminals

    Width : 45 mm

    Temperature Compensation : -20-60 °C

    Thermal Overload Class : Class 10A conforming to IEC 60947-4-1

    Thermal Protection Adjustment Range : 0.1-0.16 A

    Tripping Threshold : 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1

    Net Weight : 0.124 kg
