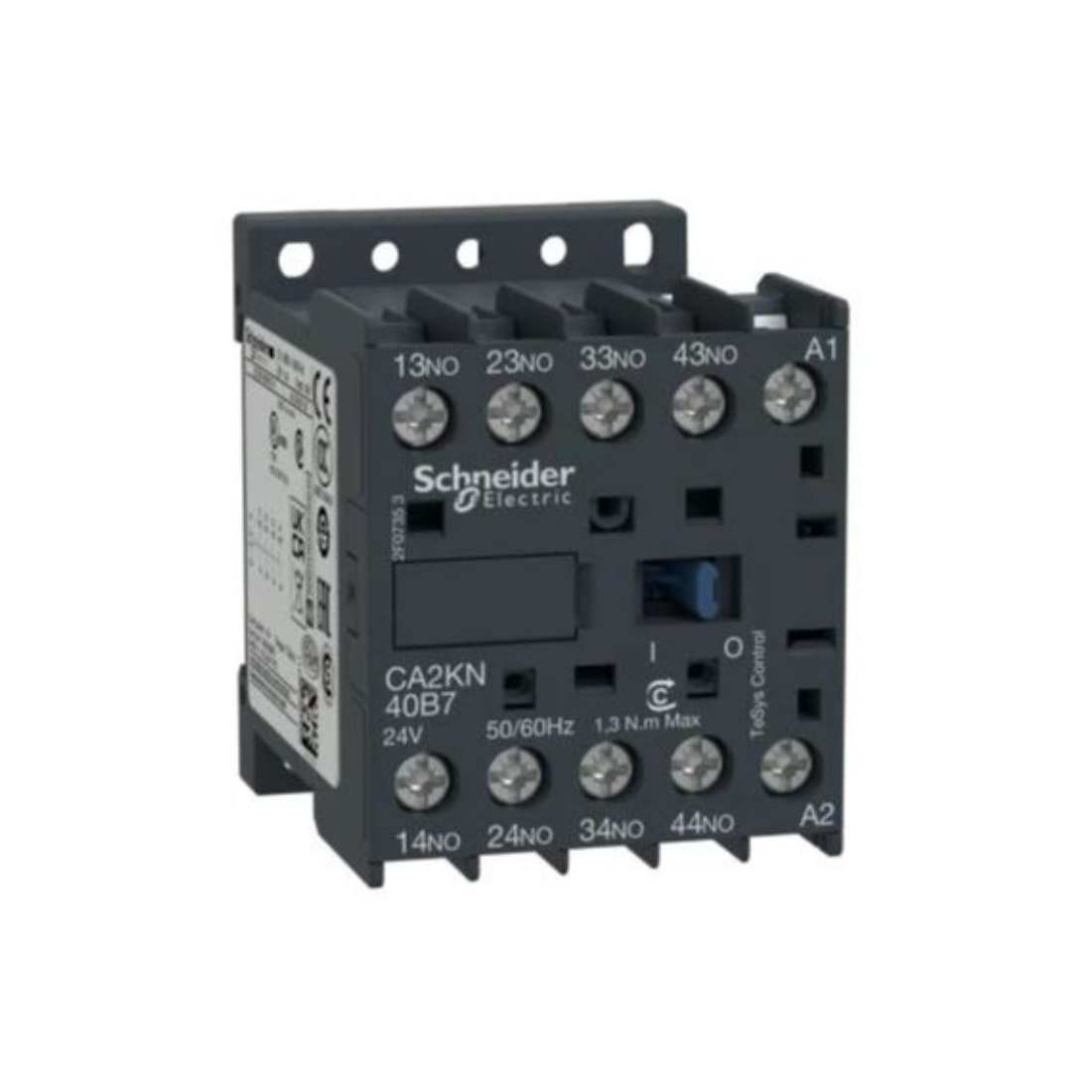

Schneider Electric TeSys K Control Relay 4 NO <= 690V 24V AC Coil CA2KN40B7
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Control Relay
Description
Schneider Electric CA2KN40B7 TeSys K Control Relay is used to control a circuit using the signal from another circuit. It acts like a switch that is activated by an electrical signal. 4 NO means that the relay has four normally open (NO) contacts. This means that the contacts are open in the normal state and closed when a control signal is applied.
The relay is designed for voltages up to 690 volts. The 24 VAC coil is the type of coil used in the relay. The coil is the part of the relay that creates the magnetic field necessary to operate the switch. In this case, the coil is powered with 24-volt alternating current (AC).
Schneider Electric CA2KN40B7 TeSys K Control Relay is used in various applications where high voltage circuits must be controlled by a lower voltage control signal.
Features
- It is an electrically operated switch
- It has 4 Normally Opened (NO) contacts
| Brand | Schneider Electric |
| Item Name | Control Relay |
| Model | CA2KN40B7 |
| Conventional Free Air Thermal Current | 10 A (at 50 °C) |
| Control Circuit Voltage | 24 V AC 50/60 Hz |
| Rated Insulation Voltage | 690 V conforming to IEC 60947, 750 V conforming to VDE 0110 group C, 690 V conforming to BS 5424, 600 V conforming to CSA C22.2 No 14 |
| Ambient Air Temperature For Storage | -50-80 °C |
| Associated Fuse Rating | 10 A gG conforming to IEC 60947, 10 A gG conforming to VDE 0660 |
| Compatibility Code | CA2K |
| Connections - Terminals | Screw clamp terminals 1 cable(s) 1.5-4 mm²solid, screw clamp terminals 2 cable(s) 1.5-4 mm²solid, screw clamp terminals 1 cable(s) 0.75-4 mm²flexible with cable end, screw clamp terminals 2 cable(s) 0.75-4 mm²flexible without cable end, screw clamp terminals 1 cable(s) 0.34-1.5 mm²flexible with cable end, screw clamp terminals 2 cable(s) 0.34-1.5 mm²flexible without cable end |
| Contactor Application | Control Circuit |
| Control Circuit Type | AC at 50/60 Hz |
| Control Circuit Voltage Limits | Drop-out: 0.2...0.75 Uc (at <50 °C), operational: 0.8...1.15 Uc (at <50 °C) |
| Depth | 57 mm |
| Flame Retardance | V1 conforming to UL 94, requirement 2 conforming to NF F 16-101, requirement 2 conforming to NF F 16-102 |
| Height | 58 mm |
| Heat Dissipation | 1.3-1.3 W |
| Hold-in Power Consumption in VA | 4.5-4.5 VA (at 20 °C) |
| Inrush Power in VA | 30-30 VA (at 20 °C) |
| IP Degree Of Protection | IP2X |
| Irms Rated Making Capacity | 110 A conforming to IEC 60947 |
| Maximum Operating Rate | 10000 cyc/h |
| Mechanical Durability | 10 Mcycles |
| Mechanical Robustness | vibrations contactor open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6, vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6, shocks contactor open: 10 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor closed: 15 Gn for 11 ms conforming to IEC 60068-2-27 |
| Minimum Switching Current | 5 mA |
| Minimum Switching Voltage | 17 V |
| Mounting Support | Rail, Plate |
| Non-overlap Time | 1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact |
| Operating Altitude | 2000 m without derating |
| Operating Time | 10...20 ms coil de-energisation and NO opening, 10...20 ms coil energisation and NO closing |
| Pole Contact Composition | 4NO |
| Certifications | CB Scheme, CCC, UL, CSA, EAC, CE, UKCA |
| Protective Treatment | TH Conforming to IEC 60068-2-30 |
| Range Of Product | TeSys K Control Relay |
| Rated Operational Voltage Limits | <= 690 V <= 400 Hz |
| Tightening Torque | 1.3 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm, 1.3 N.m - on screw clamp terminals - with screwdriver Philips No 26 mm, 1.3 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 |
| Utilisation Category | AC-15, DC-13 |
| Width | 45 mm |
| Immunity to Microbreaks | 2 ms |
| Non Overlap Distance | 0.5 mm |
| Ambient Air Temperature For Operation | -25-50 °C |
| Insulation Resistance | > 10 MOhm |
| Standards | EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1 |
| Weight | 0.18 kg |
