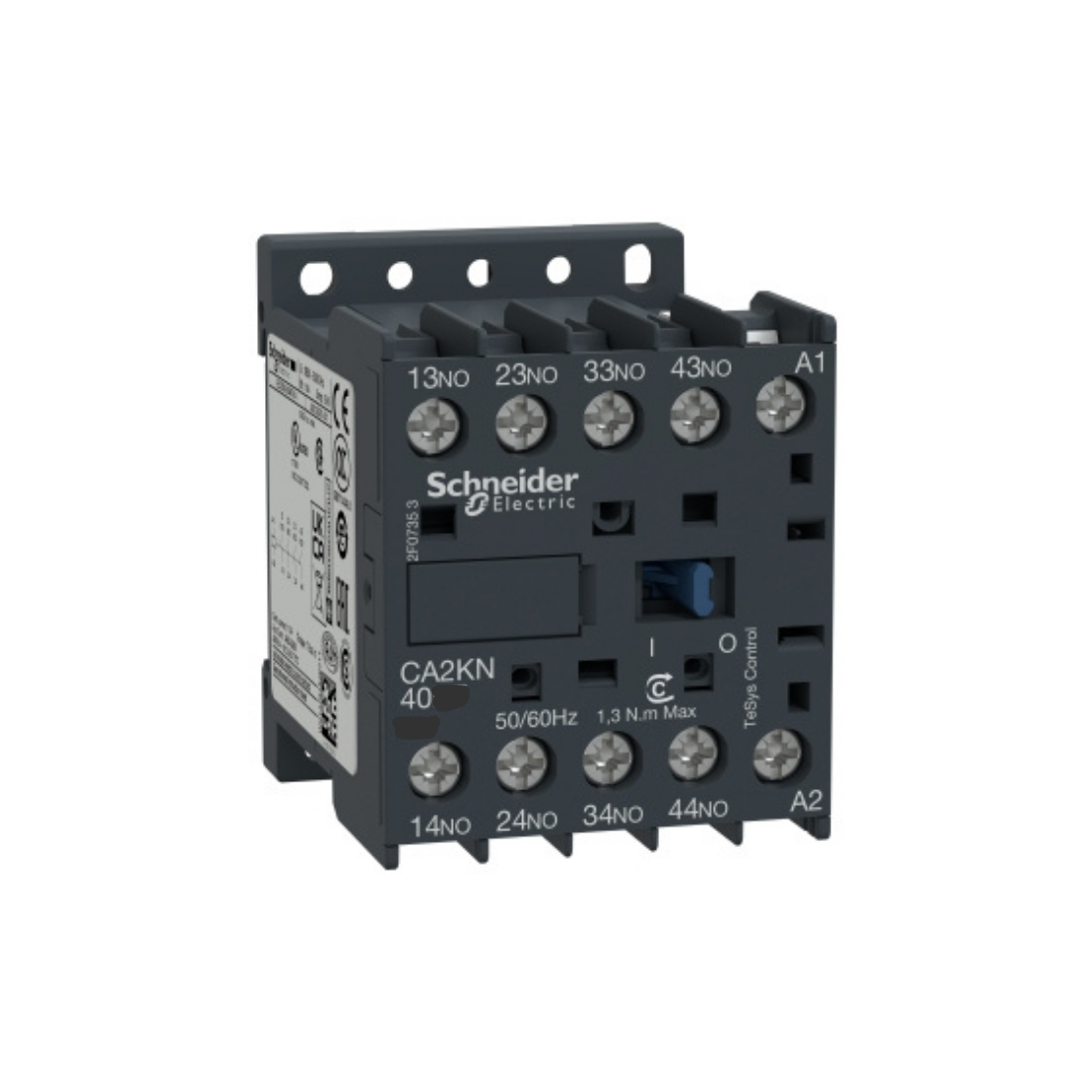

Schneider Electric TeSys K Control Relay 4 NO <= 690V 220-230V AC Coil CA2KN40M7

Name: Schneider Electric TeSys K Control Relay 4 NO <= 690V 220-230V AC Coil CA2KN40M7
Brand: Schneider Electric
Price: 87.15 AED
Availability: InStock

AED 87.15

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Control Relay

Description

Schneider Electric CA2KN40M7 TeSys K Control Relay is an electrical component that opens or closes a switch in response to a signal. It is often used to control a powerful device with a weak signal. 4 normally open contacts means that all four contacts are in an open state when the relay is not energized. <= 690 V is the maximum voltage the relay can handle. 220-230 VAC coil is the coil voltage needed to energize the relay. In this case, the relay coil is designed to operate with an input voltage between 220 and 230 volts AC.

To summarize, Schneider Electric CA2KN40M7 TeSys K Control Relay with four normally open contacts can handle voltages up to 690 volts and has a coil that operates on 220-230 volts AC. This type of relay can be used in various industrial applications where it is necessary to control high voltage devices with a lower voltage control signal.

Features

Used to remotely control electrical circuits.
It has 4 Normally Open (NO) contacts
Mercury free
Toxic heavy metal free

Specifications

Brand : Schneider Electric

Item Name : Control Relay

Model : CA2KN40M7

Conventional Free Air Thermal Current : 10 A (at 60 °C)

Control Circuit Voltage : 220...230 V AC 50/60 Hz

Rated Insulation Voltage : 690 V conforming to IEC 60947, 750 V conforming to VDE 0110 group C, 690 V conforming to BS 5424, 600 V conforming to CSA C22.2 No 14

Rated Impulse Withstand Voltage : 6 kV conforming to IEC 60947

Ambient Air Temperature For Storage : -50-80 °C

Associated Fuse Rating : 10 A gG conforming to IEC 60947, 10 A gG conforming to VDE 0660

Compatibility Code : CA2K

Connections - Terminals : Screw clamp terminals 1 cable(s) 1.5-4 mm²solid, screw clamp terminals 2 cable(s) 1.5-4 mm²solid, screw clamp terminals 1 cable(s) 0.75-4 mm²flexible with cable end, screw clamp terminals 2 cable(s) 0.75-4 mm²flexible without cable end, screw clamp terminals 1 cable(s) 0.34-1.5 mm²flexible with cable end, screw clamp terminals 2 cable(s) 0.34-1.5 mm²flexible without cable end

Contactor Application : Control Circuit

Control Circuit Type : AC at 50/60 Hz

Control Circuit Voltage Limits : Drop-out: 0.2...0.75 Uc (at <50 °C), operational: 0.8...1.15 Uc (at <50 °C)

Depth : 57 mm

Height : 58 mm

Hold-in Power Consumption in VA : 4.5-4.5 VA (at 20 °C)

Inrush Power in VA : 30-30 VA (at 20 °C)

Heat Dissipation : 1.3-1.3 W

IP Degree Of Protection : IP2X

Irms Rated Making Capacity : 110 A conforming to IEC 60947

Maximum Operating Rate : 10000 cyc/h

Mechanical Durability : 10 Mcycles

Mechanical Robustness : Vibrations contactor open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6, vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6, shocks contactor open: 10 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor closed: 15 Gn for 11 ms conforming to IEC 60068-2-27

Minimum Switching Current : 5 mA

Minimum Switching Voltage : 17 V

Mounting Support : Rail, Plate

Non-overlap Time : 1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact

Operating Altitude : 2000 m without derating

Operating Time : 10...20 ms coil de-energisation and NO opening, 10...20 ms coil energisation and NO closing

Pole Contact Composition : 4 NO

Certifications : CB Scheme, CCC, UL, CSA, EAC, CE, UKCA

Protective Treatment : TH Conforming to IEC 60068-2-30

Range Of Product : TeSys K Control Relay

Rated Operational Voltage Limits : <= 690 V AC 25...400 Hz

Tightening Torque : 1.3 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm, 1.3 N.m - on screw clamp terminals - with screwdriver Philips No 26 mm, 1.3 N.m - on screw clamp terminals - with screwdriver pozidriv No 2

Utilisation Category : AC-15, DC-13

Width : 45 mm

Immunity to Microbreaks : 2 ms

Non Overlap Distance : 0.5 mm

Ambient Air Temperature For Operation : -25-50 °C

Insulation Resistance : > 10 MOhm

Standards : EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1

Weight : 0.18 kg
