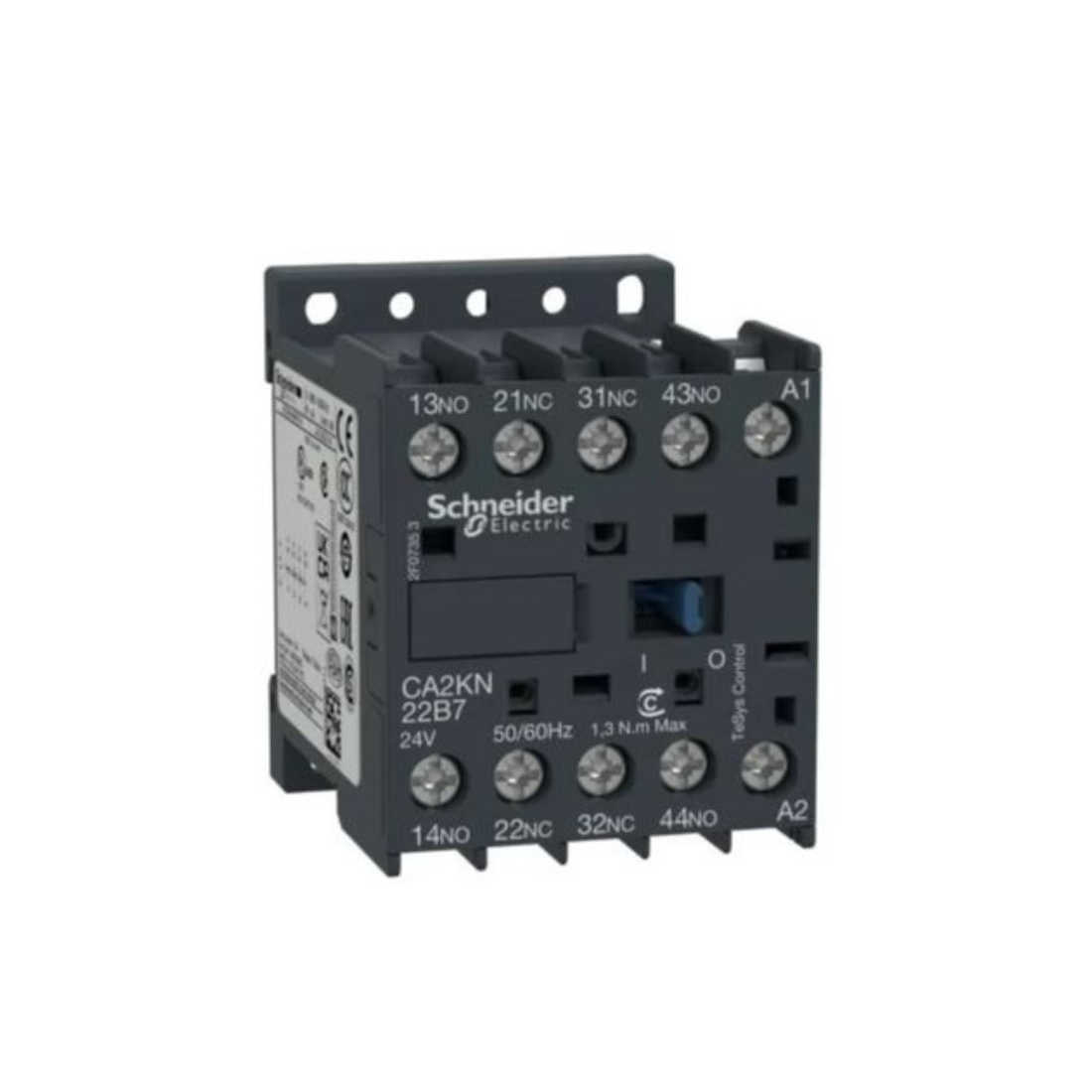

Schneider Electric TeSys K Control Relay 2 NO + 2 NC <= 690V 24V AC Coil CA2KN22B7

Name: Schneider Electric TeSys K Control Relay 2 NO + 2 NC <= 690V 24V AC Coil CA2KN22B7
Brand: Schneider Electric
Price: 82.95 AED
Availability: InStock

AED 82.95

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Control Relay

Description

Schneider Electric CA2KN22B7 TeSys K Control Relay is an electrically operated switch. Typically, a low-voltage control circuit is used to control a high voltage circuit. The relay has two normally open (NO) contacts and two normally closed (NC) contacts. The normally open (NO) contacts are in the open state when the relay is not energized. When the relay is energized, these contacts close and allow current to flow.

The normally closed (NC) contacts are in the closed state when the relay is not energized. When the relay is energized, these contacts open and stop the flow of current. <= 690 V is the maximum voltage the relay is designed for. It can withstand voltages up to 690 volts. The 24 VAC coil is the type of voltage and current used to power the relay coil.

Overall, the Schneider Electric CA2KN22B7 TeSys K Control Relay is used to control a circuit with a voltage of up to 690 volts. When a voltage of 24 VAC is applied to the coil, the relay contacts change state: normally open contacts close and normally closed contacts open.

Features

It is an electrically operated switch
It has 2 Normally Open (NO) contacts and 2 Normally Closed (NC) contacts

Specifications

Brand : Schneider Electric

Item Name : Control Relay

Model : CA2KN22B7

Conventional Free Air Thermal Current : 10 A (at 60 °C)

Control Circuit Voltage : 24 V AC 50/60 Hz

Rated Insulation Voltage : 690 V conforming to IEC 60947, 750 V conforming to VDE 0110 group C, 690 V conforming to BS 5424, 600 V conforming to CSA C22.2 No 14

Ambient Air Temperature For Storage : -50-80 °C

Associated Fuse Rating : 10 A gG conforming to IEC 60947, 10 A gG conforming to VDE 0660

Compatibility Code : CA2K

Connections - Terminals : screw clamp terminals 1 cable(s) 1.5-4 mm²solid, screw clamp terminals 2 cable(s) 1.5-4 mm²solid, screw clamp terminals 1 cable(s) 0.75-4 mm²flexible with cable end, screw clamp terminals 2 cable(s) 0.75-4 mm²flexible without cable end, screw clamp terminals 1 cable(s) 0.34-1.5 mm²flexible with cable end, screw clamp terminals 2 cable(s) 0.34-1.5 mm²flexible without cable end

Contactor Application : Control Circuit

Control Circuit Type : AC at 50/60 Hz

Control Circuit Voltage Limits : Drop-out: 0.2...0.75 Uc (at <50 °C), operational: 0.8...1.15 Uc (at <50 °C)

Depth : 57 mm

Flame Retardance : V1 conforming to UL 94, requirement 2 conforming to NF F 16-101, requirement 2 conforming to NF F 16-102

Height : 58 mm

Heat Dissipation : 1.3-1.3 W

Hold-in Power Consumption in VA : 4.5-4.5 VA (at 20 °C)

Inrush Power in VA : 30-30 VA (at 20 °C)

IP Degree Of Protection : IP2X

Irms Rated Making Capacity : 110 A conforming to IEC 60947

Maximum Operating Rate : 10000 cyc/h

Mechanical Durability : 10 Mcycles

Mechanical Robustness : vibrations contactor open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6, vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6, shocks contactor open: 10 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor closed: 15 Gn for 11 ms conforming to IEC 60068-2-27

Minimum Switching Current : 5 mA

Minimum Switching Voltage : 17 V

Mounting Support : Rail, Plate

Non-overlap Time : 1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact

Operating Altitude : 2000 m without derating

Operating Time : 10...20 ms coil de-energisation and NO opening, 10...20 ms coil energisation and NO closing, 15...25 ms coil de-energisation and NC closing, 5...15 ms coil energisation and NC opening

Pole Contact Composition : 2 NO + 2 NC

Certifications : CB Scheme, CCC, UL, CSA, EAC, CE, UKCA

Protective Treatment : TH Conforming to IEC 60068-2-30

Range : TeSys, TeSys Deca

Rated Operational Voltage Limits : <= 690 V AC 25...400 Hz

Tightening Torque : 1.3 N.m - on screw clamp terminals - with screwdriver Philips No 2, 1.3 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm, 1.3 N.m - on screw clamp terminals - with screwdriver pozidriv No 2

Utilisation Category : DC-13, AC-15

Width : 45 mm

Immunity to Microbreaks : 2 ms

Non Overlap Distance : 0.5 mm

Ambient Air Temperature For Operation : -25-50 °C

Insulation Resistance : > 10 MOhm

Standards : EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1

Weight : 0.18 kg
