Schneider Electric TeSys K Control Relay 2 NO + 2 NC <= 690V 230V AC Coil CA2KN22P7
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Control Relay
Description

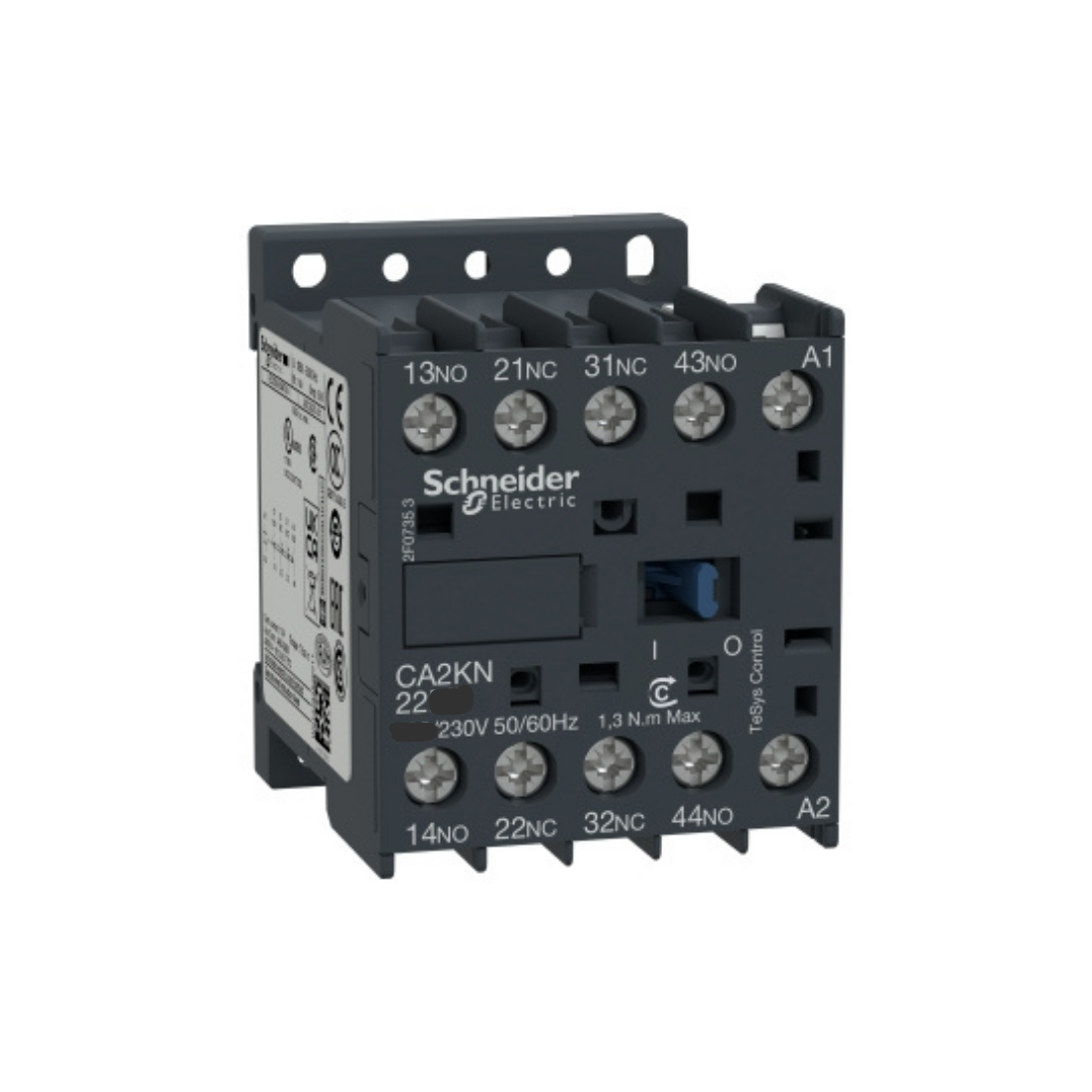

Schneider Electric CA2KN22P7 TeSys K Control Relay, 4 contacts (2NO + 2NC), 10A/690V, to control AC-15/DC-13 electromagnetic loads. It has an AC 230V 50/60Hz control circuit with connection via screw terminals. With high operating rates of up to 180 cycles/minute and an ambient temperature of -25/+50°C, it guarantees high reliability and durability.
Compact (45mm wide), can be clipped onto a 35mm DIN rail or fixed with a screw. Multi-standard certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh).
Features
- Control electrical circuits
- It has 2 Normally Open (NO) contacts and 2 Normally Closed (NC) contacts
| Brand | Schneider Electric |
| Item Name | Control Relay |
| Model | CA2KN22P7 |
| Conventional Free Air Thermal Current | 10 A (at 60 °C) |
| Control Circuit Voltage | 230 V AC 50/60 Hz |
| Rated Insulation Voltage | 690 V conforming to IEC 60947, 750 V conforming to VDE 0110 group C, 690 V conforming to BS 5424, 600 V conforming to CSA C22.2 No 14 |
| Ambient Air Temperature For Storage | -50-80 °C |
| Associated Fuse Rating | 10 A gG conforming to IEC 60947, 10 A gG conforming to VDE 0660 |
| Compatibility Code | CA2K |
| Connections - Terminals | Screw Clamp Terminals 1 cable(s) 1.5-4 mm²solid, screw clamp terminals 2 cable(s) 1.5-4 mm²solid, screw clamp terminals 1 cable(s) 0.75-4 mm²flexible with cable end, screw clamp terminals 2 cable(s) 0.75-4 mm²flexible without cable end, screw clamp terminals 1 cable(s) 0.34-1.5 mm²flexible with cable end, screw clamp terminals 2 cable(s) 0.34-1.5 mm²flexible without cable end |
| Contactor Application | Control Circuit |
| Control Circuit Type | AC at 50/60 Hz |
| Control Circuit Voltage Limits | Drop-out: 0.2...0.75 Uc (at <50 °C), operational: 0.8...1.15 Uc (at <50 °C) |
| Depth | 57 mm |
| Flame Retardance | V1 conforming to UL 94, requirement 2 conforming to NF F 16-101, requirement 2 conforming to NF F 16-102 |
| Height | 58 mm |
| Heat Dissipation | 1.3-1.3 W |
| Hold-in Power Consumption in VA | 4.5-4.5 VA (at 20 °C) |
| Inrush Power in VA | 30-30 VA (at 20 °C) |
| IP Degree Of Protection | IP2X |
| Irms Rated Making Capacity | 110 A conforming to IEC 60947 |
| Maximum Operating Rate | 10000 cyc/h |
| Mechanical Durability | 10 Mcycles |
| Mechanical Robustness | Vibrations contactor open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6, vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6, shocks contactor open: 10 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor closed: 15 Gn for 11 ms conforming to IEC 60068-2-27 |
| Minimum Switching Current | 5 mA |
| Minimum Switching Voltage | 17 V |
| Mounting Support | Rail, Plate |
| Non-overlap Time | 1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact |
| Operating Altitude | 2000 m without derating |
| Operating Time | 10...20 ms coil de-energisation and NO opening, 10...20 ms coil energisation and NO closing, 15...25 ms coil de-energisation and NC closing, 5...15 ms coil energisation and NC opening |
| Pole Contact Composition | 2 NO + 2 NC |
| Certifications | CB Scheme, CCC, UL, CSA, EAC, CE, UKCA |
| Protective Treatment | TH Conforming to IEC 60068-2-30 |
| Range | TeSys, TeSys Deca |
| Rated Operational Voltage Limits | <= 690 V AC 25...400 Hz |
| Tightening Torque | 1.3 N.m - on screw clamp terminals - with screwdriver Philips No 2, 1.3 N.m - on screw clamp terminals - with screwdriver flat Ă 6 mm, 1.3 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 |
| Utilisation Category | DC-13, AC-15 |
| Width | 45 mm |
| Immunity to Microbreaks | 2 ms |
| Non Overlap Distance | 0.5 mm |
| Ambient Air Temperature For Operation | -25-50 °C |
| Insulation Resistance | > 10 MOhm |
| Standards | EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1 |
| Weight | 0.18 kg |
