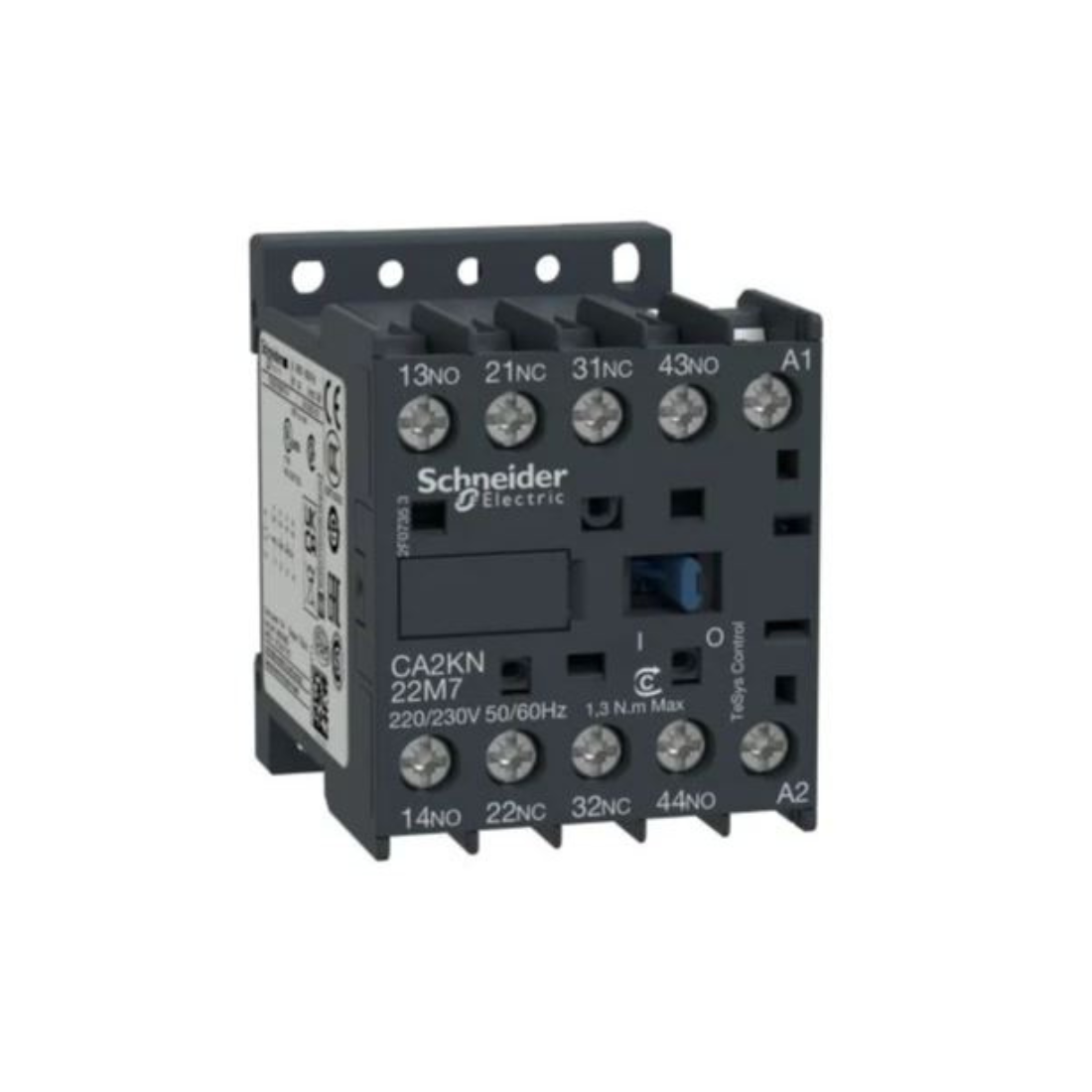

Schneider Electric TeSys K Control Relay 2 NO + 2 NC <= 690V 230-240V AC Coil CA2KN22U7
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Control Relay
Description
Schneider Electric CA2KN22U7 TeSys K Control Relay is an electrically operated switch that is commonly used in control panels and automation systems to control electrical circuits. This relay has 2 Normally Open (NO) and 2 Normally Closed (NC) contacts. This means that in its default state, the NO contacts are not connected, but when the relay is energized, they close.
Conversely, the NC contacts are normally connected, but open when the relay is energized. It is designed to work with voltages up to 690V. This means it can handle circuits with a maximum voltage of 690V. The coil, which is the part of the relay that actually does the switching, operates on 230-240V AC. This is the voltage applied to the coil to activate the relay.
Features
- Used to remotely control electrical circuits.
- It has 2 Normally Open (NO) contacts and 2 Normally Closed (NC) contacts
| Brand | Schneider Electric |
| Item Name | Control Relay |
| Model | CA2KN22U7 |
| Conventional Free Air Thermal Current | 10 A (at 60 °C) |
| Control Circuit Voltage | 230...240 V AC 50/60 Hz |
| Rated Insulation Voltage | 690 V conforming to IEC 60947, 750 V conforming to VDE 0110 group C, 690 V conforming to BS 5424, 600 V conforming to CSA C22.2 No 14 |
| Rated Impulse Withstand Voltage | 6 kV conforming to IEC 60947 |
| Ambient Air Temperature For Storage | -50-80 °C |
| Associated Fuse Rating | 10 A gG conforming to IEC 60947, 10 A gG conforming to VDE 0660 |
| Compatibility Code | CA2K |
| Connections - Terminals | screw clamp terminals 1 cable(s) 1.5-4 mm²solid, screw clamp terminals 2 cable(s) 1.5-4 mm²solid, screw clamp terminals 1 cable(s) 0.75-4 mm²flexible with cable end, screw clamp terminals 2 cable(s) 0.75-4 mm²flexible without cable end, screw clamp terminals 1 cable(s) 0.34-1.5 mm²flexible with cable end, screw clamp terminals 2 cable(s) 0.34-1.5 mm²flexible without cable end |
| Contactor Application | Control Circuit |
| Control Circuit Type | AC at 50/60 Hz |
| Control Circuit Voltage Limits | Drop-out: 0.2...0.75 Uc (at <50 °C), operational: 0.8...1.15 Uc (at <50 °C) |
| Depth | 57 mm |
| Height | 58 mm |
| Hold-in Power Consumption in VA | 4.5-4.5 VA (at 20 °C) |
| Inrush Power in VA | 30-30 VA (at 20 °C) |
| IP Degree Of Protection | IP2X |
| Irms Rated Making Capacity | 110 A conforming to IEC 60947 |
| Maximum Operating Rate | 10000 cyc/h |
| Mechanical Durability | 10 Mcycles |
| Mechanical Robustness | vibrations contactor open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6, vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6, shocks contactor open: 10 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor closed: 15 Gn for 11 ms conforming to IEC 60068-2-27 |
| Minimum Switching Current | 5 mA |
| Minimum Switching Voltage | 17 V |
| Mounting Support | Rail, Plate |
| Non-overlap Time | 1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact |
| Operating Altitude | 2000 m without derating |
| Operating Time | 10...20 ms coil de-energisation and NO opening, 10...20 ms coil energisation and NO closing, 15...25 ms coil de-energisation and NC closing, 5...15 ms coil energisation and NC opening |
| Pole Contact Composition | 2 NO + 2 NC |
| Certifications | CB Scheme, CCC, UL, CSA, EAC, CE, UKCA |
| Protective Treatment | TH Conforming to IEC 60068-2-30 |
| Range | TeSys, TeSys Deca |
| Rated Operational Voltage Limits | <= 690 V AC 25...400 Hz |
| Tightening Torque | 1.3 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm, 1.3 N.m - on screw clamp terminals - with screwdriver Philips No 26 mm, 1.3 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 |
| Utilisation Category | DC-13, AC-15 |
| Width | 45 mm |
| Immunity to Microbreaks | 2 ms |
| Non Overlap Distance | 0.5 mm |
| Ambient Air Temperature For Operation | -25-50 °C |
| Insulation Resistance | > 10 MOhm |
| Standards | EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1 |
| Weight | 0.18 kg |
