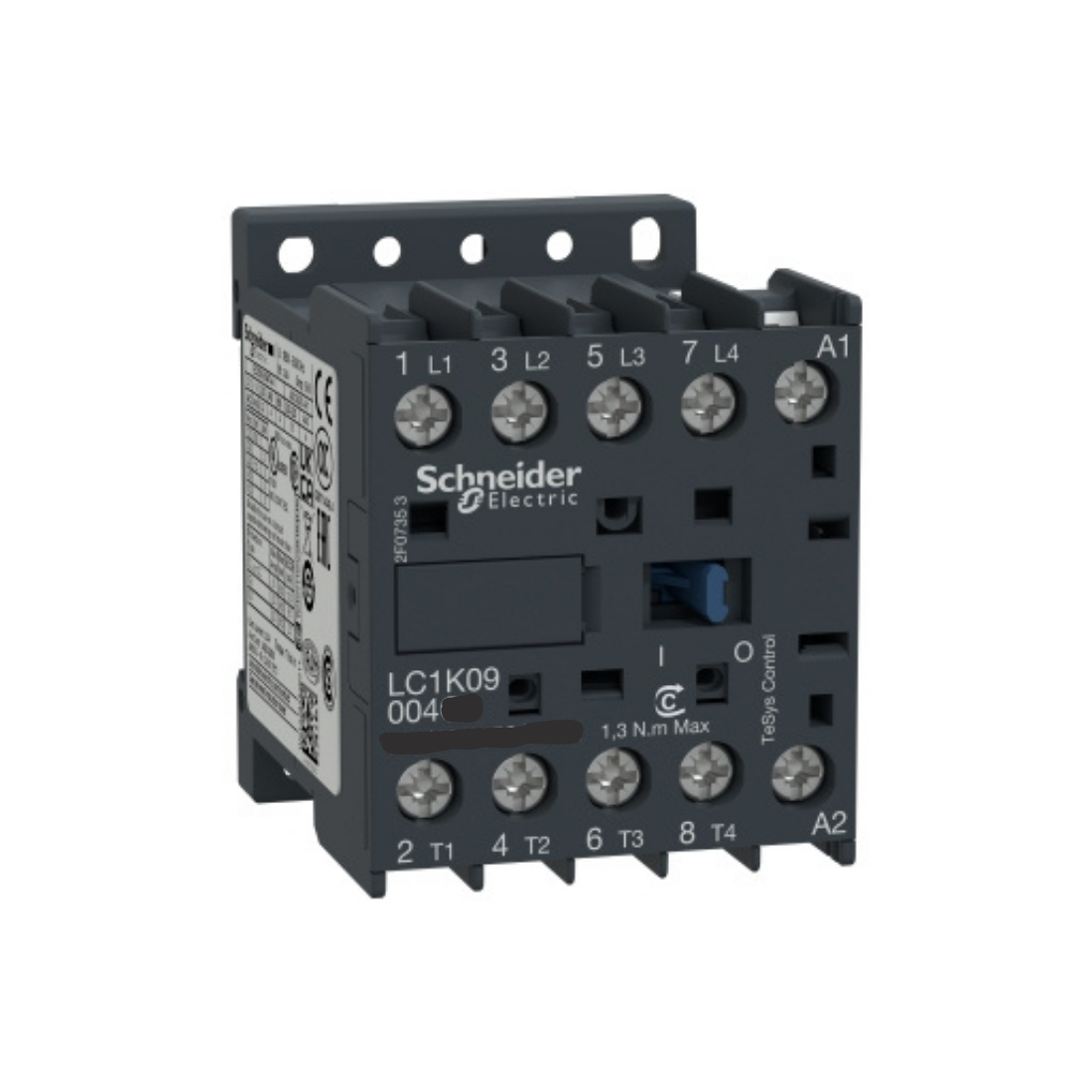

Schneider Electric TeSys K Contactor 4P(4NO) AC-1 <= 440V 20A 110V AC Standard Coil LC1K09004F7

Name: Schneider Electric TeSys K Contactor 4P(4NO) AC-1 <= 440V 20A 110V AC Standard Coil LC1K09004F7
Brand: Schneider Electric
Price: 116.55 AED
Availability: InStock

AED 116.55

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Contactor

Description

Schneider Electric LC1K09004F7 TeSys K Contactor, 4 poles (4 NO), for non-inductive load control applications up to 20 A/690 V AC-1. It has a 110V 50/60Hz AC coil without built-in auxiliary contact and connection via screw terminals. For operating rates up to 600 cycles/hour and environments up to 50°C, it ensures reliability and durability in standard applications. Very compact (45mm wide), DIN rail mounting or screw mounting. Multi-standard certification (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Features

20A TP AC1 Contactor AC1 110V AC Coil
Used to make or break an electrical connection
4-pole contactor for connection by screw clamp terminals

Specifications

Brand : Schneider Electric

Item Name : Contactor

Model : LC1K09004F7

Conventional Free Air Thermal Current : 20 A (at 50 °C) for power circuit

Control Circuit Voltage : 110V AC 50/60 Hz

Rated Insulation Voltage : Power Circuit: 600 V conforming to UL 508, power circuit: 690 V conforming to IEC 60947-4-1, power circuit: 600 V conforming to CSA C22.2 No 14

Rated Impulse Withstand Voltage : 8 kV

Ambient Air Temperature For Storage : -50-80 °C

Associated Fuse Rating : 25 A gG at <= 440 V for power circuit, 25 A aM for power circuit

Average Impedance : 3 mOhm - Ith 20 A 50 Hz for power circuit

Compatibility Code : LC1K

Connections - Terminals : Screw clamp terminals 1 cable(s) 1.5-4 mm²solid, screw clamp terminals 1 cable(s) 0.75-4 mm²flexible without cable end, screw clamp terminals 1 cable(s) 0.34-2.5 mm²flexible with cable end, screw clamp terminals 2 cable(s) 1.5-4 mm²solid, screw clamp terminals 2 cable(s) 0.75-4 mm²flexible without cable end, screw clamp terminals 2 cable(s) 0.34-1.5 mm²flexible with cable end

Contactor Application : Resistive Load

Control Circuit Type : AC at 50/60 Hz

Control Circuit Voltage Limits : Operational: 0.8...1.15 Uc (at <50 °C), drop-out: 0.2...0.75 Uc (at <50 °C)

Flame Retardance : V1 conforming to UL 94, requirement 2 conforming to NF F 16-101, requirement 2 conforming to NF F 16-102

Depth : 57 mm

Device Application : Control

Heat Dissipation : 1.3-1.3 W

Height : 58 mm

Hold-in Power Consumption in VA : 4.5-4.5 VA (at 20 °C)

Inrush Power in VA : 30-30 VA (at 20 °C)

Insulation Resistance : > 10 MOhm for Signalling Circuit

Irms Rated Making Capacity : 110 A AC for power circuit conforming to NF C 63-110, 110 A AC for power circuit conforming to IEC 60947

Maximum Operating Rate : 3600 cyc/h 60 °C

Mechanical Durability : 10 Mcycles

Mechanical Robustness : Shocks contactor closed, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor closed, on Y axis: 15 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor closed, on Z axis: 15 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor opened, on X axis: 6 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor opened, on Y axis: 10 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor opened, on Z axis: 10 Gn for 11 ms conforming to IEC 60068-2-27, vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6, vibrations contactor opened: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6

Mounting Support : Rail, Plate

Operating Altitude : 2000 m without derating

Operating Time : 10...20 ms coil de-energisation and NO opening, 10...20 ms coil energisation and NO closing

Overvoltage Category : III

Pole Contact Composition : 4NO

Poles Description : 4P

Certifications : CB Scheme, CCC, UL, CSA, EAC, CE, UKCA

Protective Treatment : TC conforming to IEC 60068, TC conforming to DIN 50016

Range : TeSys K

Rated Breaking Capacity : 110 A at 415 V conforming to IEC 60947, 110 A at 440 V conforming to IEC 60947, 80 A at 500 V conforming to IEC 60947, 110 A at 220...230 V conforming to IEC 60947, 110 A at 380...400 V conforming to IEC 60947, 70 A at 660...690 V conforming to IEC 60947

Rated Operational Coltage Limits : Power Circuit: 690 V AC 50/60 Hz

Safety Reliability Level : B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1

Signalling Circuit Frequency : <= 400 Hz

Standards : EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1

Width : 45mm

Tightening Torque : 0.8-1.3 N.m - on screw clamp terminals Philips No 2, 0.8-1.3 N.m - on screw clamp terminals flat Ø 6 mm, 0.8-1.3 N.m - on screw clamp terminals pozidriv No 2

Utilisation Category : AC-1

Width : 45 mm

Rated Short-time Withstand Current : 90 A 50 °C - 1 s for power circuit, 85 A 50 °C - 5 s for power circuit, 80 A 50 °C - 10 s for power circuit, 60 A 50 °C - 30 s for power circuit, 45 A 50 °C - 1 min for power circuit, 40 A 50 °C - 3 min for power circuit, 20 A 50 °C - >= 15 min for power circuit

Rated Operational Current : 20 A (at <50 °C) at <= 440 V AC AC-1 for power circuit, 16 A (at <70 °C) at 690 V AC AC-1 for power circuit

Electrical Durability : 0.18 Mcycles 20 A AC-1 at Ue <= 440 V

Weight : 0.18 kg
