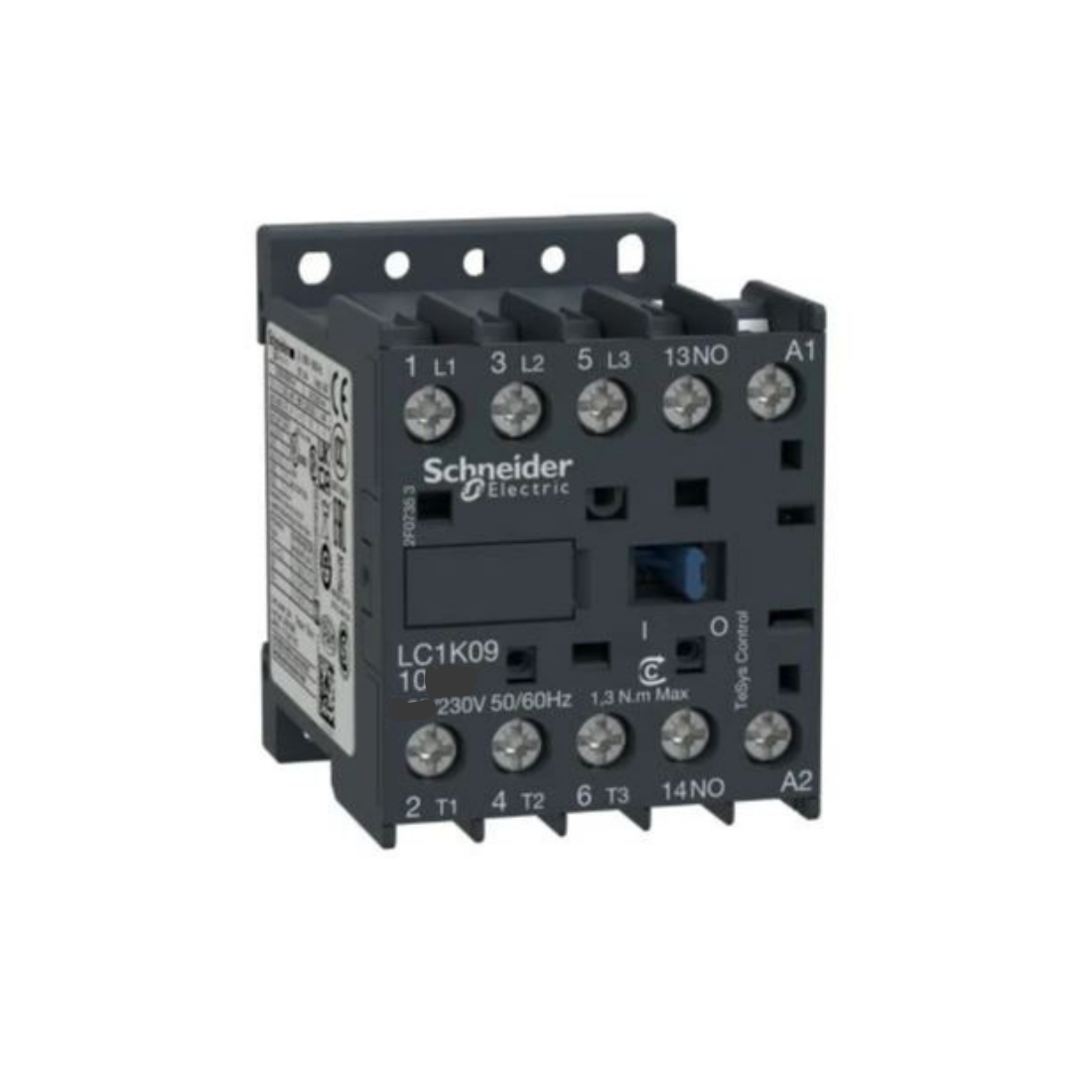

Schneider Electric TeSys K Contactor 3P AC-3 <= 440V 9A - 1 NO Aux. 230V AC Coil LC1K0910P7
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Contactor
Description
Schneider Electric LC1K0910P7 TeSys K Contactor is an electrically controlled switch used to switch an electrical circuit. Typically used in applications where a large amount of power needs to be controlled. The contactor is a three-pole device. This means that three independent conductors or phases can be controlled. AC-3 is a rating that relates to the type of operation for which the contactor is designed. AC-3 operation is used to change motor loads by starting and stopping when the motor has reached maximum speed.
<= 440 V, 9 A is the maximum voltage and current the contactor is designed for. It can withstand voltages up to 440 volts and a current of up to 9 amps. The contactor has a normally open auxiliary contact. This is a separate set of contacts operated by the main contacts of the contactor. The 230V AC coil is the voltage needed to operate the electromagnetic coil inside the contactor. When this coil is energized, it creates a magnetic field that brings the contacts together, completing the circuit.
In summary, Schneider Electric LC1K0910P7 TeSys K Contactor is a three-pole contactor designed for AC-3 operation with a maximum nominal voltage of 440 V and 9 A. It has a normally open auxiliary contact and is powered by a 230V AC coil. This contactor is suitable for AC motor applications up to the specified voltage and current ratings.
Features
- 9A TP AC3 Contactor AC3 230V AC Coil
- Control the flow of electric current in a circuit
- 3-pole contactor for connection by screw clamp terminals
| Brand | Schneider Electric |
| Item Name | Contactor |
| Model | LC1K0910P7 |
| Conventional Free Air Thermal Current | 20 A (at 50 °C) for power circuit, 10 A (at 50 °C) for signalling circuit |
| Control Circuit Voltage | 230 V AC 50/60 Hz |
| Associated Fuse Rating | 25 A gG at <= 440 V for power circuit, 25 A aM for power circuit, 10 A gG for signalling circuit conforming to IEC 60947, 10 A gG for signalling circuit conforming to VDE 0660 |
| Auxiliary Contact Composition | 1 NO |
| Auxiliary Contacts Type | Type instantaneous 1 NO |
| Average Impedance | 3 mOhm - Ith 20 A 50 Hz for power circuit |
| Compatibility Code | LC1K |
| Contactor Application | Motor Control, Resistive Load |
| Control Circuit Type | AC at 50/60 Hz |
| Control Circuit Voltage Limits | Operational: 0.85...1.1 Uc (at <50 °C), drop-out: 0.2...0.75 Uc (at <50 °C) |
| Device Application | Control |
| Flame Retardance | V1 conforming to UL 94, requirement 2 conforming to NF F 16-101, requirement 2 conforming to NF F 16-102 |
| Irms Rated Making Capacity | 110 A AC for power circuit conforming to NF C 63-110, 110 A AC for power circuit conforming to IEC 60947, 110 A AC for signalling circuit conforming to IEC 60947 |
| Heat Dissipation | 1.3-1.3 W |
| Hold-in Power Consumption in VA | 4.5-4.5 VA (at 20 °C) |
| Inrush Power in VA | 30-30 VA (at 20 °C) |
| Insulation Resistance | > 10 MOhm for Signalling Circuit |
| Maximum Operating Rate | 3600 cyc/h 60 °C |
| Mechanical Robustness | Shocks contactor closed, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor closed, on Y axis: 15 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor closed, on Z axis: 15 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor opened, on X axis: 6 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor opened, on Y axis: 10 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor opened, on Z axis: 10 Gn for 11 ms conforming to IEC 60068-2-27, vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6, vibrations contactor opened: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6 |
| Minimum Switching Current | 5 mA for signalling circuit |
| Minimum Switching Voltage | 17 V for signalling circuit |
| Motor Power kW | 2.2 kW at 220...230 V AC 50/60 Hz AC-3, 4 kW at 380...415 V AC 50/60 Hz AC-3, 4 kW at 440 V AC 50/60 Hz AC-3, 4 kW at 480 V AC 50/60 Hz AC-3, 4 kW at 500...600 V AC 50/60 Hz AC-3, 4 kW at 660...690 V AC 50/60 Hz AC-3, 2.2 kW at 400 V AC 50/60 Hz AC-4, 2.2 kW at 220...230 V AC 50/60 Hz AC-3e, 4 kW at 380...415 V AC 50/60 Hz AC-3e, 4 kW at 440 V AC 50/60 Hz AC-3e, 4 kW at 480 V AC 50/60 Hz AC-3e, 4 kW at 500...600 V AC 50/60 Hz AC-3e, 4 kW at 660...690 V AC 50/60 Hz AC-3e |
| Operating Altitude | 2000 m without derating |
| Operating Time | 10...20 ms coil de-energisation and NO opening, 10...20 ms coil energisation and NO closing |
| Overvoltage Category | III |
| Pole Contact Composition | 3 NO |
| Poles Description | 3P |
| Certifications | CB Scheme, CCC, UL, CSA, EAC, CE, UKCA |
| Protective Treatment | TC conforming to IEC 60068, TC conforming to DIN 50016 |
| Range | TeSys |
| Rated Breaking Capacity | 110 A at 415 V conforming to IEC 60947, 110 A at 440 V conforming to IEC 60947, 80 A at 500 V conforming to IEC 60947, 110 A at 220...230 V conforming to IEC 60947, 110 A at 380...400 V conforming to IEC 60947, 70 A at 660...690 V conforming to IEC 60947 |
| Safety Reliability Level | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Signalling Circuit Frequency | <= 400 Hz |
| Standards | EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1 |
| Utilisation Category | AC-4, AC-1, AC-3, AC-3e |
| Non Overlap Distance | 0.5 mm |
| Rated Operational Current | 20 A (at <50 °C) at <= 440 V AC AC-1 for power circuit, 9 A at <= 440 V AC AC-3 for power circuit, 16 A (at <70 °C) at 690 V AC AC-1 for power circuit, 9 A at <= 440 V AC AC-3e for power circuit |
