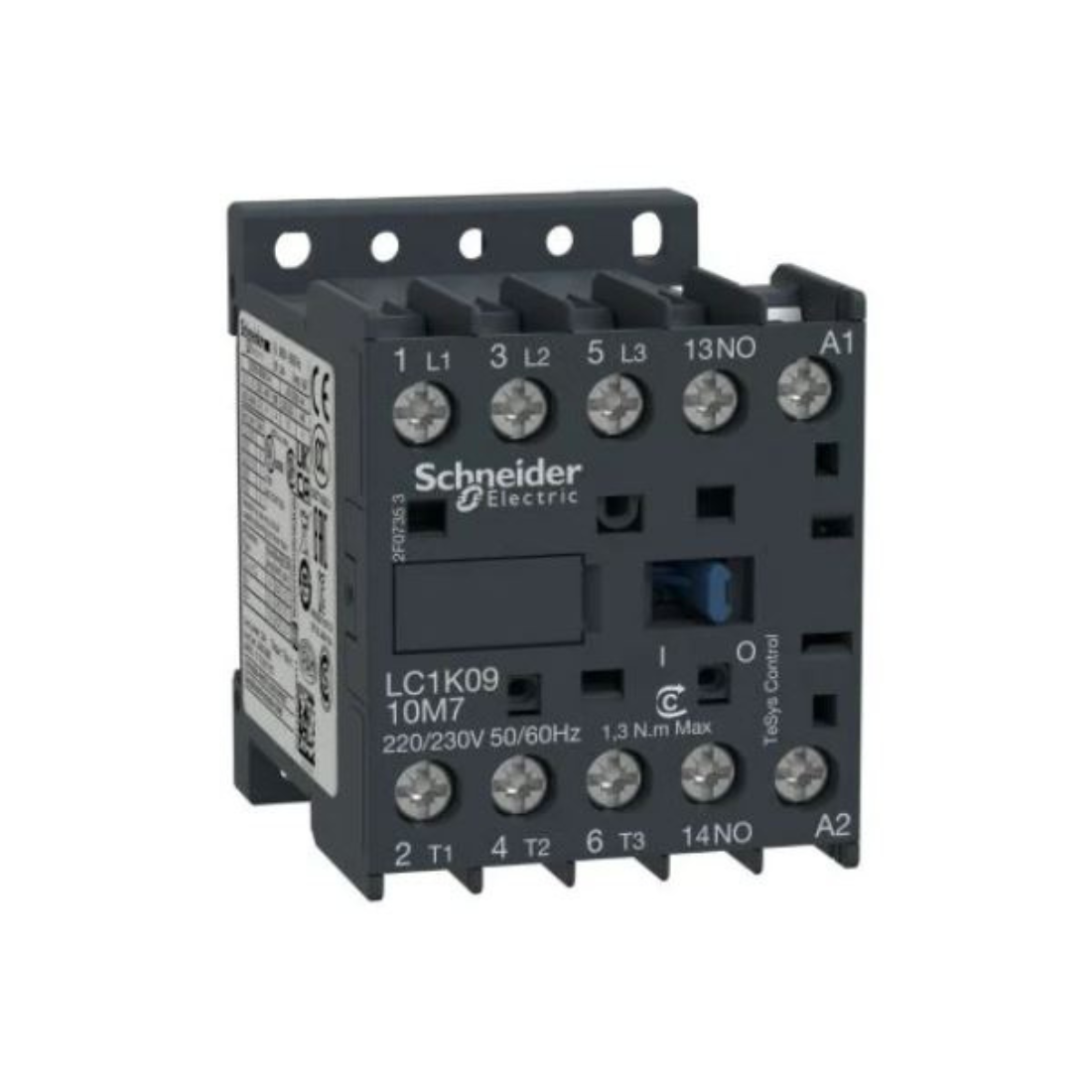

Schneider Electric TeSys K Contactor 3P AC-3 <= 440V 9A 1 NO Aux. 220-230V AC Coil LC1K0910M7

Name: Schneider Electric TeSys K Contactor 3P AC-3 <= 440V 9A 1 NO Aux. 220-230V AC Coil LC1K0910M7
Brand: Schneider Electric
Price: 43.0 AED
Availability: InStock

AED 43.00

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Contactor

Description

Schneider Electric LC1K0910M7 TeSys K Contactor is an electrically-controlled switch used for switching an electrical power circuit. It is similar to a relay but is designed to handle higher current levels. The contactor is a three-pole device. It means it can control three separate circuits or phases. AC-3 contactors are designed for duty in making and breaking power circuits under normal operating conditions.

<= 440V 9A is the maximum voltage and current that the contactor is designed to handle. It can handle up to 440 volts and 9 amperes of current. 1 NO aux. has one normally open auxiliary contact. Auxiliary contacts are additional contacts on a contactor that are used to perform functions like indicating the position of the contactor, interlocking, or controlling other devices. 220-230V AC Coil is the voltage required to activate the contactor coil. It is designed to operate at a voltage range of 220-230 volts AC.

So, in summary, Schneider Electric LC1K0910M7 TeSys K Contactor is designed to handle up to 440 volts and 9 amperes of current in three-phase AC systems. It has one normally open auxiliary contact and requires a 220-230V AC voltage to operate its coil.

Features

9A TP AC3 Contactor AC3 220-230V AC Coil
Control the flow of electric current in a circuit
3-pole contactor for connection by screw clamp terminals

Specifications

Brand : Schneider Electric

Item Name : Contactor

Model : LC1K0910M7

Conventional Free Air Thermal Current : 20 A (at 50 °C) for power circuit, 10 A (at 50 °C) for signalling circuit

Control Circuit Voltage : 220...230 V AC 50/60 Hz

Associated Fuse Rating : 25 A gG at <= 440 V for power circuit, 25 A aM for power circuit, 10 A gG for signalling circuit conforming to IEC 60947, 10 A gG for signalling circuit conforming to VDE 0660

Auxiliary Contact Composition : 1 NO

Auxiliary Contacts Type : Type instantaneous 1 NO

Average Impedance : 3 mOhm - Ith 20 A 50 Hz for power circuit

Compatibility Code : LC1K

Contactor Application : Motor Control, Resistive Load

Control Circuit Type : AC at 50/60 Hz

Control Circuit Voltage Limits : Operational: 0.85...1.1 Uc (at <50 °C), drop-out: 0.2...0.75 Uc (at <50 °C)

Device Application : Control

Flame Retardance : V1 conforming to UL 94, requirement 2 conforming to NF F 16-101, requirement 2 conforming to NF F 16-102

Irms Rated Making Capacity : 110 A AC for power circuit conforming to NF C 63-110, 110 A AC for power circuit conforming to IEC 60947, 110 A AC for signalling circuit conforming to IEC 60947

Heat Dissipation : 1.3-1.3 W

Hold-in Power Consumption in VA : 4.5-4.5 VA (at 20 °C)

Inrush Power in VA : 30-30 VA (at 20 °C)

Insulation Resistance : > 10 MOhm for Signalling Circuit

Maximum Operating Rate : 3600 cyc/h 60 °C

Mechanical Robustness : shocks contactor closed, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor closed, on Y axis: 15 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor closed, on Z axis: 15 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor opened, on X axis: 6 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor opened, on Y axis: 10 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor opened, on Z axis: 10 Gn for 11 ms conforming to IEC 60068-2-27, vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6, vibrations contactor opened: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6

Minimum Switching Current : 5 mA for signalling circuit

Minimum Switching Voltage : 17 V for signalling circuit

Motor Power kW : 2.2 kW at 220...230 V AC 50/60 Hz AC-3, 4 kW at 380...415 V AC 50/60 Hz AC-3, 4 kW at 440 V AC 50/60 Hz AC-3, 4 kW at 480 V AC 50/60 Hz AC-3, 4 kW at 500...600 V AC 50/60 Hz AC-3, 4 kW at 660...690 V AC 50/60 Hz AC-3, 2.2 kW at 400 V AC 50/60 Hz AC-4, 2.2 kW at 220...230 V AC 50/60 Hz AC-3e, 4 kW at 380...415 V AC 50/60 Hz AC-3e, 4 kW at 440 V AC 50/60 Hz AC-3e, 4 kW at 480 V AC 50/60 Hz AC-3e, 4 kW at 500...600 V AC 50/60 Hz AC-3e, 4 kW at 660...690 V AC 50/60 Hz AC-3e

Operating Altitude : 2000 m without derating

Operating Time : 10...20 ms coil de-energisation and NO opening, 10...20 ms coil energisation and NO closing

Overvoltage Category : III

Pole Contact Composition : 3 NO

Poles Description : 3P

Certifications : CB Scheme, CCC, UL, CSA, EAC, CE, UKCA

Protective Treatment : TC conforming to IEC 60068, TC conforming to DIN 50016

Range : TeSys

Rated Breaking Capacity : 110 A at 415 V conforming to IEC 60947, 110 A at 440 V conforming to IEC 60947, 80 A at 500 V conforming to IEC 60947, 110 A at 220...230 V conforming to IEC 60947, 110 A at 380...400 V conforming to IEC 60947, 70 A at 660...690 V conforming to IEC 60947

Safety Reliability Level : B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1

Signalling Circuit Frequency : <= 400 Hz

Standards : EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1

Utilisation Category : AC-4, AC-1, AC-3, AC-3e

Non Overlap Distance : 0.5 mm
