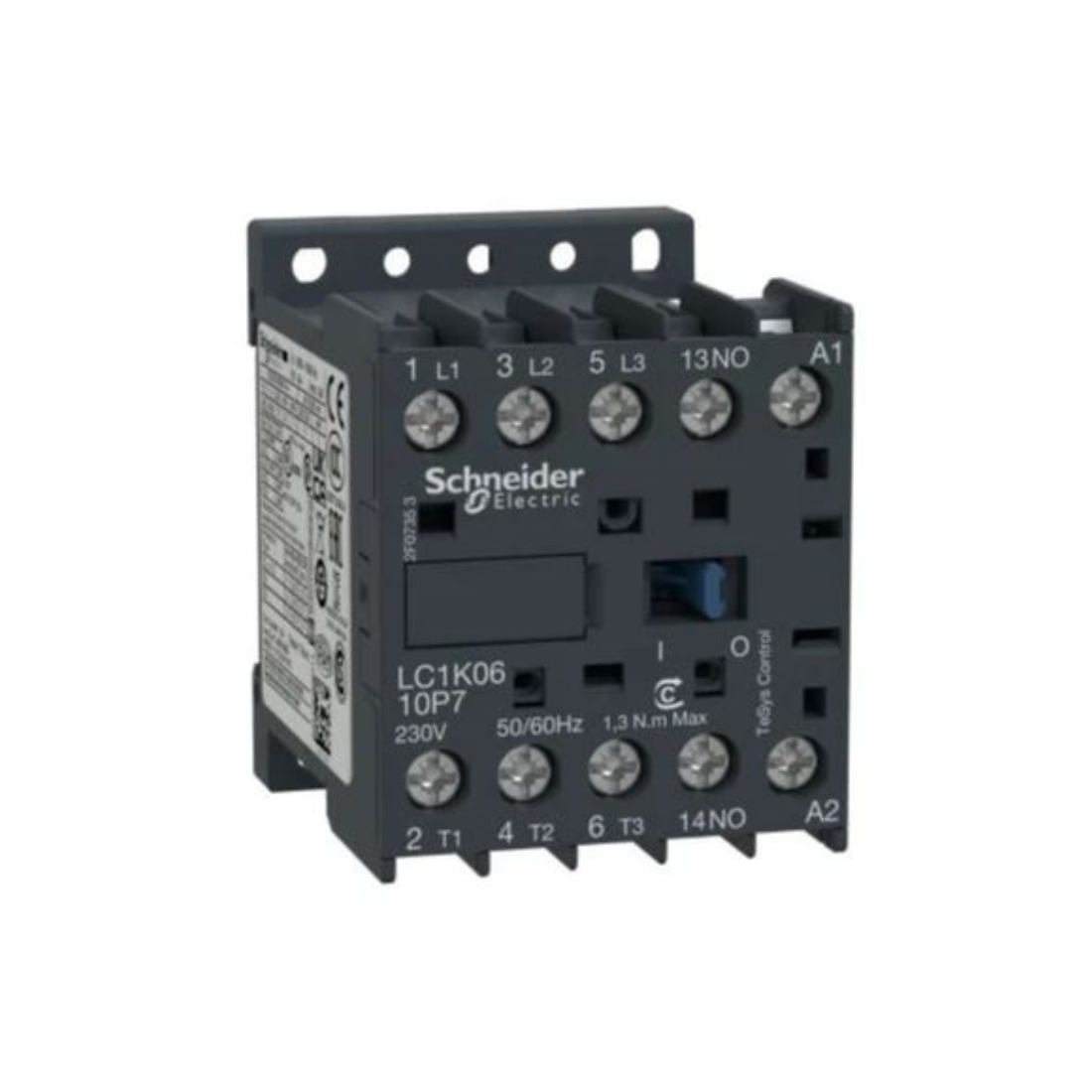

Schneider Electric TeSys K Contactor 3P AC-3 <= 440V 6A 1 NO Aux. 24V AC Coil LC1K0610B7

AED 60.90

(Price Includes VAT)

Delivery truck icon

Order Now & Get it by 2 days

Shop logo

Sold by: Marketplace

Free delivery inside Dubai on all orders with no order limit. Pay in 4 interest-free installments for Dubai orders using Tabby.
Cash on delivery payment method icon
Cash on Delivery
7 Days Returnable icon
7 Days Returnable
15+ Years Of Trust icon
15+ Years Of Trust
15+ Branches icon
15+ Branches
Quantity

Brand : Schneider Electric

Type : Contactor

Collections

Description

Schneider Electric LC1K0610B7 TeSys K Contactor is an electrical device used for switching an electrical circuit on or off. It is typically used in applications where a high-power load needs to be controlled remotely or automatically. The contactor is three-pole, meaning it has three sets of contacts. This is common in three-phase systems. AC-3 is the utilization category of the contactor. AC-3 is the category for motor starting, which means it's designed to handle the inrush current when starting a motor.

<= 440V 6A is the maximum voltage and current the contactor is designed to handle. It can handle voltages up to 440V and a current of up to 6A. The contactor has one normally open auxiliary contact. This is a separate set of contacts that are used for control or signaling purposes. 24V AC Coil is the voltage and type of the coil used to actuate the contactor. In this case, it requires a 24V AC power supply to operate.

So, to summarize, Schneider Electric LC1K0610B7 TeSys K Contactor is designed for three-phase applications with a maximum voltage of 440V and a maximum current of 6A. It has one normally open auxiliary contact, and it's operated by a 24V AC coil. It's suitable for motor starting applications.

Features
  • 6A TP AC3 Contactor AC3 24V AC Coil
  • Control the flow of electric current in a circuit
  • 3-pole contactor for connection by screw clamp terminals
Specifications
Brand Schneider Electric
Item Name Contactor
Model LC1K0610B7
Conventional Free Air Thermal Current 20 A (at 50 °C) for power circuit, 10 A (at 50 °C) for signalling circuit
Control Circuit Voltage 24 V AC 50/60 Hz
Rated Insulation Voltage Power Circuit 600 V conforming to UL 508, power circuit: 690 V conforming to IEC 60947-4-1, signalling circuit: 690 V conforming to IEC 60947-4-1, signalling circuit: 690 V conforming to IEC 60947-5-1, signalling circuit: 600 V conforming to UL 508, power circuit: 600 V conforming to CSA C22.2 No 14, signalling circuit: 600 V conforming to CSA C22.2 No 14
Associated Fuse Rating 25 A gG at <= 440 V for power circuit, 25 A aM for power circuit, 10 A gG for signalling circuit conforming to IEC 60947, 10 A gG for signalling circuit conforming to VDE 0660
Rated Impulse Withstand Voltage 8 kV
Ambient Air Temperature For Storage -50-80 °C
Auxiliary Contact Composition 1 NC
Auxiliary Contacts Type Type instantaneous 1 NC
Average Impedance 3 mOhm - Ith 20 A 50 Hz for power circuit
Compatibility Code LC1K
Connections - Terminals screw clamp terminals 1 cable(s) 1.5-4 mm²solid, screw clamp terminals 1 cable(s) 0.75-4 mm²flexible without cable end, screw clamp terminals 1 cable(s) 0.34-2.5 mm²flexible with cable end, screw clamp terminals 2 cable(s) 1.5-4 mm²solid, screw clamp terminals 2 cable(s) 0.75-4 mm²flexible without cable end, screw clamp terminals 2 cable(s) 0.34-1.5 mm²flexible with cable end
Contactor Application Motor Control
Control Circuit Type AC at 50/60 Hz
Depth 57 mm
Control Circuit Voltage Limits Operational: 0.85...1.1 Uc (at <50 °C), drop-out: 0.2...0.75 Uc (at <50 °C)
Device Application Control
Contactor Coil Voltage 24 V AC standard
Flame Retardance V1 conforming to UL 94, requirement 2 conforming to NF F 16-101, requirement 2 conforming to NF F 16-102
Irms Rated Making Capacity 110 A AC for power circuit conforming to NF C 63-110, 110 A AC for power circuit conforming to IEC 60947, 110 A AC for signalling circuit conforming to IEC 60947
Heat Dissipation 1.3-1.3 W
Hold-in Power Consumption in VA 4.5-4.5 VA (at 20 °C)
Inrush Power in VA 30-30 VA (at 20 °C)
Height 58mm
Insulation Resistance > 10 MOhm for Signalling Circuit
Maximum Operating Rate 3600 cyc/h 60 °C
Mechanical Robustness shocks contactor closed, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor closed, on Y axis: 15 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor closed, on Z axis: 15 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor opened, on X axis: 6 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor opened, on Y axis: 10 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor opened, on Z axis: 10 Gn for 11 ms conforming to IEC 60068-2-27, vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6, vibrations contactor opened: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6
Minimum Switching Current 5 mA for signalling circuit
Minimum Switching Voltage 17 V for signalling circuit
Motor Power kW 1.5 kW at 220...230 V AC 50/60 Hz AC-3, 2.2 kW at 380...415 V AC 50/60 Hz AC-3, 3 kW at 440 V AC 50/60 Hz AC-3, 3 kW at 480 V AC 50/60 Hz AC-3, 3 kW at 500...600 V AC 50/60 Hz AC-3, 3 kW at 660...690 V AC 50/60 Hz AC-3, 1.5 kW at 400 V AC 50/60 Hz AC-4, 1.5 kW at 220...230 V AC 50/60 Hz AC-3e, 2.2 kW at 380...415 V AC 50/60 Hz AC-3e, 3 kW at 440 V AC 50/60 Hz AC-3e, 3 kW at 480 V AC 50/60 Hz AC-3e, 3 kW at 500...600 V AC 50/60 Hz AC-3e, 3 kW at 660...690 V AC 50/60 Hz AC-3e
Mounting Support Plate, Rail
Operating Altitude 2000 m without derating
Operating Time 10...20 ms coil de-energisation and NO opening, 10...20 ms coil energisation and NO closing
Overvoltage Category III
Pole Contact Composition 3 NO
Poles Description 3P
Power Range 0-0.5 kW at 200-240 V 3 phases, 0.55-1 kW at 200-240 V 3 phases, 1.1-2 kW at 200-240 V 3 phases, 0-0.5 kW at 380-440 V 3 phases, 0.55-1 kW at 380-440 V 3 phases, 1.1-2 kW at 380-440 V 3 phases, 2.2-3 kW at 380-440 V 3 phases, 0-0.5 kW at 480-500 V 3 phases, 0.55-1 kW at 480-500 V 3 phases, 1.1-2 kW at 480-500 V 3 phases, 2.2-3 kW at 480-500 V 3 phases
Certifications CB Scheme, CCC, UL, CSA, EAC, CE, UKCA
Protective Treatment TC conforming to IEC 60068, TC conforming to DIN 50016
Range TeSys
Rated Breaking Capacity 110 A at 415 V conforming to IEC 60947, 110 A at 440 V conforming to IEC 60947, 80 A at 500 V conforming to IEC 60947, 110 A at 220...230 V conforming to IEC 60947, 110 A at 380...400 V conforming to IEC 60947, 70 A at 660...690 V conforming to IEC 60947
Safety Reliability Level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Rated Operational Voltage Limits Power circuit: 690 V AC 50/60 Hz, signalling circuit: <= 690 V AC 50/60 Hz
Signalling Circuit Frequency <= 400 Hz
Standards EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1
Tightening Torque 1.3 N.m - on screw clamp terminals - with screwdriver Philips No 2, 1.3 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm, 1.3 N.m - on lugs-ring terminals - with screwdriver pozidriv No 2
Utilisation Category AC-4, AC-3, AC-3e
Rated Short-time Withstand Current 90 A 50 °C - 1 s for power circuit, 85 A 50 °C - 5 s for power circuit, 80 A 50 °C - 10 s for power circuit, 60 A 50 °C - 30 s for power circuit, 45 A 50 °C - 1 min for power circuit, 40 A 50 °C - 3 min for power circuit, 20 A 50 °C - >= 15 min for power circuit, 80 A - 1 s for signalling circuit, 90 A - 500 ms for signalling circuit, 110 A - 100 ms for signalling circuit
Non Overlap Distance 0.5 mm
Electrical Durability 1.3 Mcycles 6 A AC-3 at Ue <= 440 V, 1.3 Mcycles 6 A AC-3e at Ue <= 440 V
Rated Operational Current 6 A at <= 440 V AC AC-3 for power circuit, 6 A at <= 440 V AC AC-3e for power circuit
Weight 0.18 kg
