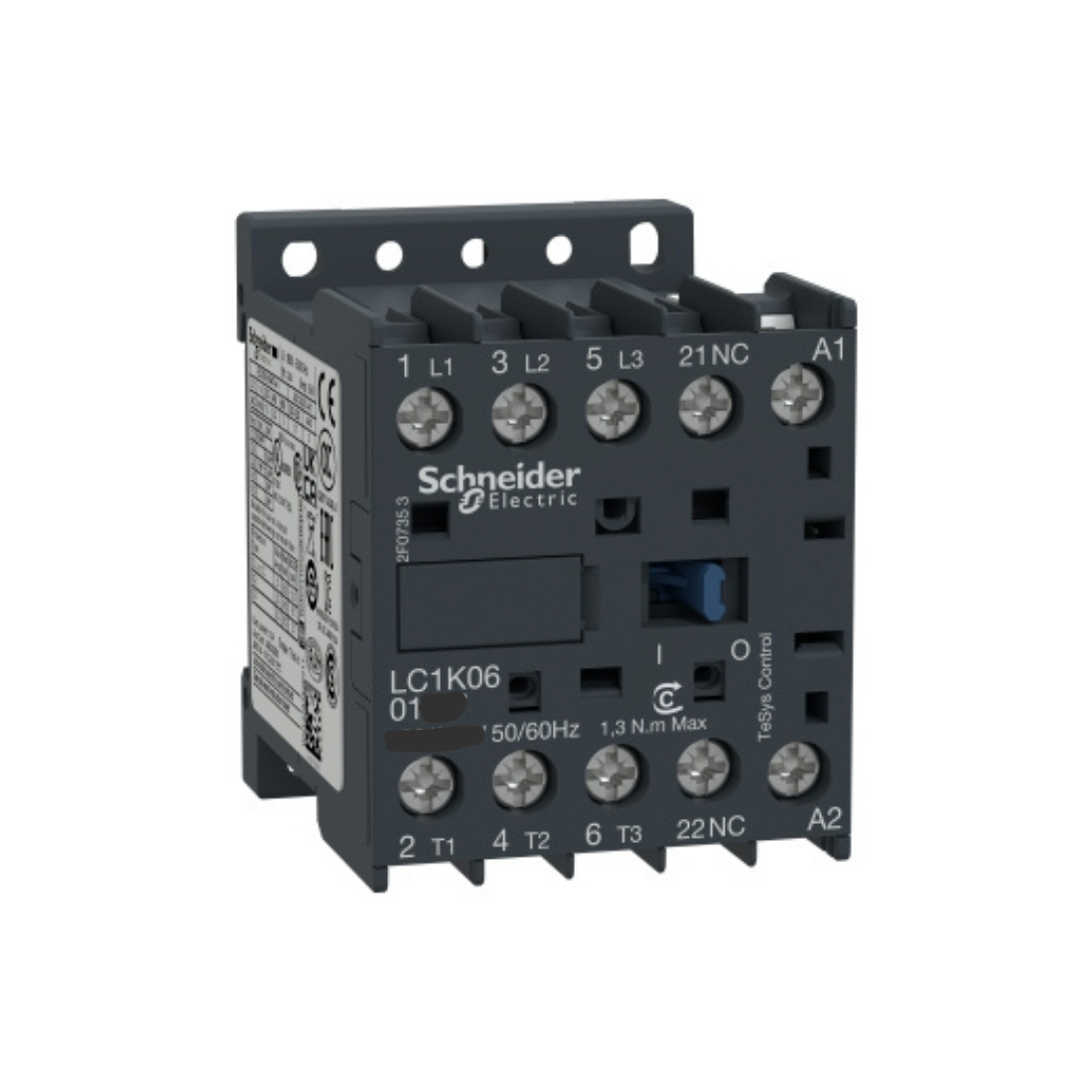

Schneider Electric TeSys K Contactor 3P AC-3 <= 440V 6A 1 NC Aux. 400-415V AC Coil LC1K0601N7
AED 64.05
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Cash on
Delivery
7 Days
Returnable
15+
Years Of Trust
15+
Branches
Brand : Schneider Electric
Type : Contactor
Collections
Description
Schneider Electric LC1K0601N7 TeSys K Contactor is typically used in applications where a high current is required for switching on and off. The contactor is a three-pole device. This means that three independent circuits or phases can be controlled. AC-3 is the category for motor loads where the contactor is used to start and stop an AC induction motor.
<= 440V 6A is the maximum voltage and rated current of the contactor. The contactor has a normally closed auxiliary contact. The 400-415 VAC coil is the voltage needed to control the contactor. In this case, the contactor is designed to be controlled by an AC coil operating in the range of 400 to 415 volts.
In summary, the Schneider Electric LC1K0601N7 TeSys K Contactor is designed for applications that require switching a three-phase AC motor load with a maximum voltage of 440 V and a maximum current of 6 A. It has an auxiliary contact for additional functions and is controlled by a 400-415V AC coil.
Features
- 6A TP AC3 Contactor AC3 400-415V AC Coil
- Control the flow of electric current in a circuit
- 3-pole contactor for connection by screw clamp terminals
| Brand | Schneider Electric |
| Item Name | Contactor |
| Model | LC1K0601N7 |
| Conventional Free Air Thermal Current | 20 A (at 50 °C) for power circuit, 10 A (at 50 °C) for signalling circuit |
| Control Circuit Voltage | 400...415 V AC 50/60 Hz |
| Rated Insulation Voltage | Power circuit: 600 V conforming to UL 508, power circuit: 690 V conforming to IEC 60947-4-1, signalling circuit: 690 V conforming to IEC 60947-4-1, signalling circuit: 690 V conforming to IEC 60947-5-1, signalling circuit: 600 V conforming to UL 508, power circuit: 600 V conforming to CSA C22.2 No 14, signalling circuit: 600 V conforming to CSA C22.2 No 14 |
| Associated Fuse Rating | 25 A gG at <= 440 V for power circuit, 25 A aM for power circuit, 10 A gG for signalling circuit conforming to IEC 60947, 10 A gG for signalling circuit conforming to VDE 0660 |
| Rated Impulse Withstand Voltage | 8 kV |
| Ambient Air Temperature For Storage | -50-80 °C |
| Auxiliary Contact Composition | 1 NC |
| Auxiliary Contacts Type | Type instantaneous 1 NC |
| Average Impedance | 3 mOhm - Ith 20 A 50 Hz for power circuit |
| Compatibility Code | LC1K |
| Connections - Terminals | Screw clamp terminals 1 cable(s) 1.5-4 mm²solid, screw clamp terminals 1 cable(s) 0.75-4 mm²flexible without cable end, screw clamp terminals 1 cable(s) 0.34-2.5 mm²flexible with cable end, screw clamp terminals 2 cable(s) 1.5-4 mm²solid, screw clamp terminals 2 cable(s) 0.75-4 mm²flexible without cable end, screw clamp terminals 2 cable(s) 0.34-1.5 mm²flexible with cable end |
| Contactor Application | Motor Control |
| Control Circuit Type | AC at 50/60 Hz |
| Depth | 57 mm |
| Control Circuit Voltage Limits | Operational: 0.85...1.1 Uc (at <50 °C), drop-out: 0.2...0.75 Uc (at <50 °C) |
| Device Application | Control |
| Flame Retardance | V1 conforming to UL 94, requirement 2 conforming to NF F 16-101, requirement 2 conforming to NF F 16-102 |
| Irms Rated Making Capacity | 110 A AC for power circuit conforming to NF C 63-110, 110 A AC for power circuit conforming to IEC 60947, 110 A AC for signalling circuit conforming to IEC 60947 |
| Height | 58mm |
| Heat Dissipation | 1.3-1.3 W |
| Hold-in Power Consumption in VA | 4.5-4.5 VA (at 20 °C) |
| Inrush Power in VA | 30-30 VA (at 20 °C) |
| IP Degree Of Protection | IP2X conforming to VDE 0106 |
| Insulation Resistance | > 10 MOhm for Signalling Circuit |
| Maximum Operating Rate | 3600 cyc/h 60 °C |
| Mechanical Robustness | shocks contactor closed, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor closed, on Y axis: 15 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor closed, on Z axis: 15 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor opened, on X axis: 6 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor opened, on Y axis: 10 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor opened, on Z axis: 10 Gn for 11 ms conforming to IEC 60068-2-27, vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6, vibrations contactor opened: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6 |
| Mechanical Durability | 10 Mcycles |
| Minimum Switching Current | 5 mA for signalling circuit |
| Minimum Switching Voltage | 17 V for signalling circuit |
| Motor Power kW | 1.5 kW at 220...230 V AC 50/60 Hz AC-3, 2.2 kW at 380...415 V AC 50/60 Hz AC-3, 3 kW at 440 V AC 50/60 Hz AC-3, 3 kW at 480 V AC 50/60 Hz AC-3, 3 kW at 500...600 V AC 50/60 Hz AC-3, 3 kW at 660...690 V AC 50/60 Hz AC-3, 1.5 kW at 400 V AC 50/60 Hz AC-4, 1.5 kW at 220...230 V AC 50/60 Hz AC-3e, 2.2 kW at 380...415 V AC 50/60 Hz AC-3e, 3 kW at 440 V AC 50/60 Hz AC-3e, 3 kW at 480 V AC 50/60 Hz AC-3e, 3 kW at 500...600 V AC 50/60 Hz AC-3e, 3 kW at 660...690 V AC 50/60 Hz AC-3e |
| Mounting Support | Plate, Rail |
| Operating Altitude | 2000 m without derating |
| Operating Time | 10...20 ms coil de-energisation and NO opening, 10...20 ms coil energisation and NO closing |
| Overvoltage Category | III |
| Pole Contact Composition | 3 NO |
| Poles Description | 3P |
| Certifications | CB Scheme, CCC, UL, CSA, EAC, CE, UKCA |
| Protective Treatment | TC conforming to IEC 60068, TC conforming to DIN 50016 |
| Range Of Product | TeSys K |
| Rated Breaking Capacity | 110 A at 415 V conforming to IEC 60947, 110 A at 440 V conforming to IEC 60947, 80 A at 500 V conforming to IEC 60947, 110 A at 220...230 V conforming to IEC 60947, 110 A at 380...400 V conforming to IEC 60947, 70 A at 660...690 V conforming to IEC 60947 |
| Safety Reliability Level | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Rated Operational Voltage Limits | Power circuit: 690 V AC 50/60 Hz, signalling circuit: <= 690 V AC 50/60 Hz |
| Signalling Circuit Frequency | <= 400 Hz |
| Standards | EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1 |
| Tightening Torque | 0.8-1.3 N.m - on screw clamp terminals Philips No 2, 0.8-1.3 N.m - on screw clamp terminals flat Ø 6 mm, 0.8-1.3 N.m - on screw clamp terminals pozidriv No 2 |
| Utilisation Category | AC-3, AC-4, AC-3e |
| Rated Short-time Withstand Current | 90 A 50 °C - 1 s for power circuit, 85 A 50 °C - 5 s for power circuit, 80 A 50 °C - 10 s for power circuit, 60 A 50 °C - 30 s for power circuit, 45 A 50 °C - 1 min for power circuit, 40 A 50 °C - 3 min for power circuit, 20 A 50 °C - >= 15 min for power circuit, 80 A - 1 s for signalling circuit, 90 A - 500 ms for signalling circuit, 110 A - 100 ms for signalling circuit |
| Non Overlap Distance | 0.5 mm |
| Rated Operational Current | 6 A at <= 440 V AC AC-3 for power circuit, 6 A at <= 440 V AC AC-3e for power circuit |
| Electrical Durability | 1.3 Mcycles 6 A AC-3 at Ue <= 440 V, 1.3 Mcycles 6 A AC-3e at Ue <= 440 V |
| Weight | 0.18 kg |
