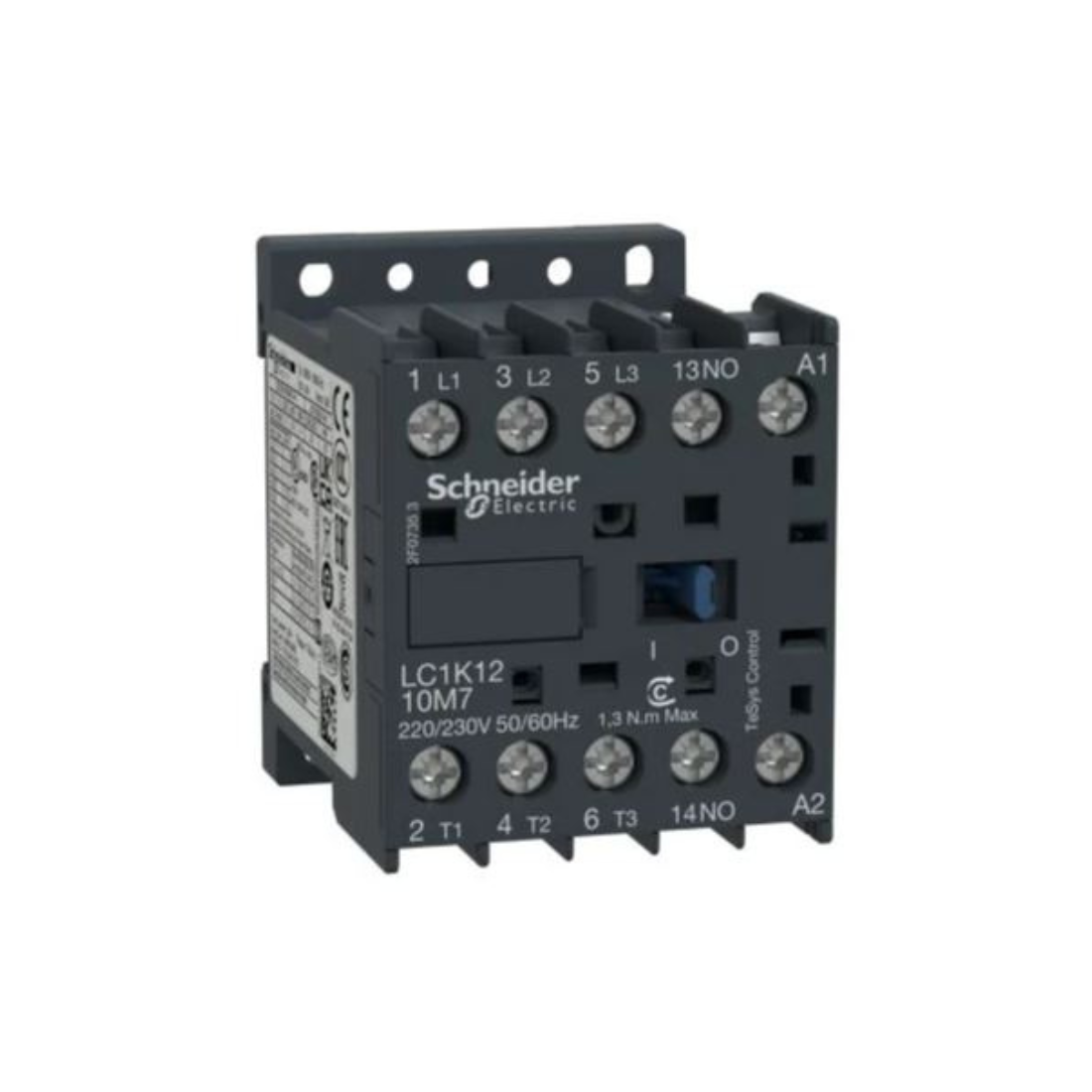

Schneider Electric TeSys K Contactor 3P AC-3 <= 440V 12A 1 NO Aux. 24V AC Coil LC1K1210B7

Name: Schneider Electric TeSys K Contactor 3P AC-3 <= 440V 12A 1 NO Aux. 24V AC Coil LC1K1210B7
Brand: Schneider Electric
Price: 45.5 AED
Availability: InStock

AED 45.50

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Contactor

Description

Schneider Electric LC1K1210B7 TeSys K Contactor is an electrical device used to control the flow of electrical current in an electrical circuit. It is essentially a high-capacity switch that can be remotely controlled to make or break electrical connections. It is a three-pole contactor, which means it can control three phases of an AC system. AC-3 is the type of load the contactor is designed to handle.

AC-3 is typically associated with the operation of squirrel cage motors. It can handle voltages up to 440V AC and is rated for a maximum current of 12A. It has one normally open (NO) auxiliary contact. This can be used for control signaling or for interlocking with other devices. The coil voltage is 24V AC. This is the voltage required to energize the contactor and close its main contacts.

In summary, Schneider Electric LC1K1210B7 TeSys K Contactor is designed for handling three-phase AC motors up to 440V at a maximum current of 12A. It has an auxiliary contact for additional control options and is activated by a 24V AC coil.

Features

12A TP AC3 Contactor AC3 24V AC Coil
Control the flow of electric current in a circuit
3-pole contactor for connection by screw clamp terminals

Specifications

Brand : Schneider Electric

Item Name : Contactor

Model : LC1K1210B7

Conventional Free Air Thermal Current : 20 A (at 50 °C) for power circuit, 10 A (at 50 °C) for signalling circuit

Control Circuit Voltage : 24 V AC 50/60 Hz

Rated Insulation Voltage Power Circuit : 600 V conforming to UL 508, power circuit: 690 V conforming to IEC 60947-4-1, signalling circuit: 690 V conforming to IEC 60947-4-1, signalling circuit: 690 V conforming to IEC 60947-5-1, signalling circuit: 600 V conforming to UL 508, power circuit: 600 V conforming to CSA C22.2 No 14, signalling circuit: 600 V conforming to CSA C22.2 No 14

Rated Impulse Withstand Voltage : 8 kV

Ambient Air Temperature For Storage : -50-80 °C

Associated Fuse Rating : 25 A gG at <= 440 V for power circuit, 25 A aM for power circuit, 10 A gG for signalling circuit conforming to IEC 60947, 10 A gG for signalling circuit conforming to VDE 0660

Auxiliary Contact Composition : 1 NO

Auxiliary Contacts Type : Type instantaneous 1 NO

Average Impedance : 3 mOhm - Ith 20 A 50 Hz for power circuit

Compatibility Code : LC1K

Connections - Terminals : Screw clamp terminals 2 cable(s) 4-4 mm²solid, screw clamp terminals 2 cable(s) 4-4 mm²flexible without cable end, screw clamp terminals 2 cable(s) 1.5-1.5 mm²flexible with cable end

Contactor Application : Motor Control, Resistive Load

Control Circuit Type : AC at 50/60 Hz

Control Circuit Voltage Limits : Operational: 0.85...1.1 Uc (at <50 °C), drop-out: 0.2...0.75 Uc (at <50 °C)

Depth : 57 mm

Device Application : Control

Flame Retardance : V1 conforming to UL 94, requirement 2 conforming to NF F 16-101, requirement 2 conforming to NF F 16-102

Irms Rated Making Capacity : 110 A AC for signalling circuit conforming to IEC 60947, 144 A AC for power circuit conforming to NF C 63-110, 144 A AC for power circuit conforming to IEC 60947

Heat Dissipation : 1.3-1.3 W

Hold-in Power Consumption in VA : 4.5-4.5 VA (at 20 °C)

Inrush Power in VA : 30-30 VA (at 20 °C)

Insulation Resistance : > 10 MOhm for Signalling Circuit

Maximum Operating Rate : 3600 cyc/h 60 °C

Mechanical Robustness : shocks contactor closed, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor closed, on Y axis: 15 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor closed, on Z axis: 15 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor opened, on X axis: 6 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor opened, on Y axis: 10 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor opened, on Z axis: 10 Gn for 11 ms conforming to IEC 60068-2-27, vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6, vibrations contactor opened: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6

Minimum Switching Current : 5 mA for signalling circuit

Minimum Switching Voltage : 17 V for signalling circuit

Motor Power kW : 4 kW at 480 V AC 50/60 Hz AC-3, 4 kW at 500...600 V AC 50/60 Hz AC-3, 4 kW at 660...690 V AC 50/60 Hz AC-3, 2.2 kW at 400 V AC 50/60 Hz AC-4, 3 kW at 220...230 V AC 50/60 Hz AC-3, 5.5 kW at 380...415 V AC 50/60 Hz AC-3, 5.5 kW at 440 V AC 50/60 Hz AC-3, 4 kW at 480 V AC 50/60 Hz AC-3e, 4 kW at 500...600 V AC 50/60 Hz AC-3e, 4 kW at 660...690 V AC 50/60 Hz AC-3e, 3 kW at 220...230 V AC 50/60 Hz AC-3e, 5.5 kW at 380...415 V AC 50/60 Hz AC-3e, 5.5 kW at 440 V AC 50/60 Hz AC-3e

Operating Altitude : 2000 m without derating

Operating Time : 10...20 ms coil de-energisation and NO opening, 10...20 ms coil energisation and NO closing

Overvoltage Category : III

Pole Contact Composition : 3 NO

Poles Description : 3P

Certifications : CB Scheme, CCC, UL, CSA, EAC, CE, UKCA

Protective Treatment : TC conforming to IEC 60068, TC conforming to DIN 50016

Range : TeSys

Rated Breaking Capacity : 110 A at 440 V conforming to IEC 60947, 80 A at 500 V conforming to IEC 60947, 70 A at 660...690 V conforming to IEC 60947

Rated Short-time Withstand Current : 115 A 50 °C - 1 s for power circuit, 105 A 50 °C - 5 s for power circuit, 100 A 50 °C - 10 s for power circuit, 75 A 50 °C - 30 s for power circuit, 55 A 50 °C - 1 min for power circuit, 50 A 50 °C - 3 min for power circuit, 80 A - 1 s for signalling circuit, 90 A - 500 ms for signalling circuit, 110 A - 100 ms for signalling circuit, 25 A 50 °C - >= 15 min for power circuit

Safety Reliability Level : B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1

Signalling Circuit Frequency : <= 400 Hz

Standards : EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1

Tightening Torque : 0.8-1.3 N.m - on screw clamp terminals Philips No 2, 0.8-1.3 N.m - on screw clamp terminals flat Ø 6 mm, 0.8-1.3 N.m - on screw clamp terminals pozidriv No 2

Utilisation Category : AC-1, AC-4, AC-3, AC-3e

Non Overlap Distance : 0.5 mm

Rated Operational Current : 20 A (at <50 °C) at <= 440 V AC AC-1 for power circuit, 12 A at <= 440 V AC AC-3 for power circuit, 16 A (at <70 °C) at 690 V AC AC-1 for power circuit, 12 A at <= 440 V AC AC-3e for power circuit

Weight : 0.18kg
