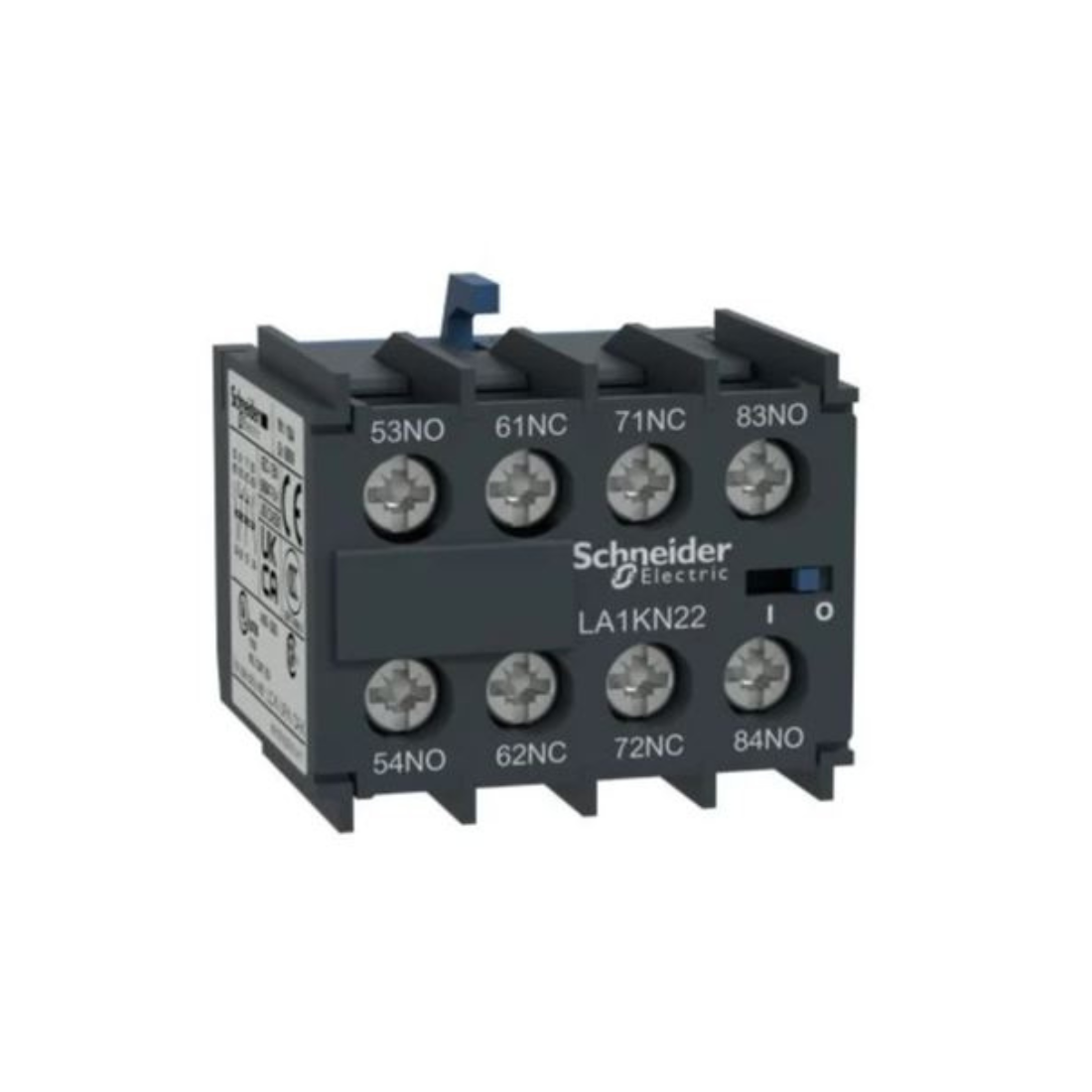

Schneider Electric TeSys K Auxiliary Contact Block 2NO + 2NC Screw Terminals LA1KN22
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Auxiliary Contact Block
Description
Schneider Electric LA1KN22 TeSys K Auxiliary Contact Block is an important component in electrical control circuits and is commonly used in conjunction with contactors or relays. It is an additional set of contacts that can be added to a primary switching device to perform auxiliary functions. These contacts are operated by the same electromagnet or mechanism that controls the main contacts.
2NO + 2NC is the auxiliary contact block that has two Normally Open contacts and two Normally Closed contacts. Normally Open (NO) contacts are in an open state when no external force is applied to them. When the coil is energized (in a relay or contactor), the contacts close, allowing the flow of electric current.
Normally Closed (NC) contacts are in a closed state when no external force is applied to them. When the coil is energized, the contacts open, breaking the flow of electric current. Screw Terminals are the connection points on the contact block where wires are attached. The screws can be loosened to insert the wire and then tightened to secure it in place. This is a common method of making electrical connections.
Schneider Electric LA1KN22 TeSys K Auxiliary Contact Block is used in various industrial and control applications where it's necessary to have additional electrical contacts that respond to the same control signals as the main device. The combination of NO and NC contacts provides flexibility in designing control circuits.
Features
- Rated operational Voltage 690 VAC
- Conventional Free Air Thermal Current 10 A
- Minimum switching current of 5mA at 17V
| Brand | Schneider Electric |
| Item Name | Auxiliary Contact Block |
| Model | LA1KN22 |
| Conventional Free Air Thermal Current | 10 A (at 60 °C) |
| Rated Insulation Voltage | 690 V conforming to IEC 60947-5-1, 600 V conforming to UL, 600 V conforming to CSA |
| Associated Fuse Rating | 10 A gG at <= 690 V conforming to IEC 60947 |
| Ambient Air Temperature For Storage | -50-80 °C |
| Compatibility Code | LA1 |
| Connections - Terminals | Screw Slamp Terminals 1 cable(s) 0.34-1.5 mm²flexible with cable end, screw clamp terminals 1 cable(s) 0.75-4 mm²flexible without cable end, screw clamp terminals 1 cable(s) 1.5-4 mm²rigid, screw clamp terminals 2 cable(s) 0.34-1.5 mm²flexible with cable end, screw clamp terminals 2 cable(s) 0.75-4 mm²flexible without cable end, screw clamp terminals 2 cable(s) 1.5-4 mm²rigid |
| Depth | 35 mm |
| Height | 30 mm |
| IP Degree Of Protection | IP20 conforming to IEC 60529 |
| Irms Rated Making Capacity | 110 A at <= 690 V AC conforming to IEC 60947 |
| Minimum Switching Current | 5 mA |
| Minimum Switching Voltage | 17 V |
| Non-overlap Time | 1.5 ms on de-energisation no overlap between NC and NO contact, 1.5 ms on energisation no overlap between NC and NO contact |
| Operating Altitude | 3000 m |
| Pole Contact Composition | 2 NO + 2 NC |
| Certifications | CB Scheme, CCC, UL, CSA, CE, UKCA |
| Protective Treatment | TH Conforming to IEC 60068 |
| Range | TeSys, TeSys Deca |
| Rated Operational Voltage Limits | 690 V AC 25...400 Hz |
| Tightening Torque | 1.3 N.m - with screwdriver Philips No 2, 1.3 N.m - with screwdriver pozidriv No 2 |
| Width | 38 mm |
| Permissible Short-time Rating | 80 A 1 s, 60 A 500 ms, 110 A 100 ms |
| Auxiliary Contacts Operation | Instantaneous |
| Shielding Continuity Terminal | Without |
| Ambient Air Temperature For Operation | -25-50 °C |
| Standards | EN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1, GB/T 14048.5, JIS C8201-5-1 |
| Environmental Characteristic | Normal Environment |
| Insulation Resistance | > 10 MOhm |
| Mounting Location | Front |
| Range Compatibility | TeSys K LC1K, TeSys K CA2K, TeSys K CA3K |
| Weight | 0.045 kg |
