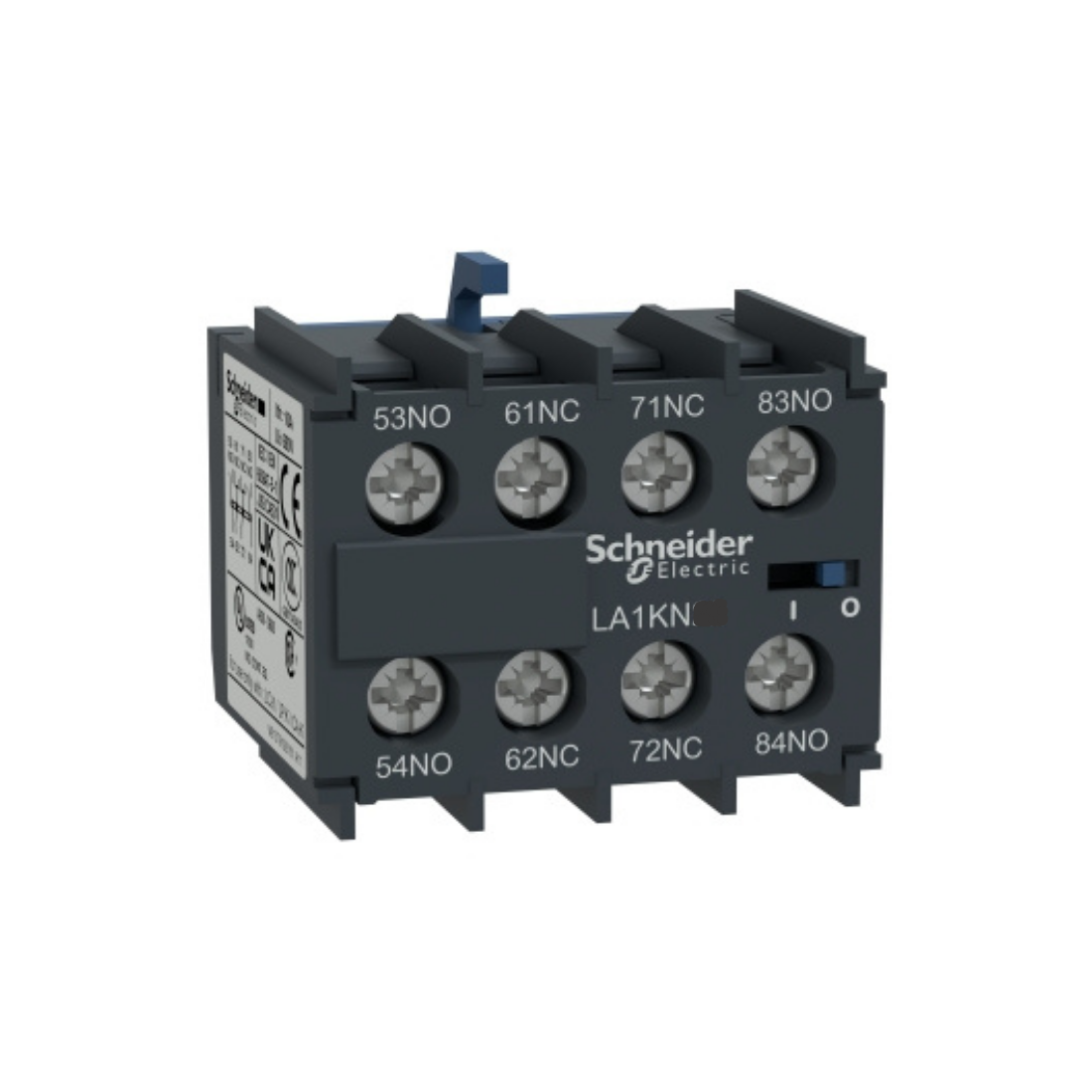

Brand : Schneider Electric

Item Name : Auxiliary Contact Block

Model : LA1KN13

Color : Dark Grey

Conventional Free Air Thermal Current : 10 A (at 50 °C)

Rated Insulation Voltage : 690 V conforming to IEC 60947-5-1, 600 V conforming to UL 60947-5-1, 600 V conforming to CSA C22.2 No 60947-5-1

Ambient Air Temperature For Storage : -50-80 °C

Associated Fuse Rating : 10 A gG at <= 690 V conforming to IEC 60947

Compatibility Code : LA1

Connections - Terminals : Screw Clamp Terminals 1 cable(s) 0.34-1.5 mm²flexible with cable end, screw clamp terminals 1 cable(s) 0.75-4 mm²flexible without cable end, screw clamp terminals 1 cable(s) 1.5-4 mm²rigid, screw clamp terminals 2 cable(s) 0.34-1.5 mm²flexible with cable end, screw clamp terminals 2 cable(s) 0.75-4 mm²flexible without cable end, screw clamp terminals 2 cable(s) 1.5-4 mm²rigid

Depth : 35 mm

Height : 30 mm

IP Degree Of Protection : IP20 conforming to IEC 60529

Irms Rated Making Capacity : 110 A at <= 690 V AC conforming to IEC 60947

Minimum Switching Current : 5 mA

Minimum Switching Voltage : 17 V

Operating Altitude : 2000 m

Pole Contact Composition : 1 NO + 3 NC

Certifications : CB Scheme, CCC, UL, CSA, CE, UKCA

Protective Treatment : TH Conforming to IEC 60068

Range Of Product : TeSys K, TeSys K control relay

Rated Operational Voltage Limits : 690 V AC 25...400 Hz

Tightening Torque : 1.3 N.m - with screwdriver Philips No 2, 1.3 N.m - with screwdriver pozidriv No 2

Width : 38mm

Non Overlap Distance : 0.5 mm

Permissible Short-time Rating : 80 A 1 s, 60 A 500 ms, 110 A 100 ms

Auxiliary Contacts Operation : Instantaneous

Shielding Continuity Terminal : Without

Ambient Air Temperature For Operation : -25-50 °C

Standards : EN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1, GB/T 14048.5, JIS C8201-5-1

Environmental Characteristic : Normal Environment

Insulation Resistance : > 10 MOhm

Mounting Location : Front

Range Compatibility : TeSys K LC1K, TeSys K CA2K, TeSys K CA3K

Weight : 0.045 kg
