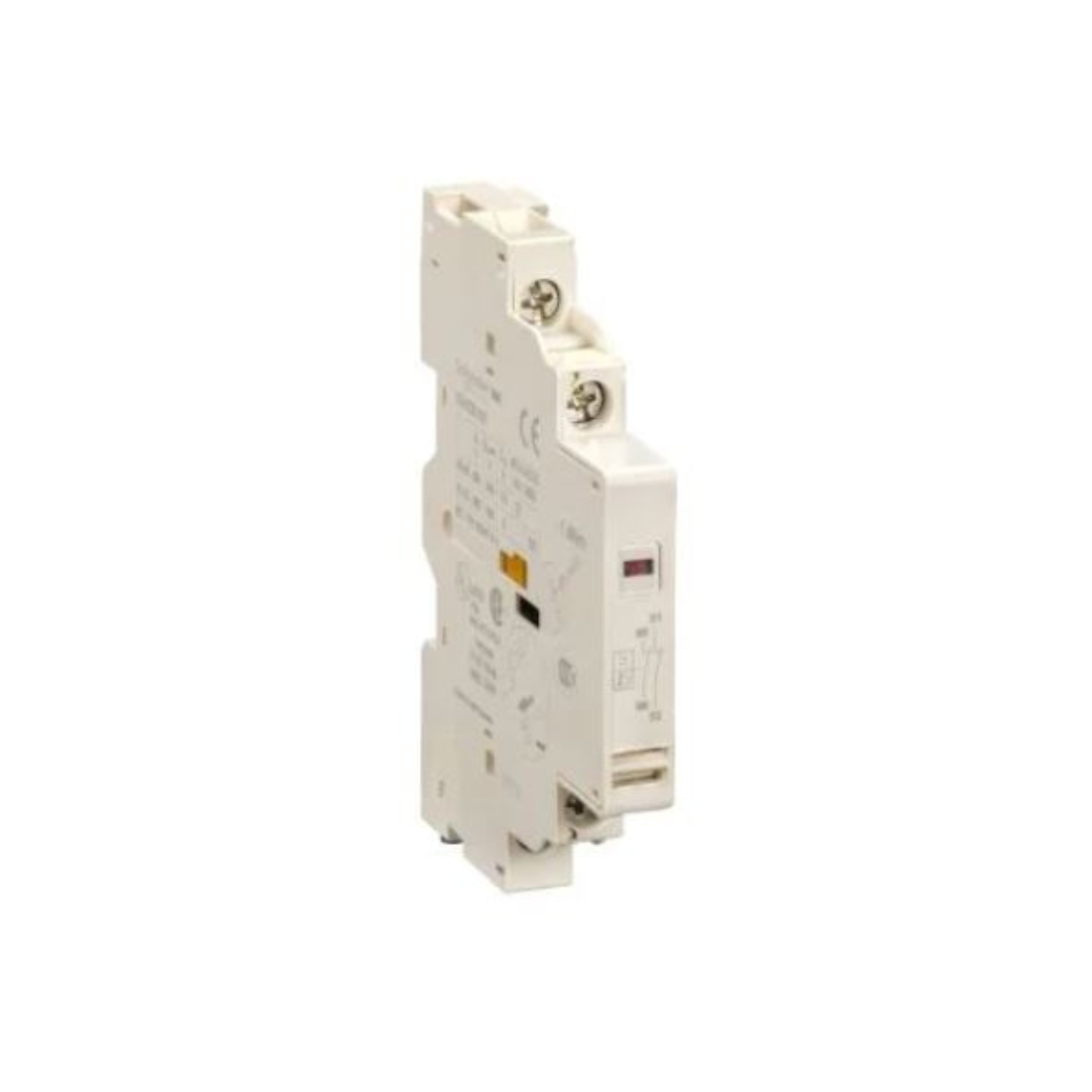

Schneider Electric TeSys GV2 & GV3 Auxiliary Contact 1NO + 1NO (Fault) GVAD1010
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Auxiliary Contact Block
Description
Schneider Electric GVAD1010 TeSys GV2 & GV3 Auxiliary Contact is used for the protection of motors against overload and short-circuit conditions. It provides additional auxiliary contacts that can be used for various purposes, such as signaling or interlocking with other devices in an electrical control circuit.
Auxiliary Contact provides two Normally Open (NO) contacts. This means that under normal conditions, the contacts are open and do not conduct electricity. When the associated motor circuit breaker is actuated or closed, these contacts will close, allowing current to flow through them.
Schneider Electric GVAD1010 TeSys GV2 & GV3 Auxiliary Contact is commonly used for control and signaling applications in industrial automation and electrical control systems.
Features
- Protect motors against overload and short-circuit conditions
- Used for control and signaling applications
- Provides two Normally Open (NO) contacts
| Brand | Schneider Electric |
| Item Name | Auxiliary Contact |
| Model | GVAD1010 |
| Conventional Free Air Thermal Current | 6 A, 2.5 A for fault signalling |
| Rated Insulation Voltage | 690 V conforming to IEC 60947-1, 300 V conforming to UL 508, 300 V conforming to CSA C22.2 No 14 |
| Compatibility Code | GVAD |
| Depth | 66 mm |
| Height | 89 mm |
| Mechanical Durability | 100000 cycles |
| Minimum Switching Current | 5 mA |
| Minimum Switching Voltage | 17 V |
| Range | TeSys, TeSys Deca |
| Rated Operational Voltage Limits | 48...690 V AC, 24...240 V DC |
| Tightening Torque | 1.4 N.m - on screw clamp terminals |
| Width | 9.3 mm |
| Auxiliary Contacts Operation | Fault Signal 1 NO |
| Environmental Characteristic | Normal Environment |
| Mounting Location | Left Sside |
| Net Weight | 0.055 kg |
