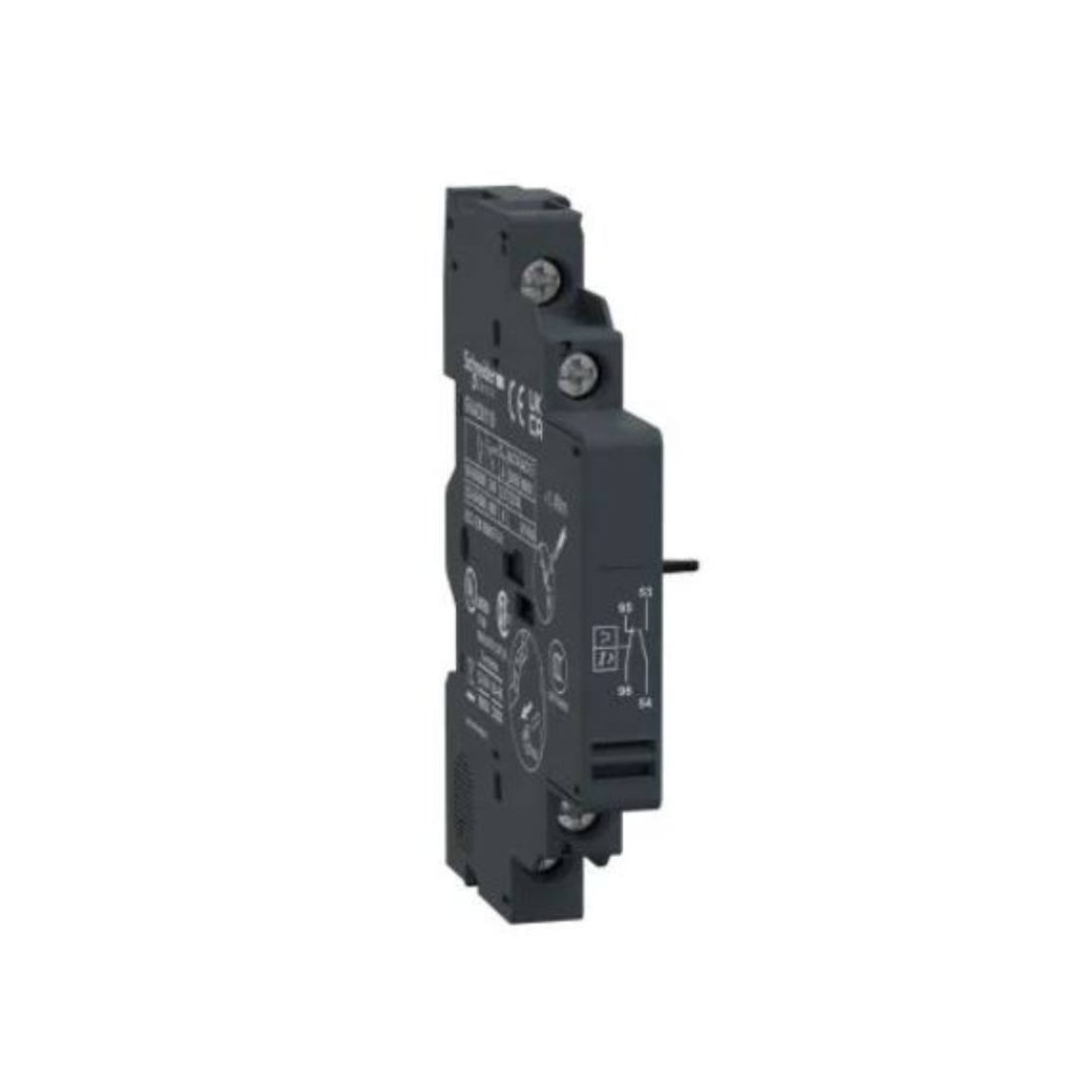

Schneider Electric TeSys GV2 & GV3 Auxiliary Contact 1 NO + 1 NC (Fault) GVAD0110
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Auxiliary Contact Block
Description
Schneider Electric GVAD0110 TeSys GV2 & GV3 Auxiliary Contact is a device used in electrical circuits to perform a secondary function related to the operation of a primary electrical device, such as a motor or a switch. It does not carry the main current but is instead used to signal or control the primary device. An auxiliary contact with "1NO + 1NC" indicates that it is a combination of one normally open (NO) contact and one normally closed (NC) contact within a single unit.
NO (Normally Open) contact is in the open state when the relay or contactor is not energized. When the relay or contactor is energized, this contact closes, allowing current to flow. NC (Normally Closed) contact is in the closed state when the relay or contactor is not energized. When the relay or contactor is energized, this contact opens, breaking the current flow.
Schneider Electric GVAD0110 TeSys GV2 & GV3 Auxiliary Contact is used in electrical control circuits to perform specific functions based on the state of the relay or contactor. They can be used to control other devices, provide feedback to a control system, or perform interlock functions.
Features
- Protect motors against overload and short-circuit conditions
- Used for control and signaling applications
- Provides 1 Normally Open (NO) contact and Normally Closed (NC)contact
Brand | Schneider Electric |
Item Name | Auxiliary Contact |
Model | GVAD0110 |
Color | Dark Grey |
Conventional Free Air Thermal Current | 6 A, 2.5 A for fault signalling |
Rated Insulation Voltage | 690 V conforming to IEC 60947-1, 300 V conforming to UL 508, 300 V conforming to CSA C22.2 No 14 |
Compatibility Code | GVAD |
Depth | 66 mm |
Height | 89 mm |
Mechanical Durability | 100000 cycles |
Minimum Switching Current | 5 mA |
Minimum Switching Voltage | 17 V |
Range | TeSys, TeSys Deca |
Rated Operational Voltage Limits | 48...690 V AC, 24...240 V DC |
Tightening Torque | 1.4 N.m - on screw clamp terminals |
Width | 9.3 mm |
Auxiliary Contacts Operation | Fault Signal 1 NO |
Environmental Characteristic | Normal Environment |
Mounting Location | Left Side |
Net Weight | 0.055 kg |
