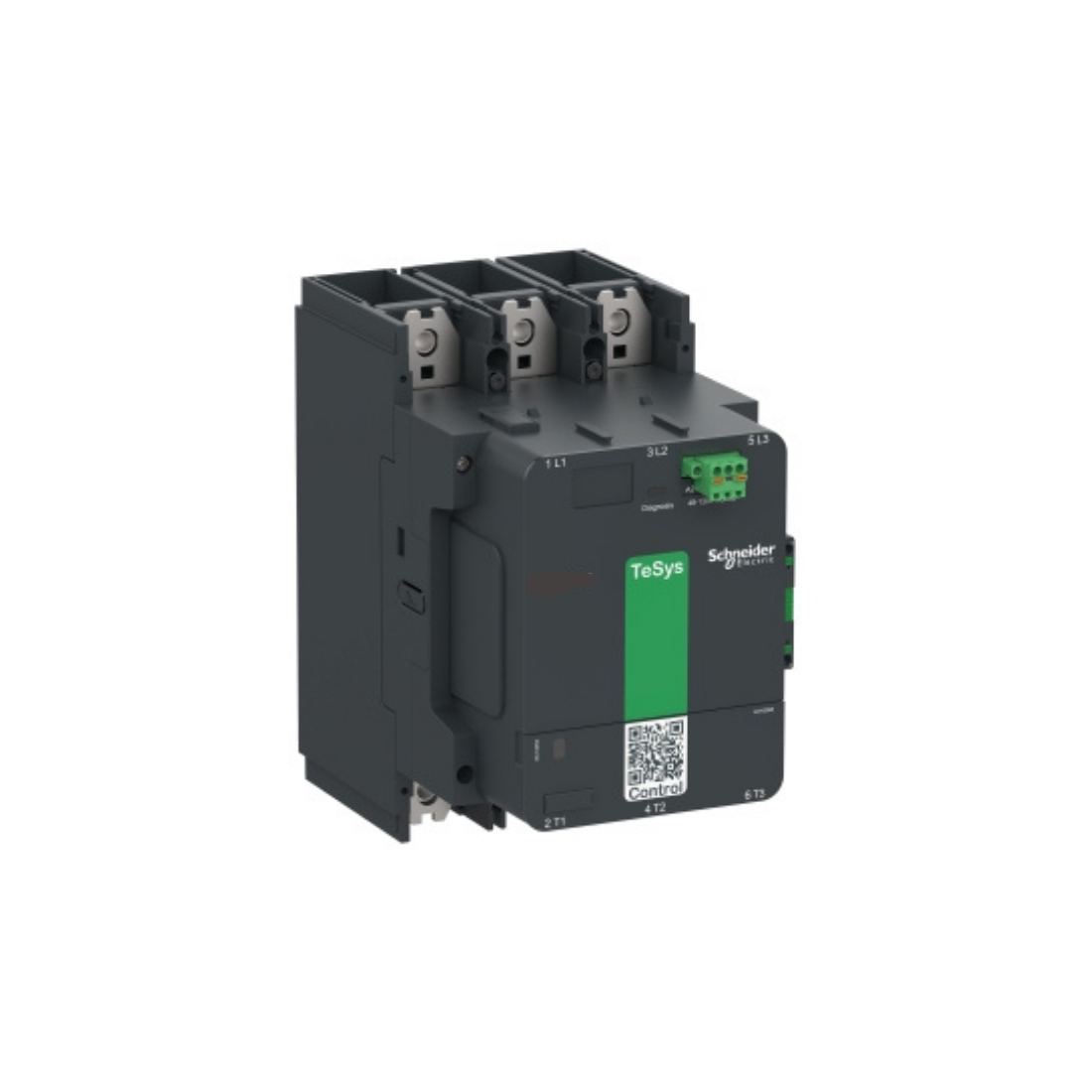

Schneider Electric TeSys Giga High Power Contactor 3 Pole (3NO) AC-3 <=440V 500A Standard Version 100-250V Wide Band AC/DC Coil LC1G500KUEN
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Contactor
Description
Schneider Electric LC1G500KUEN TeSys G High Power Contactor, 3 poles (3 NO) for category AC-3 applications up to 500 A, 315 kW at 440 V. It features a low-consumption broadband electronic coil with 100-250 V AC/DC and an Integrated, extremely reliable auxiliary contact block with 1 make contact and 1 break contact (17 V, 1 mA). Designed for demanding applications with maximum operating rates of up to 600 cycles per hour and environments up to 60°C. It guarantees high reliability and durability with a mechanical durability of 5 million cycles.
Local contact wear diagnosis (CWD) as a standard feature, continuous monitoring with status and alarm indicators. It is possible to replace the switching module (main contacts) and extend the life of the contactor. The contactor can be mounted in all quadrants, and serviced without removing wires/busbars and OLR can be mounted directly below the contactor. To be used with power connection via screw connection and control connections via spring terminals, accessible from the front for quick and easy replacement.
It offers IP2x protection on the front with covers according to IEC 60529 and VDE 0106. It can cover an ambient temperature of -25°C to 60°C and mounts directly to the panel, without derating up to an altitude of 3000 m. The dimensions are 290mm x 140mm x 209mm (height x width x depth). Compact size saves panel space. Multi-standard certification (CE, CB, CCC, cULus, EAC, KC, RCM, Marine) and Green Premium compliant (RoHs/Reach). A unique QR code provides quick access to complete product data.
Features
- 500A TP AC3 Contactor AC3 100-250V AC/DC Coil
- It has a low-consumption broadband electronic coil
- 3-pole contactor
- PVC free
- Mercury-free
| Brand | Schneider Electric |
| Item Name | Contactor |
| Model | LC1G500KUEN |
| Color | Dark Grey |
| Conventional Free Air Thermal Current | 700 A (at 40 °C) |
| Control Circuit Voltage | 100...250 V AC 50/60 Hz, 100...250 V DC |
| Rated Operational Voltage Limits | <= 1000 V AC 50/60 Hz, <= 460 V DC |
| Rated Insulation Voltage | 1000 V |
| Rated Impulse Withstand Voltage | 8 kV conforming to IEC 60947 |
| Ambient Air Temperature For Storage | -60-80 °C |
| Associated Fuse Rating | 500 A aM at <= 440 V for motor, 400 A aM at <= 690 V for motor, 800 A gG at <= 690 V |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Average Impedance | 0.00008 Ohm |
| Coil Technology | Built-in bidirectional peak limiting |
| Compatibility Code | LC1G |
| Connections - Terminals | Power circuit: bar 2 - busbar cross section: 32 x 10 mm, power circuit: lugs-ring terminals 1 185-185 mm², power circuit: bolted connection, control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 1 0.25-2.5 mm² - cable stiffness: flexible with cable end, control circuit: push-in 2 0.5-1.0 mm² with cable end, control circuit: push-in 0.75-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 0.75-2.5 mm² - cable stiffness: flexible with cable end |
| Contactor Application | Motor Control, Power Switching |
| Control Circuit Voltage Limits | Operational: 0.8 Uc Min...1.1 Uc Max (at <60 °C), drop-out: 0.1 Uc Max...0.45 Uc Min (at <60 °C) |
| Depth | 226 mm |
| Electrical Durability | 300 cycles AC-1 at Ue 400 V, 500 cycles AC-3 at Ue 400 V, 500 cycles AC-3e at Ue 400 V, 150 cycles AC-4 at Ue 400 V |
| Height | 225 mm |
| Hold-in Power Consumption in VA | 15.5-15.5 VA |
| Inrush Power in VA | 750-750 VA |
| Insulation Resistance | > 10 MOhm for Signalling Circuit |
| IP Degree Of Protection | IP2X front face with shrouds conforming to IEC 60529, IP2X front face with shrouds conforming to VDE 0106 |
| Irms Rated Making Capacity | 5090 A at 440 V |
| Maximum Operating Rate | 500 cyc/h 60 °C, 300 cyc/h AC-1, 500 cyc/h AC-3, 500 cyc/h AC-3e, 150 cyc/h AC-4 |
| Mechanical Durability | 5 Mcycles, 8 Mcycles with sub-assembly substitution |
| Mechanical Robustness | vibrations 5-300 Hz 2 gn contactor open, vibrations 5-300 Hz 4 gn contactor closed, shocks 10 gn 11 ms contactor open, shocks 15 gn 11 ms contactor closed |
| Motor Power hp | 150 hp at 200/208 V 60 Hz, 200 hp at 230/240 V 60 Hz, 400 hp at 460/480 V 60 Hz, 450 hp at 575/600 V 60 Hz |
| Motor Power kW | 147 kW at 230 V AC 50/60 Hz (AC-3e), 250 kW at 400 V AC 50/60 Hz (AC-3e), 250 kW at 415 V AC 50/60 Hz (AC-3e), 280 kW at 440 V AC 50/60 Hz (AC-3e), 315 kW at 500 V AC 50/60 Hz (AC-3e), 355 kW at 690 V AC 50/60 Hz (AC-3e), 335 kW at 1000 V AC 50/60 Hz (AC-3e), 160 kW at 230 V AC 50/60 Hz (AC-3), 250 kW at 400 V AC 50/60 Hz (AC-3), 250 kW at 415 V AC 50/60 Hz (AC-3), 315 kW at 440 V AC 50/60 Hz (AC-3), 355 kW at 500 V AC 50/60 Hz (AC-3), 355 kW at 690 V AC 50/60 Hz (AC-3), 335 kW at 1000 V AC 50/60 Hz (AC-3), 150 kW at 230 V AC 50/60 Hz (AC-4), 250 kW at 400 V AC 50/60 Hz (AC-4), 250 kW at 415 V AC 50/60 Hz (AC-4), 295 kW at 440 V AC 50/60 Hz (AC-4), 295 kW at 500 V AC 50/60 Hz (AC-4), 355 kW at 690 V AC 50/60 Hz (AC-4), 280 kW at 1000 V AC 50/60 Hz (AC-4) |
| Mounting Support | Plate |
| Operating Time | 40...70 ms closing, 15...50 ms opening |
| Overvoltage Category | III |
| Permissible Ambient Air Temperature Around The Device | -40-70 °C at Uc |
| Pole Contact Composition | 3 NO |
| Poles Description | 3P |
| Power Dissipation Per Pole | 40 W AC-1 - Ith 700 A, 20 W AC-3 - Ith 500 A |
| Certifications | CB Scheme, CCC, cULus, EAC, CE, UKCA, EU-RO-MR by DNV-GL |
| Protective Treatment | TH |
| Range Of Product | TeSys Giga |
| Rated Breaking Capacity | 4600 A at 440 V |
| Standards | EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, JIS C8201-5-1 |
| Tightening Torque | 35 N.m |
| Utilisation Category | AC-1, AC-3, AC-3e, AC-4, AC-5a, AC-5b, AC-6a, AC-6b, AC-8a, AC-8b, DC-1, DC-3, DC-5 |
| Width | 140 mm |
| Rated Short-time Withstand Current | 4.0 kA - 10 s, 2.8 kA - 30 s, 2.2 kA - 1 min, 1.5 kA - 3 min, 1.2 kA - 10 min |
| Rated Operational Current | 700 A (at <40 °C) at <= 1000 V AC-1, 500 A (at <60 °C) at <= 400 V AC-3 |
| Hold-in Power Consumption in W | 9.3-9.3 W |
| Inrush Power in W | 660 W |
| Number Of Modules Per PLC Per PC | 0 |
| Ambient Air Temperature For Operation | -25-60 °C |
| Connection Pitch | 45 mm |
| Weight | 7.5 kg |
