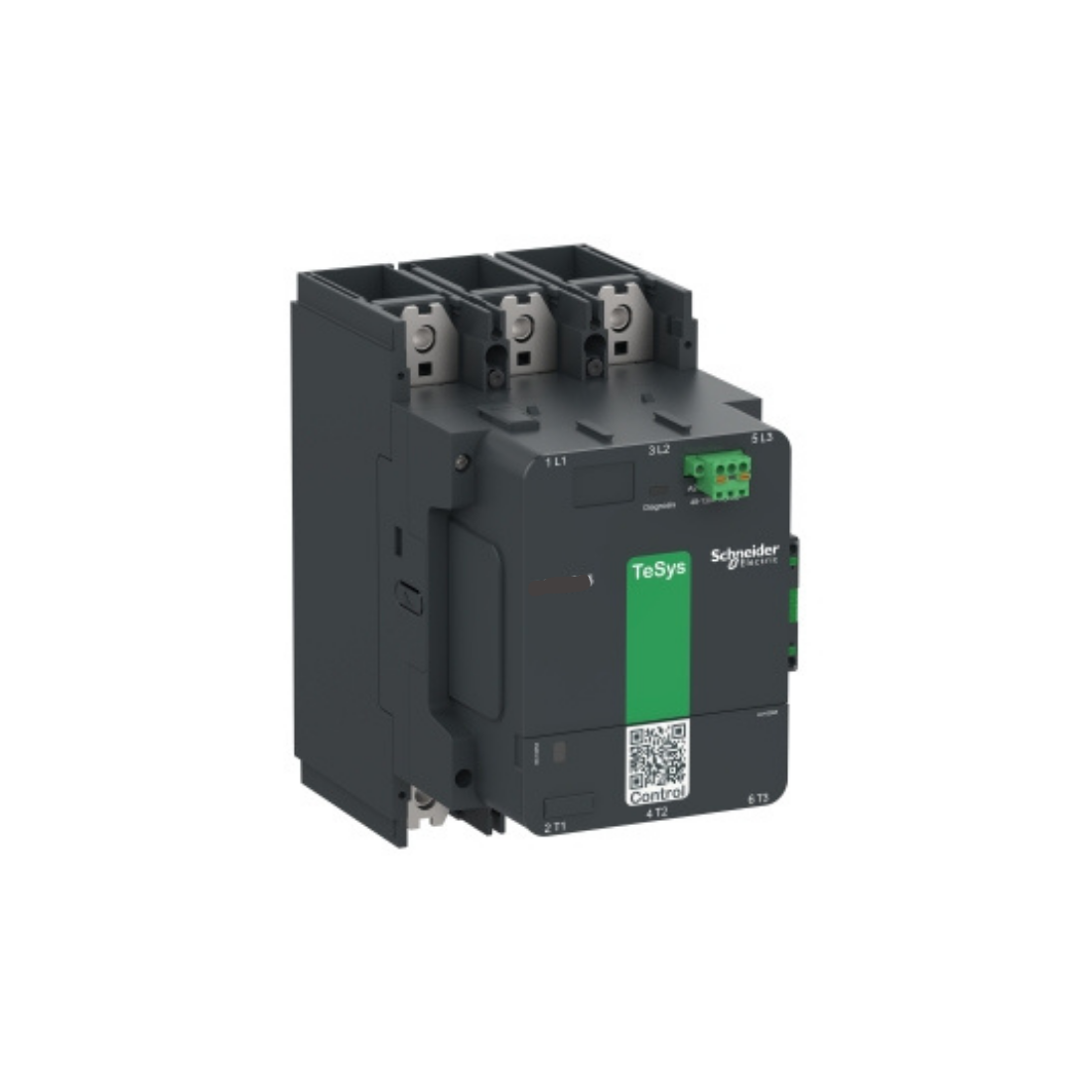

Schneider Electric TeSys Giga High Power Contactor 3 Pole (3NO) AC-3 <=440V 330A Standard Version 48-130V Wide Band AC/DC Coil LC1G330EHEN

Name: Schneider Electric TeSys Giga High Power Contactor 3 Pole (3NO) AC-3 <=440V 330A Standard Version 48-130V Wide Band AC/DC Coil LC1G330EHEN
Brand: Schneider Electric
Price: 2709.0 AED
Availability: InStock

AED 2,709.00

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Contactor

Description

Schneider Electric LC1G330EHEN TeSys G High Power Contactor, 3 poles (3 NO) for category AC-3 applications up to 330 A, 200 kW at 440 V. It has a low-consumption broadband electronic coil with 48-130 V AC/DC and an integrated, extremely reliable auxiliary contact block with 1 make contact and 1 make contact (17 V, 1 mA). Designed for demanding applications with maximum operating rates of up to 600 cycles per hour and environments up to 60°C. It guarantees high reliability and durability with a mechanical durability of 5 million cycles.

Local contact wear diagnosis (CWD) as a standard feature, continuous monitoring with status and alarm indicators. It is possible to replace the switching module (main contacts) and extend the life of the contactor. The contactor can be mounted in all quadrants, and serviced without removing wires/busbars and OLR can be mounted directly below the contactor. To be used with power connection via screw connection and control connections via spring terminals, accessible from the front for quick and easy replacement.

It offers IP2x protection on the front with covers according to IEC 60529 and VDE 0106. It can cover an ambient temperature of -25°C to 60°C and mount directly to the panel. Up to an altitude of 3000m, there is no power reduction. Compact size saves panel space. Multi-standard certification (CE, CB, CCC, cULus, EAC, KC, RCM, Marine) and Green Premium compliant (RoHs/Reach). A unique QR code provides quick access to complete product data.

Features

330A TP AC3 Contactor AC3 48-130V AC/DC Coil
It guarantees high reliability and durability with a mechanical durability of 5 million cycles.
Used to control electric motors, lighting, heating, capacitor banks, and other electrical loads.

Specifications

Brand : Schneider Electric

Item Name : Contactor

Model : LC1G330EHEN

Color : Dark Grey

Conventional Free Air Thermal Current : 440 A (at 40 °C)

Control Circuit Voltage : 48...130 V AC 50/60 Hz, 48...130 V DC

Rated Operational Voltage Limits : <= 1000 V AC 50/60 Hz, <= 460 V DC

Rated Insulation Voltage : 1000 V

Rated Impulse Withstand Voltage : 8 kV

Ambient Air Temperature For Storage : -60-80 °C

Associated Fuse Rating : 400 A aM at <= 440 V for motor, 250 A aM at <= 690 V for motor, 500 A gG at <= 690 V

Auxiliary Contact Composition : 1 NO + 1 NC

Average Impedance : 0.000144 Ohm

Coil Technology : Built-in bidirectional peak limiting

Compatibility Code : LC1G

Connections - Terminals : Power circuit: bar 2 - busbar cross section: 32 x 10 mm, power circuit: lugs-ring terminals 1 185-185 mm², power circuit: bolted connection, control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 1 0.25-2.5 mm² - cable stiffness: flexible with cable end, control circuit: push-in 2 0.5-1.0 mm² with cable end, control circuit: push-in 0.75-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 0.75-2.5 mm² - cable stiffness: flexible with cable end

Contactor Application : Motor Control, Power Switching

Control Circuit Voltage Limits : Operational: 0.8 Uc Min...1.1 Uc Max (at <60 °C), drop-out: 0.1 Uc Max...0.45 Uc Min (at <60 °C)

Depth : 226 mm

Electrical Durability : 300 cycles AC-1 at Ue 400 V, 500 cycles AC-3 at Ue 400 V, 500 cycles AC-3e at Ue 400 V, 150 cycles AC-4 at Ue 400 V

Height : 225 mm

Hold-in Power Consumption in VA : 17.6-17.6 VA

Inrush Power in VA : 780-780 VA

Insulation Resistance : > 10 MOhm for Signalling Circuit

IP Degree Of Protection : IP2X front face with shrouds conforming to IEC 60529, IP2X front face with shrouds conforming to VDE 0106

Irms Rated Making Capacity : 3830 A at 440 V

Maximum Operating Rate : 500 cyc/h 60 °C, 300 cyc/h AC-1, 500 cyc/h AC-3, 500 cyc/h AC-3e, 150 cyc/h AC-4

Mechanical Durability : 5 Mcycles, 8 Mcycles with sub-assembly substitution

Mechanical Robustness : Vibrations 5-300 Hz 2 gn contactor open, vibrations 5-300 Hz 4 gn contactor closed, shocks 10 gn 11 ms contactor open, shocks 15 gn 11 ms contactor closed

Motor Power hp : 100 hp at 200/208 V 60 Hz, 125 hp at 230/240 V 60 Hz, 250 hp at 460/480 V 60 Hz, 300 hp at 575/600 V 60 Hz

Motor Power kW : 90 kW at 230 V AC 50/60 Hz (AC-3e), 160 kW at 400 V AC 50/60 Hz (AC-3e), 160 kW at 415 V AC 50/60 Hz (AC-3e), 185 kW at 440 V AC 50/60 Hz (AC-3e), 200 kW at 500 V AC 50/60 Hz (AC-3e), 220 kW at 690 V AC 50/60 Hz (AC-3e), 185 kW at 1000 V AC 50/60 Hz (AC-3e), 90 kW at 230 V AC 50/60 Hz (AC-3), 160 kW at 400 V AC 50/60 Hz (AC-3), 160 kW at 415 V AC 50/60 Hz (AC-3), 200 kW at 440 V AC 50/60 Hz (AC-3), 200 kW at 500 V AC 50/60 Hz (AC-3), 220 kW at 690 V AC 50/60 Hz (AC-3), 185 kW at 1000 V AC 50/60 Hz (AC-3), 90 kW at 230 V AC 50/60 Hz (AC-4), 160 kW at 400 V AC 50/60 Hz (AC-4), 160 kW at 415 V AC 50/60 Hz (AC-4), 185 kW at 440 V AC 50/60 Hz (AC-4), 200 kW at 500 V AC 50/60 Hz (AC-4), 220 kW at 690 V AC 50/60 Hz (AC-4), 185 kW at 1000 V AC 50/60 Hz (AC-4)

Mounting Support : Plate

Operating Time : 40...70 ms closing, 15...50 ms opening

Overvoltage Category : III

Permissible Ambient Air Temperature Around The Device : -40-70 °C at Uc

Pole Contact Composition : 3 NO

Poles Description : 3P

Power Dissipation Per Pole : 30 W AC-1 - Ith 440 A, 16 W AC-3 - Ith 330 A

Certifications : CB Scheme, CCC, cULus, EAC, CE, UKCA, EU-RO-MR by DNV-GL

Protective Treatment : TH

Range Of Product : TeSys Giga

Rated Breaking Capacity : 2940 A at 440 V

Signalling Circuit Frequency : 25...400 Hz

Standards : EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, JIS C8201-5-1

Tightening Torque : 35 N.m

Utilisation Category : AC-1, AC-3, AC-3e, AC-4, AC-5a, AC-5b, AC-6a, AC-6b, AC-8b, AC-8a, DC-1, DC-3, DC-5

Width : 140 mm

Rated Short-time Withstand Current : 2.65 kA - 10 s, 1.8 kA - 30 s, 1.3 kA - 1 min, 0.9 kA - 3 min, 0.75 kA - 10 min

Rated Operational Current : 440 A (at <40 °C) at <= 1000 V AC-1, 330 A (at <60 °C) at <= 400 V AC-3

Hold-in Power Consumption in W : 7.8-7.8 W

Inrush Power in W : 695 W

Number Of Modules Per PLC Per PC : 0

Ambient Air Temperature For Operation : -25-60 °C

Connection Pitch : 45 mm

Weight : 7.5 kg
