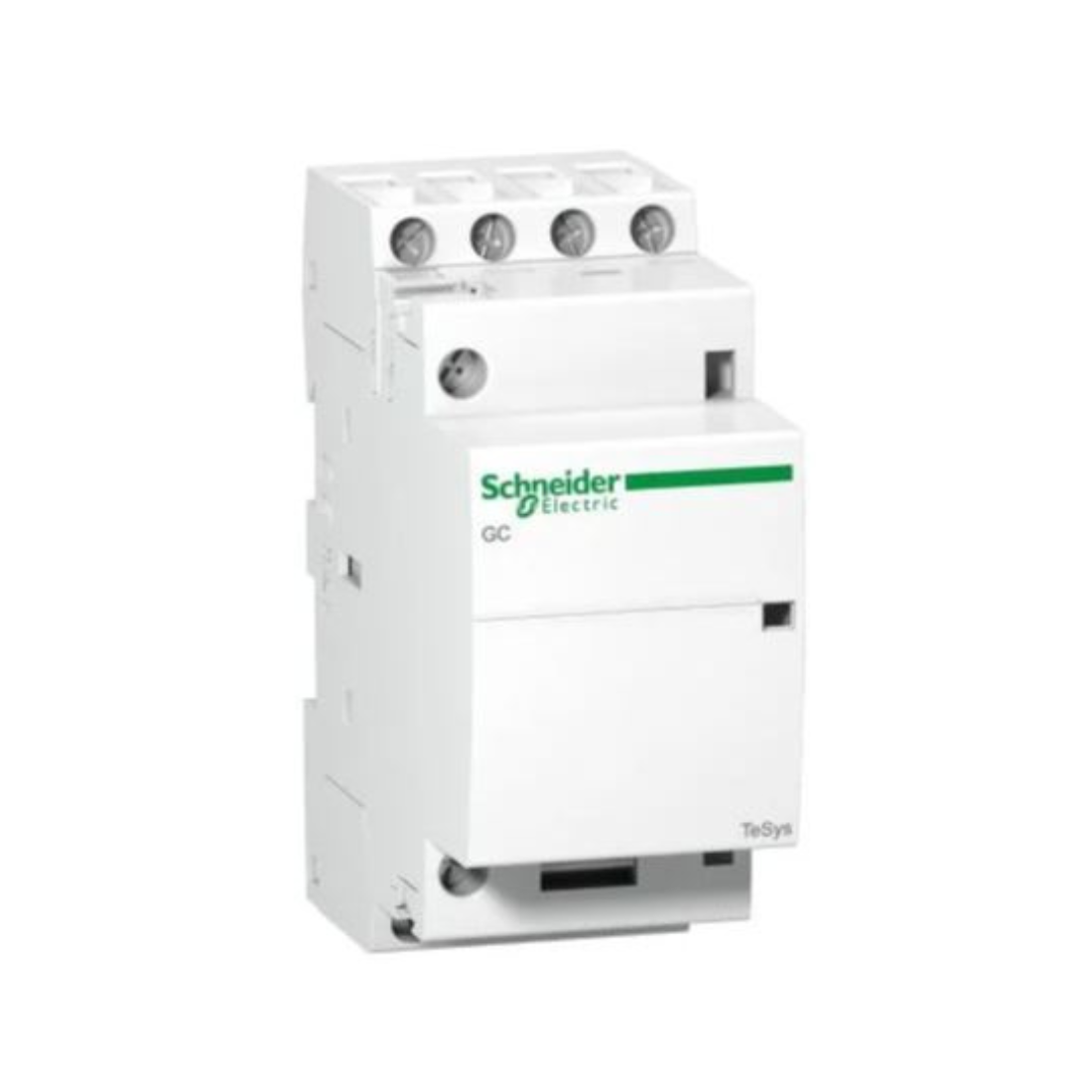

Schneider Electric TeSys GC Modular Contactor AC-7a 25A 4NO 220 to 240VAC 60Hz Coil GC2540M6
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Modular Contactor
Description
Schneider Electric GC2540M6 TeSys GC Modular Contactor is a type of electrical switch designed to control an electrical load circuit by opening and closing contacts. 25 A is the maximum current the contactor can safely handle. AC-7a is the use category that defines the type of electrical load for which the contactor is designed.
AC-7a typically refers to contactors designed to switch small inductive loads, such as electric motors. There are four normally open contacts. 220-240 VAC is the voltage needed to power the contactor coil. 60 Hz is the frequency of the AC power supply that the contactor is designed for. It is designed for a 60 Hz power supply.
Features
- 25A 4P Modular Contactor 220-240V Coil
- Modular Contactor has utilization category of AC-7A
- It has an Electrical endurance of 100,000 cycles
- Safe and simple to use and easy to install
| Brand | Schneider Electric |
| Item Name | Modular Contactor |
| Model | GC2540M6 |
| Color | White |
| Conventional Free Air Thermal Current | 25 A (at 50 °C) for power circuit |
| Rated Operational Current | 25 A AC-7A, 8.5 A AC-7B |
| Control Circuit Voltage | 220...240 V AC 50 Hz |
| Rated Operational Voltage | <= 250 V AC |
| Rated Insulation Voltage | 500 V conforming to IEC 61095, 500 V conforming to VDE 0110 |
| Rated Impulse Withstand Voltage | 4 kV |
| Ambient Air Temperature For Operation | -5-50 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Associated Fuse Rating | 25 A gL at <= 440 V for power circuit |
| Average Impedance | 2.5 mOhm - Ith 25 A 50 Hz for power circuit |
| Compatibility Code | Modular Standard Contactor |
| Connections - Terminals | Control Circuit: screw clamp terminals 1 cable(s) 2.5-2.5 mm²flexible without cable end, power circuit: screw clamp terminals 2 cable(s) 1.5-1.5 mm²flexible with cable end, power circuit: screw clamp terminals 1 cable(s) 6-6 mm²solid without cable end, power circuit: screw clamp terminals 2 cable(s) 4-4 mm²solid without cable end, control circuit: screw clamp terminals 2 cable(s) 2.5-2.5 mm²flexible without cable end, control circuit: screw clamp terminals 1 cable(s) 2.5-2.5 mm²flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1.5-1.5 mm²flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 1.5-1.5 mm²solid without cable end, control circuit: screw clamp terminals 2 cable(s) 1.5-1.5 mm²solid without cable end, power circuit: screw clamp terminals 1 cable(s) 6-6 mm²flexible without cable end, power circuit: screw clamp terminals 2 cable(s) 4-4 mm²flexible without cable end, power circuit: screw clamp terminals 1 cable(s) 6-6 mm²flexible with cable end |
| Contactor Application | Motor Control, Heating, Lighting |
| Control Circuit Type | AC at 50 Hz |
| Control Circuit Voltage Limits | Drop-out: 0.2...0.75 Uc at 50 Hz (at <50 °C), operational: 0.85...1.1 Uc at 50 Hz (at <50 °C) |
| Control Type | Remote Control |
| Depth | 62.5 mm |
| Heat Dissipation | 1.6-1.6 W at 50/60 Hz |
| Height | 85 mm |
| Hold-in Power Consumption in VA | 4.6-4.6 VA 50 Hz (at 20 °C) |
| Inrush Power in VA | 34-34 VA 50 Hz (at 20 °C) |
| Insulation Resistance | > 10 MOhm for Signalling Circuit |
| IP Degree Of Protection | IP40 conforming to VDE 0106 (in enclosure), IP20 conforming to VDE 0106 |
| Irms Rated Making Capacity | 68 A at 400 V AC for power circuit conforming to IEC 61095 |
| Maximum Operating Rate | 300 cyc/h 50 °C |
| Mechanical Durability | 1000000 cycles |
| Mechanical Robustness | shocks contactor open: 10 Gn for 11 ms, shocks contactor closed: 15 Gn for 11 ms, vibrations contactor open: 2 Gn, 5...300 Hz, vibrations contactor closed: 3 Gn, 5...300 Hz |
| Mounting Mode | Clip-On |
| Mounting Support | DIN Rail |
| Operating Altitude | <= 3000 m |
| Operating Position | 30°/vertical |
| Operating Time | 10...25 ms opening, 10...30 ms closing |
| Pole Contact Composition | 4 NO |
| Poles Description | 4P |
| Power Dissipation Per Pole | 1.6 W |
| Protective Treatment | TC |
| Range | TeSys |
| Rated Breaking Capacity | 68 A at 400 V for power circuit conforming to IEC 61095 |
| Rated Operational Voltage Limits | <= 250 V AC |
| Standards | IEC 61095, IEC 60947-5 |
| Tightening Torque | Control Circuit: 0.8 N.m - on screw clamp terminals, power circuit: 0.8 N.m - on screw clamp terminals |
| Utilisation Category | AC-7B, AC-7A |
| Total number of 18 mm modules | 2 |
| Width | 36mm |
| Rated Short-time Withstand Current | 200 A 40 °C - 10 s for power circuit, 62 A 40 °C - 30 s for power circuit |
| Electrical Durability | AC-7A: 100000 cycles, AC-7B: 100000 cycles |
| Ambient Air Temperature For Operation | -5-50 °C |
| Weight | 0.23kg |
