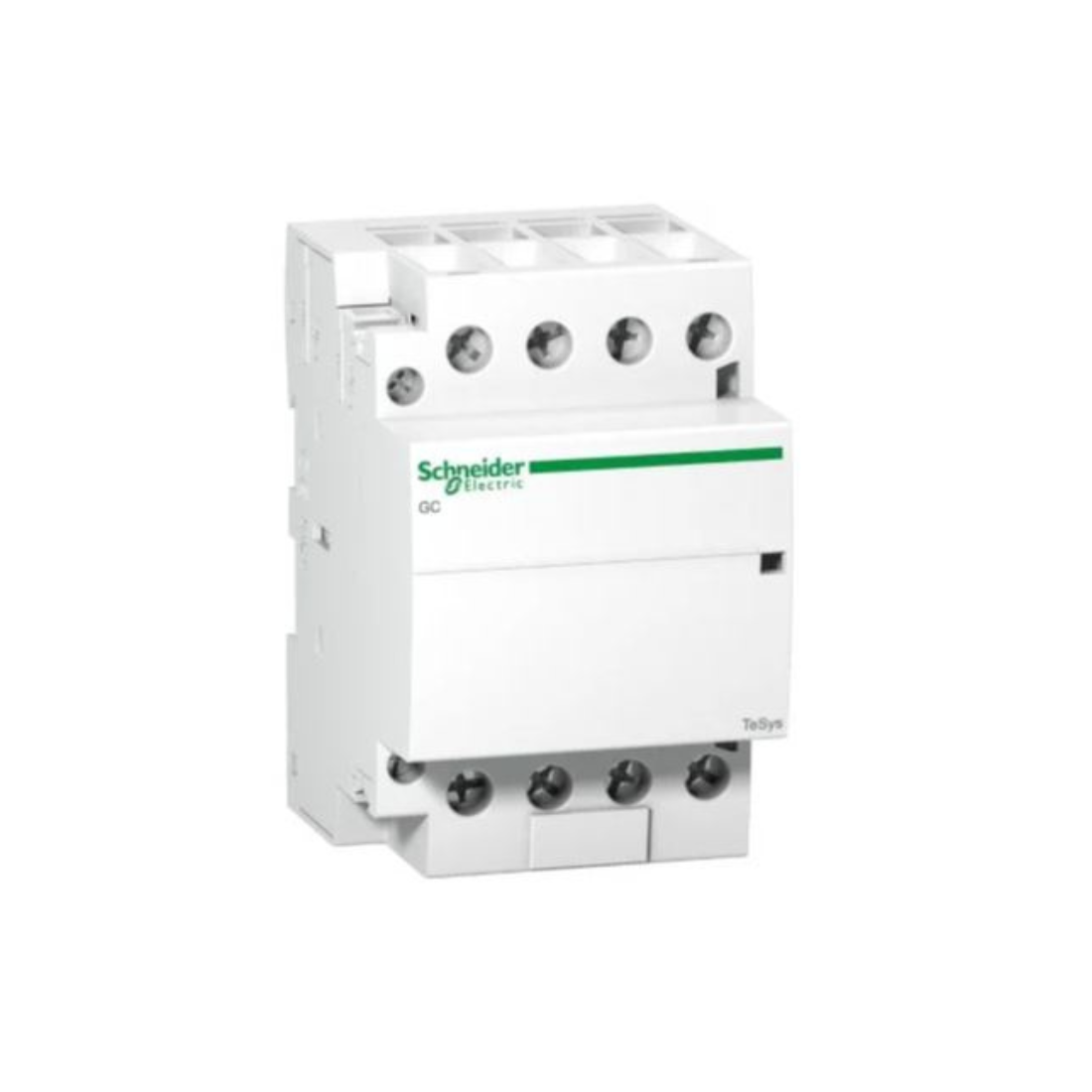

Schneider Electric TeSys GC Modular Contactor 40A 4 NO 220-240V AC Coil GC4040M5
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Modular Contactor
Description
Schneider Electric GC4040M5 TeSys GC Modular Contactor is an electrical switching device that is used to control the switching of electrical loads in various applications. It is capable of handling up to 40 amperes of current and has four normally open contacts, which means it can control four separate electrical circuits. The coil voltage specification (220-240V AC) indicates the voltage required to energize the coil and close the contacts.
Schneider Electric GC4040M5 TeSys GC Modular Contactor is commonly used in electrical systems to remotely control high-current circuits. They are often used in applications like motor control, lighting control, heating systems, and more.
Features
- 40A 4P Modular Contactor 220-240V Coil
- Used to control electrical loads
| Brand | Schneider Electric |
| Item Name | Modular Contactor |
| Model | GC4040M5 |
| Color | White |
| Conventional Free Air Thermal Current | 40 A (at 50 °C) for power circuit |
| Rated Operational Current | 40 A AC-7A, 15 A AC-7B |
| Control Circuit Voltage | 220...240 V AC 50 Hz |
| Rated Operational Voltage | <= 250 V AC |
| Rated Insulation Voltage | 500 V conforming to IEC 61095, 500 V conforming to VDE 0110 |
| Rated Impulse Withstand Voltage | 4 kV |
| Ambient Air Temperature For Operation | -5-50 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Associated Fuse Rating | 40 A gL at <= 440 V for power circuit |
| Average Impedance | 2 mOhm - Ith 40 A 50 Hz for power circuit |
| Compatibility Code | Modular Standard Contactor |
| Connections - Terminals | control circuit: screw clamp terminals 1 cable(s) 2.5-2.5 mm²flexible without cable end, power circuit: screw clamp terminals 2 cable(s) 4-4 mm²flexible with cable end, power circuit: screw clamp terminals 1 cable(s) 25-25 mm²solid without cable end, power circuit: screw clamp terminals 2 cable(s) 6-6 mm²solid without cable end, control circuit: screw clamp terminals 2 cable(s) 2.5-2.5 mm²flexible without cable end, control circuit: screw clamp terminals 1 cable(s) 2.5-2.5 mm²flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1.5-1.5 mm²flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 1.5-1.5 mm²solid without cable end, control circuit: screw clamp terminals 2 cable(s) 1.5-1.5 mm²solid without cable end, power circuit: screw clamp terminals 1 cable(s) 25-25 mm²flexible without cable end, power circuit: screw clamp terminals 2 cable(s) 16-16 mm²flexible without cable end, power circuit: screw clamp terminals 1 cable(s) 16-16 mm²flexible with cable end |
| Contactor Application | Motor Control, Heating, Lighting |
| Control Circuit Type | AC at 50 Hz |
| Control Circuit Voltage Limits | Drop-out: 0.2...0.75 Uc at 50 Hz (at <50 °C), operational: 0.85...1.1 Uc at 50 Hz (at <50 °C) |
| Control Type | Remote Control |
| Depth | 62.5 mm |
| Heat Dissipation | 2.1-2.1 W at 50/60 Hz |
| Height | 85 mm |
| Hold-in Power Consumption in VA | 6.5-6.5 VA 50 Hz (at 20 °C) |
| Inrush Power in VA | 53-53 VA 50 Hz (at 20 °C) |
| Insulation Resistance | > 10 MOhm for Signalling Circuit |
| IP Degree Of Protection | IP40 conforming to VDE 0106 (in enclosure), IP20 conforming to VDE 0106 |
| Irms Rated Making Capacity | 120 A at 400 V AC for power circuit conforming to IEC 61095 |
| Maximum Operating Rate | 300 cyc/h 50 °C |
| Mechanical Durability | 1000000 cycles |
| Mechanical Robustness | shocks contactor open: 10 Gn for 11 ms, shocks contactor closed: 15 Gn for 11 ms, vibrations contactor open: 2 Gn, 5...300 Hz, vibrations contactor closed: 3 Gn, 5...300 Hz |
| Mounting Mode | Clip-On |
| Mounting Support | DIN Rail |
| Operating Altitude | <= 3000 m |
| Operating Position | 30°/vertical |
| Operating Time | 10...25 ms opening, 10...30 ms closing |
| Pole Contact Composition | 4 NO |
| Poles Description | 4P |
| Power Dissipation Per Pole | 3.2 W |
| Protective Treatment | TC |
| Range | TeSys |
| Rated Breaking Capacity | 120 A at 400 V for power circuit conforming to IEC 61095 |
| Rated Operational Voltage Limits | <= 250 V AC |
| Standards | IEC 61095, IEC 60947-5 |
| Tightening Torque | control circuit: 0.8 N.m - on screw clamp terminals, power circuit: 2 N.m - on screw clamp terminals |
| Utilisation Category | AC-7B, AC-7A |
| Total number of 18 mm modules | 3 |
| Width | 54mm |
| Rated Short-time Withstand Current | 320 A 40 °C - 10 s for power circuit, 100 A 40 °C - 30 s for power circuit |
| Electrical Durability | AC-7A: 100000 cycles, AC-7B: 100000 cycles |
| Ambient Air Temperature For Operation | -5-50 °C |
| Weight | 0.39 kg |
