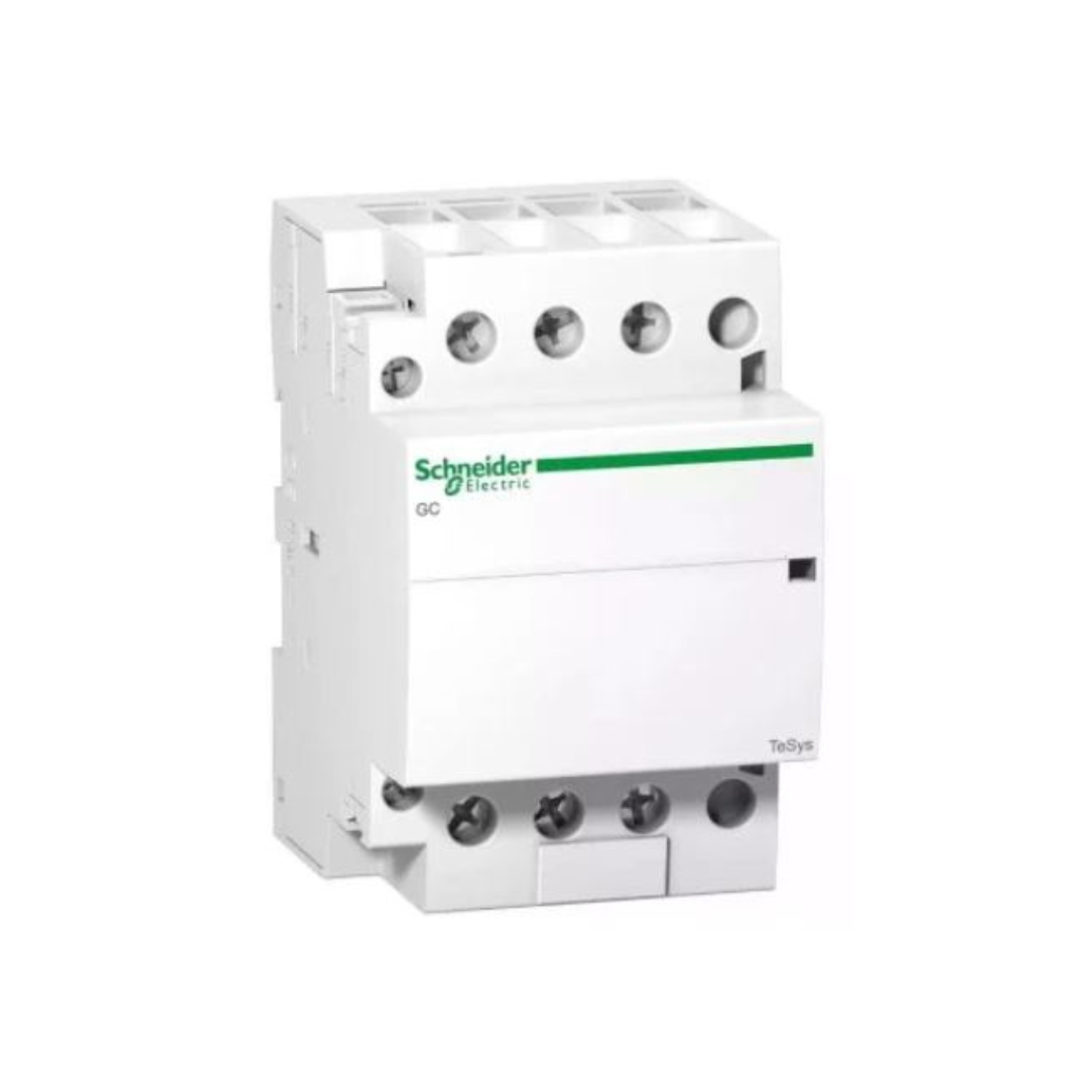

Schneider Electric TeSys GC Modular Contactor 40A 3 NO 220-240V AC Coil GC4030M5
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Modular Contactor
Description
Schneider Electric GC4030M5 TeSys GC Modular Contactor is an electrical switching device that is commonly used for controlling electrical loads in various applications. It is a type of electrical contactor designed to be installed in a modular or DIN rail-mounted system. Modular Contactor is used in electrical panels. 40A is the maximum current that the contactor is rated to handle.
3 NO stands for "3 Normally Open." It means there are three normally open contacts in the contactor. Normally open means that the contacts are open (not connected) when the contactor is not energized. 220-240V AC Coil is the voltage required to activate the contactor. The coil is the part of the contactor that, when energized, creates a magnetic field that closes the contacts. In this case, the coil operates on a voltage range of 220-240 Volts AC.
Features
- 40A 3P Modular Contactor 220V Coil
- Used to control electrical loads
| Brand | Schneider Electric |
| Item Name | Modular Contactor |
| Model | GC4020M5 |
| Color | White |
| Package1 Length*Width*Height | 23.0 cm x 9.5 cm x 8.0 cm |
| Country of Manufacturing | France |
| Conventional Free Air Thermal Current | 40 A (at 50 °C) for power circuit |
| Rated Operational Current | 40 A AC-7A, 15 A AC-7B |
| Control Circuit Voltage | 220...240 V AC 50 Hz |
| Rated Operational Voltage | <= 250 V AC |
| Rated Insulation Voltage | 500 V conforming to IEC 61095, 500 V conforming to VDE 0110 |
| Rated Impulse Withstand Voltage | 4 kV |
| Ambient Air Temperature For Operation | -5-50 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Associated Fuse Rating | 40 A gL at <= 440 V for power circuit |
| Average Impedance | 2 mOhm - Ith 40 A 50 Hz for power circuit |
| Compatibility Code | Modular Standard Contactor |
| Connections - Terminals | control circuit: screw clamp terminals 1 cable(s) 2.5-2.5 mm²flexible without cable end, power circuit: screw clamp terminals 2 cable(s) 4-4 mm²flexible with cable end, power circuit: screw clamp terminals 1 cable(s) 25-25 mm²solid without cable end, power circuit: screw clamp terminals 2 cable(s) 6-6 mm²solid without cable end, control circuit: screw clamp terminals 2 cable(s) 2.5-2.5 mm²flexible without cable end, control circuit: screw clamp terminals 1 cable(s) 2.5-2.5 mm²flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1.5-1.5 mm²flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 1.5-1.5 mm²solid without cable end, control circuit: screw clamp terminals 2 cable(s) 1.5-1.5 mm²solid without cable end, power circuit: screw clamp terminals 1 cable(s) 25-25 mm²flexible without cable end, power circuit: screw clamp terminals 2 cable(s) 16-16 mm²flexible without cable end, power circuit: screw clamp terminals 1 cable(s) 16-16 mm²flexible with cable end |
| Contactor Application | Motor Control, Heating, Lighting |
| Control Circuit Type | AC at 50 Hz |
| Control Circuit Voltage Limits | drop-out: 0.2...0.75 Uc at 50 Hz (at <50 °C), operational: 0.85...1.1 Uc at 50 Hz (at <50 °C) |
| Control Type | Remote Control |
| Depth | 62.5 mm |
| Heat Dissipation | 2.1-2.1 W at 50/60 Hz |
| Height | 85 mm |
| Hold-in Power Consumption in VA | 6.5-6.5 VA 50 Hz (at 20 °C) |
| Inrush Power in VA | 53-53 VA 50 Hz (at 20 °C) |
| Insulation Resistance | > 10 MOhm for Signalling Circuit |
| IP Degree Of Protection | IP40 conforming to VDE 0106 (in enclosure), IP20 conforming to VDE 0106 |
| Irms Rated Making Capacity | 120 A at 400 V AC for power circuit conforming to IEC 61095 |
| Maximum Operating Rate | 300 cyc/h 50 °C |
| Mechanical Durability | 1000000 cycles |
| Mechanical Robustness | shocks contactor open: 10 Gn for 11 ms, shocks contactor closed: 15 Gn for 11 ms, vibrations contactor open: 2 Gn, 5...300 Hz, vibrations contactor closed: 3 Gn, 5...300 Hz |
| Mounting Mode | Clip-On |
| Mounting Support | DIN Rail |
| Operating Altitude | <= 3000 m |
| Operating Position | 30°/vertical |
| Operating Time | 10...25 ms opening, 10...30 ms closing |
| Pole Contact Composition | 3 NO |
| Poles Description | 3P |
| Power Dissipation Per Pole | 3.2 W |
| Protective Treatment | TC |
| Range | TeSys |
| Rated Breaking Capacity | 120 A at 400 V for power circuit conforming to IEC 61095 |
| Rated Operational Voltage Limits | <= 250 V AC |
| Standards | IEC 61095, IEC 60947-5 |
| Tightening Torque | control circuit: 0.8 N.m - on screw clamp terminals, power circuit: 2 N.m - on screw clamp terminals |
| Utilisation Category | AC-7A, AC-7B |
| Total number of 18 mm modules | 3 |
| Width | 36 mm |
| Rated Short-time Withstand Current | 320 A 40 °C - 10 s for power circuit, 100 A 40 °C - 30 s for power circuit |
| Electrical Durability | AC-7A: 100000 cycles, AC-7B: 100000 cycles |
| Weight | 314.0 g |
