Brand : Schneider Electric

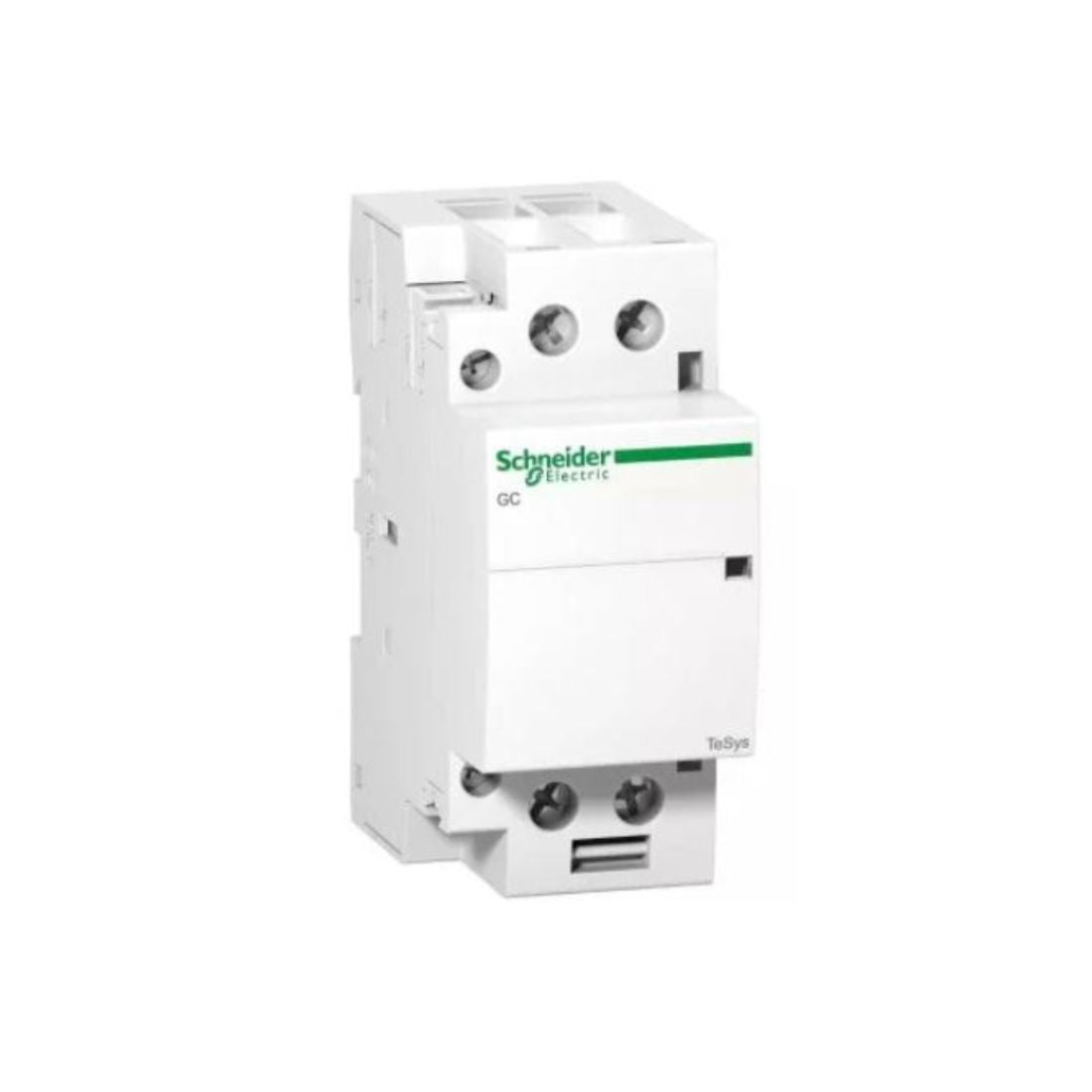

Item Name : Modular Contactor

Model : GC4020M5

Color : White

Package1 Length*Width*Height : 9.0 cm x 7.0 cm x 3.7 cm

Country of Manufacturing : France

Conventional Free Air Thermal Current : 40 A (at 50 °C) for power circuit

Rated Operational Current : 40 A AC-7A, 15 A AC-7B

Control Circuit Voltage : 220...240 V AC 50 Hz

Rated Operational Voltage : <= 250 V AC

Rated Insulation Voltage : 500 V conforming to IEC 61095, 500 V conforming to VDE 0110

Rated Impulse Withstand Voltage : 4 kV

Ambient Air Temperature For Operation : -5-50 °C

Ambient Air Temperature For Storage : -40-70 °C

Associated Fuse Rating : 40 A gL at <= 440 V for power circuit

Average Impedance : 2 mOhm - Ith 40 A 50 Hz for power circuit

Compatibility Code : Modular Standard Contactor

Connections - Terminals : control circuit: screw clamp terminals 1 cable(s) 2.5-2.5 mm²flexible without cable end, power circuit: screw clamp terminals 2 cable(s) 4-4 mm²flexible with cable end, power circuit: screw clamp terminals 1 cable(s) 25-25 mm²solid without cable end, power circuit: screw clamp terminals 2 cable(s) 6-6 mm²solid without cable end, control circuit: screw clamp terminals 2 cable(s) 2.5-2.5 mm²flexible without cable end, control circuit: screw clamp terminals 1 cable(s) 2.5-2.5 mm²flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1.5-1.5 mm²flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 1.5-1.5 mm²solid without cable end, control circuit: screw clamp terminals 2 cable(s) 1.5-1.5 mm²solid without cable end, power circuit: screw clamp terminals 1 cable(s) 25-25 mm²flexible without cable end, power circuit: screw clamp terminals 2 cable(s) 16-16 mm²flexible without cable end, power circuit: screw clamp terminals 1 cable(s) 16-16 mm²flexible with cable end

Contactor Application : Motor Control, Heating, Lighting

Control Circuit Type : AC at 50 Hz

Control Circuit Voltage Limits : drop-out: 0.2...0.75 Uc at 50 Hz (at <50 °C), operational: 0.85...1.1 Uc at 50 Hz (at <50 °C)

Control Type : Remote Control

Depth : 62.5 mm

Heat Dissipation : 1.6-1.6 W at 50/60 Hz

Height : 85 mm

Hold-in Power Consumption in VA : 4.6-4.6 VA 50 Hz (at 20 °C)

Inrush Power in VA : 34-34 VA 50 Hz (at 20 °C)

Insulation Resistance : > 10 MOhm for Signalling Circuit

IP Degree Of Protection : IP40 conforming to VDE 0106 (in enclosure), IP20 conforming to VDE 0106

Irms Rated Making Capacity : 120 A at 400 V AC for power circuit conforming to IEC 61095

Maximum Operating Rate : 300 cyc/h 50 °C

Mechanical Durability : 1000000 cycles

Mechanical Robustness : shocks contactor open: 10 Gn for 11 ms, shocks contactor closed: 15 Gn for 11 ms, vibrations contactor open: 2 Gn, 5...300 Hz, vibrations contactor closed: 3 Gn, 5...300 Hz

Mounting Mode : Clip-On

Mounting Support : DIN Rail

Operating Altitude : <= 3000 m

Operating Position : 30°/vertical

Operating Time : 10...25 ms opening, 10...30 ms closing

Pole Contact Composition : 2 NO

Poles Description : 2P

Power Dissipation Per Pole : 3.2 W

Protective Treatment : TC

Range : TeSys

Rated Breaking Capacity : 120 A at 400 V for power circuit conforming to IEC 61095

Rated Operational Voltage Limits : <= 250 V AC

Standards : IEC 61095, IEC 60947-5

Tightening Torque : control circuit: 0.8 N.m - on screw clamp terminals, power circuit: 2 N.m - on screw clamp terminals

Utilisation Category : AC-7A, AC-7B

Total number of 18 mm modules : 3

Width : 36 mm

Rated Short-time Withstand Current : 320 A 40 °C - 10 s for power circuit, 100 A 40 °C - 30 s for power circuit

Electrical Durability : AC-7A: 100000 cycles, AC-7B: 100000 cycles

Weight : 226.0 g
