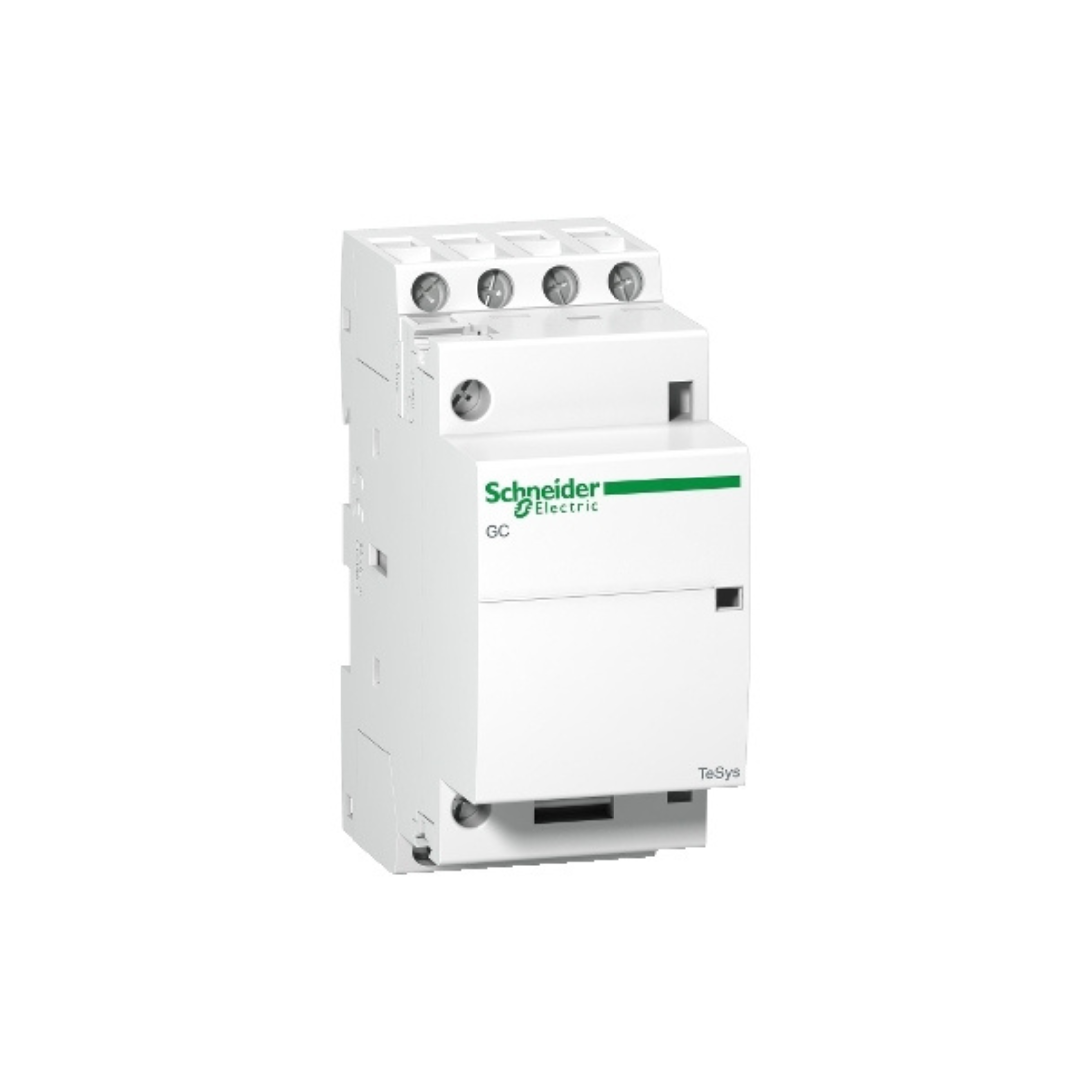

Schneider Electric TeSys GC Modular Contactor 25A AC-7a 4NC 220-240V AC 50Hz Coil GC2504M5
AED 203.70
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Cash on
Delivery
7 Days
Returnable
15+
Years Of Trust
15+
Branches
Brand : Schneider Electric
Type : Modular Contactor
Collections
Description
Schneider Electric GC2504M5 TeSys GC Modular Contactor 4-pole (4NC) 25A/415V AC-7a (heating) and 8.5A/415V AC-7b (motor control) modular contactor for domestic applications. Control voltage 220-240V AC 50Hz, status indication on the front. For use in modular, compact control panels (width 36 mm), attachable to 35 mm DIN rail, connection via screw terminals. Sold in lots of 6 units. Certified to multiple standards (IEC, EN, NF-USE, VDE, CEBEC, OVE), Green Premium compliant (RoHS/REACh).
Features
- 25A 4P Modular Contactor 220-240V Coil
- Modular contactors has utilisation category of AC-7A
- It has an Electrical endurance 100,000 cycles
- This range of contactors is safe and simple to use and easy to install
- Devices are compact in size and suitable for use in a wide variety of applications
- Modular contactors designed for use in modular panels and enclosures
| Brand | Schneider Electric |
| Item Name | Modular Contactor |
| Model | GC2504M5 |
| Color | White |
| Conventional Free Air Thermal Current | 25 A (at 50 °C) for power circuit |
| Rated Operational Current | 25 A AC-7A, 8.5 A AC-7B |
| Control Circuit Voltage | 220...240 V AC 50 Hz |
| Rated Operational Voltage Limits | <= 250 V AC |
| Rated Insulation Voltage | 500 V conforming to IEC 61095, 500 V conforming to VDE 0110 |
| Rated Impulse Withstand Voltage | 4 kV |
| Ambient Air Temperature For Operation | -5-50 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Associated Fuse Rating | 25 A gL at <= 440 V for power circuit |
| Average Impedance | 2.5 mOhm - Ith 25 A 50 Hz for power circuit |
| Compatibility Code | Modular Standard Contactor |
| Connections - Terminals | control circuit: screw clamp terminals 1 cable(s) 2.5-2.5 mm²flexible without cable end, power circuit: screw clamp terminals 2 cable(s) 1.5-1.5 mm²flexible with cable end, power circuit: screw clamp terminals 1 cable(s) 6-6 mm²solid without cable end, power circuit: screw clamp terminals 2 cable(s) 4-4 mm²solid without cable end, control circuit: screw clamp terminals 2 cable(s) 2.5-2.5 mm²flexible without cable end, control circuit: screw clamp terminals 1 cable(s) 2.5-2.5 mm²flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1.5-1.5 mm²flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 1.5-1.5 mm²solid without cable end, control circuit: screw clamp terminals 2 cable(s) 1.5-1.5 mm²solid without cable end, power circuit: screw clamp terminals 1 cable(s) 6-6 mm²flexible without cable end, power circuit: screw clamp terminals 2 cable(s) 4-4 mm²flexible without cable end, power circuit: screw clamp terminals 1 cable(s) 6-6 mm²flexible with cable end |
| Contactor Application | Motor Control, Heating, Lighting |
| Control Circuit Type | AC at 50 Hz |
| Control Circuit Voltage Limits | Drop-out: 0.2...0.75 Uc at 50 Hz (at <50 °C), operational: 0.85...1.1 Uc at 50 Hz (at <50 °C) |
| Control Type | Remote Control |
| Depth | 62.5 mm |
| Heat Dissipation | 1.6-1.6 W at 50/60 Hz |
| Height | 85 mm |
| Hold-in Power Consumption in VA | 4.6-4.6 VA 50 Hz (at 20 °C) |
| Inrush Power in VA | 34-34 VA 50 Hz (at 20 °C) |
| Insulation Resistance | > 10 MOhm for Signalling Circuit |
| IP Degree Of Protection | IP40 conforming to VDE 0106 (in enclosure), IP20 conforming to VDE 0106 |
| Irms Rated Making Capacity | 68 A at 400 V AC for power circuit conforming to IEC 61095 |
| Maximum Operating Rate | 300 cyc/h 50 °C |
| Mechanical Durability | 1000000 cycles |
| Mechanical Robustness | Shocks contactor open: 10 Gn for 11 ms, shocks contactor closed: 15 Gn for 11 ms, vibrations contactor open: 2 Gn, 5...300 Hz, vibrations contactor closed: 3 Gn, 5...300 Hz |
| Mounting Mode | Clip-On |
| Mounting Support | DIN Rail |
| Operating Altitude | <= 3000 m |
| Operating Position | 30°/vertical |
| Operating Time | 10...25 ms opening, 10...30 ms closing |
| Pole Contact Composition | 4 NC |
| Poles Description | 4P |
| Power Dissipation Per Pole | 1.6 W |
| Protective Treatment | TC |
| Range | TeSys |
| Rated Breaking Capacity | 68 A at 400 V for power circuit conforming to IEC 61095 |
| Rated Operational Voltage Limits | <= 250 V AC |
| Standards | IEC 61095, IEC 60947-5 |
| Tightening Torque | Control Circuit: 0.8 N.m - on screw clamp terminals, power circuit: 0.8 N.m - on screw clamp terminals |
| Utilisation Category | AC-7B, AC-7A |
| Total number of 18 mm modules | 2 |
| Width | 36mm |
| Rated Short-time Withstand Current | 200 A 40 °C - 10 s for power circuit, 62 A 40 °C - 30 s for power circuit |
| Electrical Durability | AC-7A: 100000 cycles, AC-7B: 100000 cycles |
| Weight | 0.23kg |
