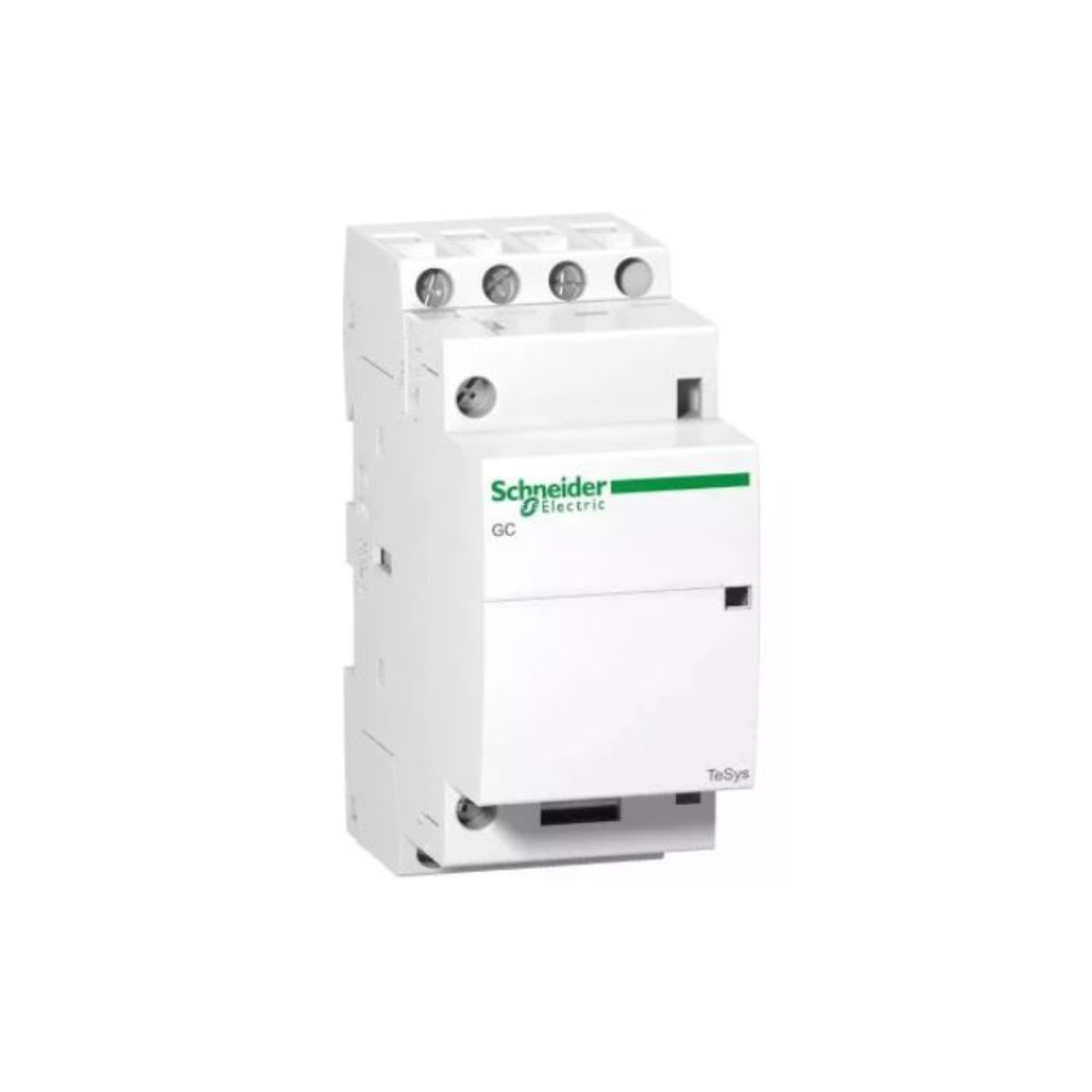

Schneider Electric TeSys GC Modular Contactor 25A 3NO Coil 220-240V AC GC2530M5
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Modular Contactor
Description
Schneider Electric GC2530M5 TeSys GC Modular Contactor is an electrically-controlled switch used for switching an electrical power circuit. It is similar to a relay but is designed to handle higher currents. 25A is the contractor's current rating. It can handle a maximum current of 25 amperes.
3 NO stands for "3 Normally Open". It means that the contactor has three normally open contacts. These contacts are closed when the contactor coil is energized and open when the coil is de-energized. 220-240V AC Coil specifies the voltage range required to energize the contactor's coil. In this case, the coil operates on alternating current (AC) and is designed to work with voltages between 220 and 240 volts.
In summary, Schneider Electric GC2530M5 TeSys GC Modular Contactor is rated for a maximum current of 25 amperes, has three normally open contacts, and requires a 220-240V AC power supply to energize its coil. This type of contactor might be used in various electrical applications where controlling a high-current circuit is necessary.
Features
- 25A 3P Modular Contactor 220V Coil
- Used to control electrical loads
| Brand | Schneider Electric |
| Item Name | Modular Contactor |
| Model | GC2530M5 |
| Package1 Length*Width*Height | 8.4 cm x 6.9 cm x 3.6 cm |
| Country of Manufacturing | France |
| Rated Operational Ccurrent | 25 A AC-7A, 8.5 A AC-7B |
| Conventional Free Air Thermal Current | 25 A (at 50 °C) for power circuit |
| Control Circuit Voltage | 220...240 V AC 50 Hz |
| Rated Operational Voltage | <= 250 V AC |
| Rated Insulation Voltage | 500 V conforming to IEC 61095, 500 V conforming to VDE 0110 |
| Rated Impulse Withstand Voltage | 4 kV |
| Ambient Air Temperature For Operation | -5-50 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Associated Fuse Rating | 25 A gL at <= 440 V for power circuit |
| Average Impedance | 2.5 mOhm - Ith 25 A 50 Hz for power circuit |
| Coil Technology | Without built-in suppressor module |
| Compatibility Code | Modular Standard Contactor |
| Connections - Terminals | control circuit: screw clamp terminals 1 cable(s) 2.5-2.5 mm²flexible without cable end, power circuit: screw clamp terminals 2 cable(s) 1.5-1.5 mm²flexible with cable end, power circuit: screw clamp terminals 1 cable(s) 6-6 mm²solid without cable end, power circuit: screw clamp terminals 2 cable(s) 4-4 mm²solid without cable end, control circuit: screw clamp terminals 2 cable(s) 2.5-2.5 mm²flexible without cable end, control circuit: screw clamp terminals 1 cable(s) 2.5-2.5 mm²flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1.5-1.5 mm²flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 1.5-1.5 mm²solid without cable end, control circuit: screw clamp terminals 2 cable(s) 1.5-1.5 mm²solid without cable end, power circuit: screw clamp terminals 1 cable(s) 6-6 mm²flexible without cable end, power circuit: screw clamp terminals 2 cable(s) 4-4 mm²flexible without cable end, power circuit: screw clamp terminals 1 cable(s) 6-6 mm²flexible with cable end |
| Contactor Application | Motor Control, Heating, Lighting |
| Control Circuit Type | AC at 50 Hz |
| Control Circuit Voltage Limits | drop-out: 0.2...0.75 Uc at 50 Hz (at <50 °C), operational: 0.85...1.1 Uc at 50 Hz (at <50 °C) |
| Control Type | Remote Control |
| Depth | 62.5 mm |
| Electrical Durability | AC-7A: 100000 cycles, AC-7B: 100000 cycles |
| Heat Dissipation | 1.6-1.6 W at 50/60 Hz |
| Height | 81 mm |
| Hold-in Power Consumption in VA | 4.6-4.6 VA 50 Hz (at 20 °C) |
| Inrush Power in VA | 34-34 VA 50 Hz (at 20 °C) |
| Insulation Resistance | > 10 MOhm for Signalling Circuit |
| IP Degree Of Protection | IP40 conforming to VDE 0106 (in enclosure), IP20 conforming to VDE 0106 |
| Irms Rated Making Capacity | 68 A at 400 V AC for power circuit conforming to IEC 61095 |
| Maximum Operating Rate | 300 cyc/h 50 °C |
| Mechanical Durability | 1000000 cycles |
| Mechanical Robustness | Shocks contactor open: 10 Gn for 11 ms, shocks contactor closed: 15 Gn for 11 ms, vibrations contactor open: 2 Gn, 5...300 Hz, vibrations contactor closed: 3 Gn, 5...300 Hz |
| Mounting Mode | Clip-On |
| Mounting Support | DIN Rail |
| Operating Altitude | <= 3000 m |
| Operating Position | 30°/vertical |
| Operating Time | 10...25 ms opening, 10...30 ms closing |
| Pole Contact Composition | 3 NO |
| Poles Description | 3P |
| Power Dissipation Per Pole | 1.6 W |
| Protective Treatment | TC |
| Range | TeSys |
| Rated Breaking Capacity | 68 A at 400 V for power circuit conforming to IEC 61095 |
| Rated Operational Voltage Limits | <= 250 V AC |
| Standards | IEC 61095, IEC 60947-5 |
| Tightening Torque | control circuit: 0.8 N.m - on screw clamp terminals, power circuit: 0.8 N.m - on screw clamp terminals |
| Utilisation Category | AC-7A, AC-7B |
| Total number of 18 mm modules | 2 |
| Width | 36 mm |
| Rated Short-time Withstand Current | 200 A 40 °C - 10 s for power circuit, 62 A 40 °C - 30 s for power circuit |
| Ambient Air Temperature For Operation | -5-50 °C |
| Rated Operational Current | 25 A AC-7A, 8.5 A AC-7B |
| Weight | 196.0 g |
