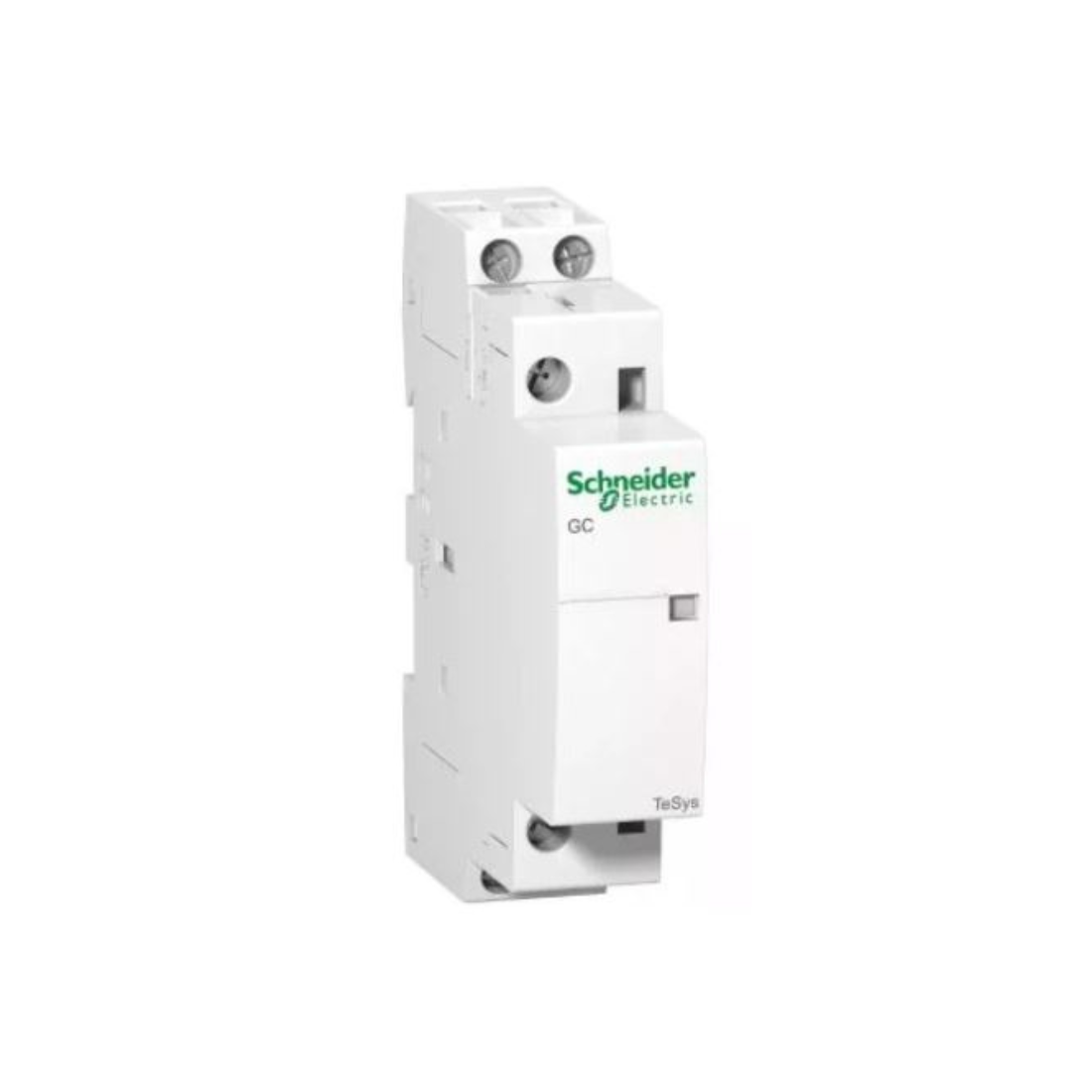

Schneider Electric TeSys GC Modular Contactor 25A 2 NO 220-240V AC Coil GC2520M5
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Modular Contactor
Description
Schneider Electric GC2520M5 TeSys GC Modular Contactor is an electrical switching device that is typically used for controlling electrical loads in various applications. The contactor is rated to handle a maximum current of 25 amperes. It means it can control devices or loads that draw up to 25 amperes of current.
The contactor has two sets of normally open contacts. When the contactor is not energized, these contacts are in the open state, meaning no current can flow through them. When the contactor is energized, these contacts close, allowing current to flow. 220-240V AC is the voltage required to energize the coil of the contactor. In this case, the coil operates on a voltage range of 220 to 240 volts AC.
In summary, Schneider Electric GC2520M5 TeSys GC Modular Contactor is designed to handle a maximum current of 25 amperes and has two sets of normally open contacts. It operates on a coil voltage of 220-240V AC.
Features
- 25A 2P Modular Contactor 220V Coil
- Used to control electrical loads
| Brand | Schneider Electric |
| Item Name | Modular Contactor |
| Model | GC2520M5 |
| Package1 Length*Width*Height | 23.0 cm x 9.5 cm x 8.0 cm |
| Country of Manufacturing | France |
| Rated Operational Ccurrent | 25 A AC-7A, 8.5 A AC-7B |
| Conventional Free Air Thermal Current | 25 A (at 50 °C) for power circuit |
| Control Circuit Voltage | 220...240 V AC 50 Hz |
| Rated Operational Voltage | <= 250 V AC |
| Rated Insulation Voltage | 500 V conforming to IEC 61095, 500 V conforming to VDE 0110 |
| Rated Impulse Withstand Voltage | 4 kV |
| Ambient Air Temperature For Operation | -5-50 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Associated Fuse Rating | 25 A gL at <= 440 V for power circuit |
| Average Impedance | 2.5 mOhm - Ith 25 A 50 Hz for power circuit |
| Climatic Withstand | Conforming to IACS E10 exposure to damp heat, conforming to IEC 60947-1 Annex Q category D exposure to damp heat |
| Coil Technology | Without built-in suppressor module |
| Compatibility Code | Modular Standard Contactor |
| Connections - Terminals | control circuit: screw clamp terminals 1 cable(s) 2.5-2.5 mm²flexible without cable end, power circuit: screw clamp terminals 2 cable(s) 1.5-1.5 mm²flexible with cable end, power circuit: screw clamp terminals 1 cable(s) 6-6 mm²solid without cable end, power circuit: screw clamp terminals 2 cable(s) 4-4 mm²solid without cable end, control circuit: screw clamp terminals 2 cable(s) 2.5-2.5 mm²flexible without cable end, control circuit: screw clamp terminals 1 cable(s) 2.5-2.5 mm²flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1.5-1.5 mm²flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 1.5-1.5 mm²solid without cable end, control circuit: screw clamp terminals 2 cable(s) 1.5-1.5 mm²solid without cable end, power circuit: screw clamp terminals 1 cable(s) 6-6 mm²flexible without cable end, power circuit: screw clamp terminals 2 cable(s) 4-4 mm²flexible without cable end, power circuit: screw clamp terminals 1 cable(s) 6-6 mm²flexible with cable end |
| Contactor Application | Motor Control, Heating, Lighting |
| Control Circuit Type | AC at 50 Hz |
| Control Circuit Voltage Limits | drop-out: 0.2...0.75 Uc at 50 Hz (at <50 °C), operational: 0.85...1.1 Uc at 50 Hz (at <50 °C) |
| Control Type | Remote Control |
| Depth | 62.5 mm |
| Electrical Durability | AC-7A: 100000 cycles, AC-7B: 100000 cycles |
| Heat Dissipation | 1.3-1.3 W at 50/60 Hz |
| Height | 81 mm |
| Hold-in Power Consumption in VA | 3.8-3.8 VA 50 Hz (at 20 °C) |
| Inrush Power in VA | 15-15 VA 50 Hz (at 20 °C) |
| Insulation Resistance | > 10 MOhm for Signalling Circuit |
| IP Degree Of Protection | IP40 conforming to VDE 0106 (in enclosure), IP20 conforming to VDE 0106 |
| Irms Rated Making Capacity | 68 A at 400 V AC for power circuit conforming to IEC 61095 |
| Maximum Operating Rate | 300 cyc/h 50 °C |
| Mechanical Durability | 1000000 cycles |
| Mechanical Robustness | Shocks contactor open: 10 Gn for 11 ms, shocks contactor closed: 15 Gn for 11 ms, vibrations contactor open: 2 Gn, 5...300 Hz, vibrations contactor closed: 3 Gn, 5...300 Hz |
| Mounting Mode | Clip-On |
| Mounting Support | DIN Rail |
| Operating Altitude | <= 3000 m |
| Operating Position | 30°/vertical |
| Operating Time | 12...22 ms closing, 4...19 ms opening |
| Pole Contact Composition | 2 NO |
| Poles Description | 2P |
| Power Dissipation Per Pole | 1.6 W |
| Protective Treatment | TC |
| Range | TeSys |
| Rated Breaking Capacity | 68 A at 400 V for power circuit conforming to IEC 61095 |
| Rated Operational Voltage Limits | <= 250 V AC |
| Standards | IEC 61095, IEC 60947-5 |
| Tightening Torque | control circuit: 0.8 N.m - on screw clamp terminals, power circuit: 0.8 N.m - on screw clamp terminals |
| Utilisation Category | AC-7B, AC-7A |
| Total number of 18 mm modules | 1 |
| Width | 17.5 mm |
| Rated Short-time Withstand Current | 200 A 40 °C - 10 s for power circuit, 62 A 40 °C - 30 s for power circuit |
| Weight | 116.0 g |
