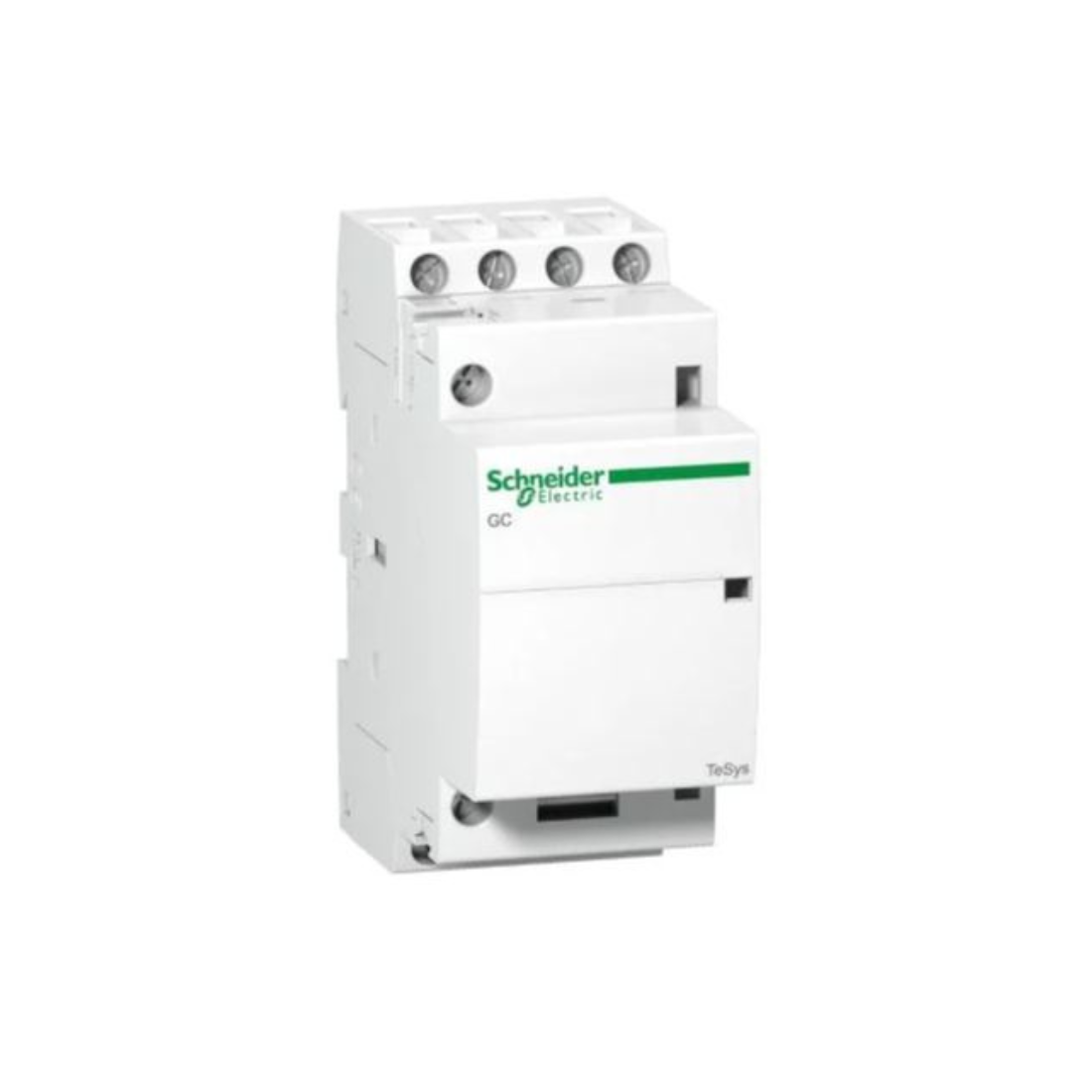

Schneider Electric TeSys GC Modular Contactor 16A 4 NO 220-240V AC Coil GC1640M5
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Modular Contactor
Description
Schneider Electric GC1640M5 TeSys GC Modular Contactor is an electrical switching device typically used to control electrical circuits. It is designed to be installed in a panel or modular cabinet. Modular contactors are popular due to their compact size and easy installation. 16 A is the maximum current the contractor can handle. It is suitable for controlling loads that consume up to 16 A of current.
The contactor has four sets of contacts and under normal conditions, these contacts are open (i.e. the circuit is not closed). When the contactor is energized, these contacts close to complete the circuit. 220-240 VAC coil is the coil voltage required to activate the contactor. It is designed for use with an alternating current (AC) coil that operates at a voltage between 220 and 240 volts.
In summary, the Schneider Electric TeSys GC Modular Contactor GC1640M5 is designed for a maximum current of 16 A and has four normally open contacts. It is designed to be used with a 220-240V AC power supply to power the coil. When the coil is energized, the normally open contacts close, allowing current to flow through the controlled circuit.
Features
- 16A 4P Modular Contactor 220-240V Coil
- Used to control electrical loads
| Brand | Schneider Electric |
| Item Name | Modular Contactor |
| Model | GC1640M5 |
| Color | White |
| Conventional Free Air Thermal Current | 16 A (at 50 °C) for power circuit |
| Rated Operational Current | 16 A AC-7A, 5 A AC-7B |
| Control Circuit Voltage | 220...240 V AC 50 Hz |
| Rated Operational Voltage | <= 250 V AC |
| Rated Insulation Voltage | 500 V conforming to IEC 61095, 500 V conforming to VDE 0110 |
| Rated Impulse Withstand Voltage | 4 kV |
| Ambient Air Temperature For Operation | -5-50 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Associated Fuse Rating | 16 A gL at <= 440 V for power circuit |
| Average Impedance | 2.5 mOhm - Ith 16 A 50 Hz for power circuit |
| Compatibility Code | Modular Standard Contactor |
| Connections - Terminals | control circuit: screw clamp terminals 1 cable(s) 2.5-2.5 mm²flexible without cable end, power circuit: screw clamp terminals 2 cable(s) 1.5-1.5 mm²flexible with cable end, power circuit: screw clamp terminals 1 cable(s) 6-6 mm²solid without cable end, power circuit: screw clamp terminals 2 cable(s) 4-4 mm²solid without cable end, control circuit: screw clamp terminals 2 cable(s) 2.5-2.5 mm²flexible without cable end, control circuit: screw clamp terminals 1 cable(s) 2.5-2.5 mm²flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1.5-1.5 mm²flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 1.5-1.5 mm²solid without cable end, control circuit: screw clamp terminals 2 cable(s) 1.5-1.5 mm²solid without cable end, power circuit: screw clamp terminals 1 cable(s) 6-6 mm²flexible without cable end, power circuit: screw clamp terminals 2 cable(s) 4-4 mm²flexible without cable end, power circuit: screw clamp terminals 1 cable(s) 6-6 mm²flexible with cable end |
| Contactor Application | Motor Control, Heating, Lighting |
| Control Circuit Type | AC at 50 Hz |
| Control Circuit Voltage Limits | Drop-out: 0.2...0.75 Uc at 50 Hz (at <50 °C), operational: 0.85...1.1 Uc at 50 Hz (at <50 °C) |
| Control Type | Remote Control |
| Depth | 62.5 mm |
| Heat Dissipation | 1.6-1.6 W at 50/60 Hz |
| Height | 85 mm |
| Hold-in Power Consumption in VA | 4.6-4.6 VA 50 Hz (at 20 °C) |
| Inrush Power in VA | 34-34 VA 50 Hz (at 20 °C) |
| Insulation Resistance | > 10 MOhm for Signalling Circuit |
| IP Degree Of Protection | IP40 conforming to VDE 0106 (in enclosure), IP20 conforming to VDE 0106 |
| Irms Rated Making Capacity | 40 A at 400 V AC for power circuit conforming to IEC 61095 |
| Maximum Operating Rate | 300 cyc/h 50 °C |
| Mechanical Durability | 1000000 cycles |
| Mechanical Robustness | shocks contactor open: 10 Gn for 11 ms, shocks contactor closed: 15 Gn for 11 ms, vibrations contactor open: 2 Gn, 5...300 Hz, vibrations contactor closed: 3 Gn, 5...300 Hz |
| Mounting Mode | Clip-On |
| Mounting Support | DIN Rail |
| Operating Altitude | <= 3000 m |
| Operating Position | 30°/vertical |
| Operating Time | 10...25 ms opening, 10...30 ms closing |
| Pole Contact Composition | 4 NO |
| Poles Description | 4P |
| Power Dissipation Per Pole | 0.65 W |
| Protective Treatment | TC |
| Range | TeSys |
| Rated Breaking Capacity | 40 A at 400 V for power circuit conforming to IEC 61095 |
| Rated Operational Voltage Limits | <= 250 V AC |
| Standards | IEC 60947-5, IEC 61095 |
| Tightening Torque | control circuit: 0.8 N.m - on screw clamp terminals, power circuit: 0.8 N.m - on screw clamp terminals |
| Utilisation Category | AC-7B, AC-7A |
| Total number of 18 mm modules | 2 |
| Width | 36 mm |
| Rated Short-time Withstand Current | 128 A 40 °C - 10 s for power circuit, 40 A 40 °C - 30 s for power circuit |
| Electrical Durability | AC-7A: 100000 cycles, AC-7B: 100000 cycles |
| Ambient Air Temperature For Operation | -5-50 °C |
| Weight | 0.23 kg |
