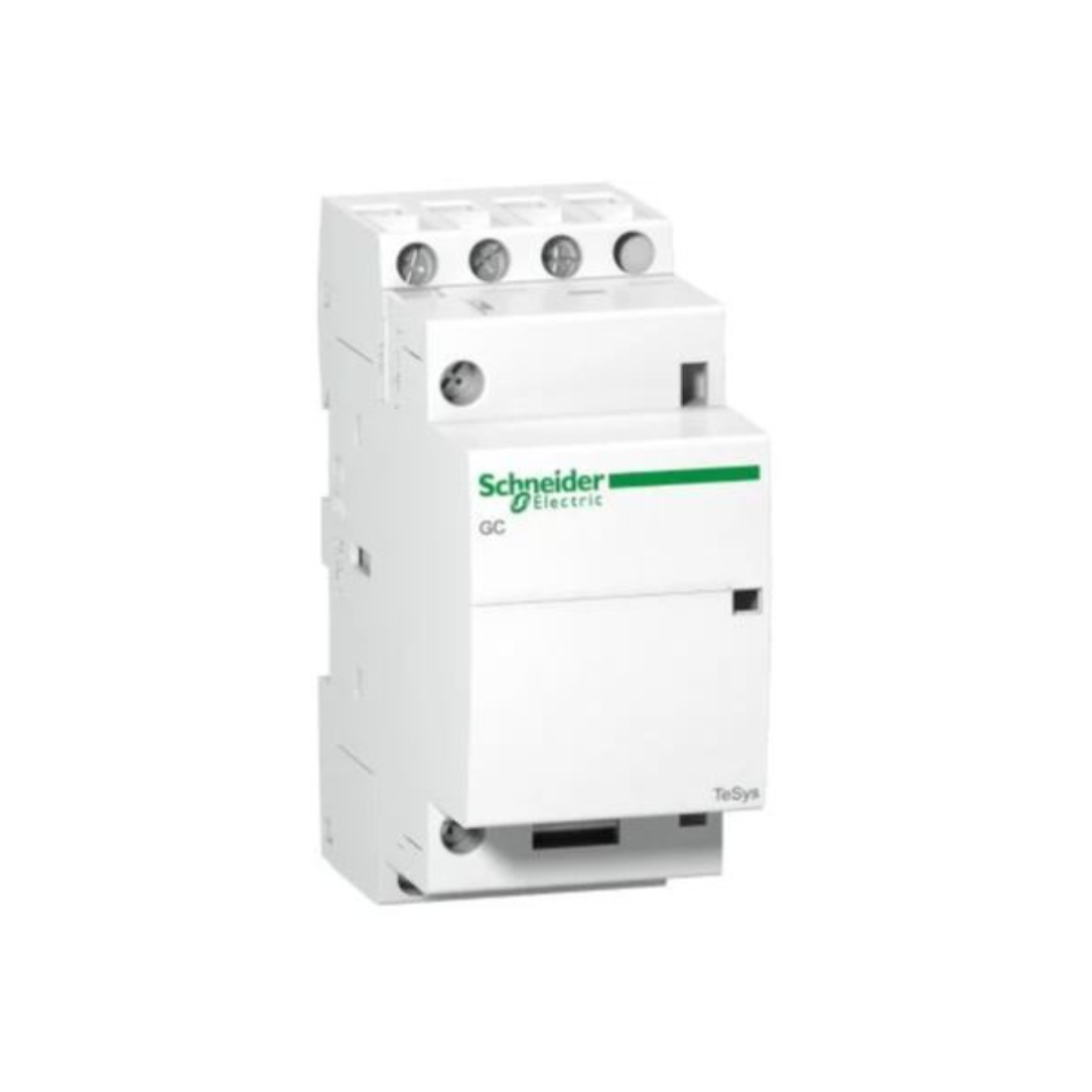

Schneider Electric TeSys GC Modular Contactor 16A 3 NO 220-240V AC Coil GC1630M5
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Modular Contactor
Description
Schneider Electric GC1630M5 TeSys GC Modular Contactor is an electrical device used to switch and control electrical loads in various applications. It is designed for a maximum current of 16 amps. It has three normally open contacts. These contacts are normally in the open state when the contactor is not turned on. 220-240 VAC is the voltage needed to energize the coil and activate the contactor.
In summary, Schneider Electric GC1630M5 TeSys GC Modular Contactor can handle up to 16 amps of current and has three normally open contacts. It is designed to be used with a power source that provides 220 to 240 volts AC to power the coil.
Features
- 16A 3P Modular Contactor 220-240V Coil
- 3 No Power Pole Contact Composition.
- Operating Position 30 Deg C /Vertical.
- 0.65 W Power Dissipation Per Pole.
| Brand | Schneider Electric |
| Item Name | Modular Contactor |
| Model | GC1630M5 |
| Color | White |
| Conventional Free Air Thermal Current | 16 A (at 50 °C) for power circuit |
| Rated Operational Current | 16 A AC-7A, 5 A AC-7B |
| Control Circuit Voltage | 220...240 V AC 50 Hz |
| Rated Insulation Voltage | 500 V conforming to IEC 61095, 500 V conforming to VDE 0110 |
| Rated Impulse Withstand Voltage | 4 kV |
| Ambient Air Temperature For Operation | -5-50 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Associated Fuse Rating | 16 A gL at <= 440 V for power circuit |
| Average Impedance | 2.5 mOhm - Ith 16 A 50 Hz for power circuit |
| Compatibility Code | Modular Standard Contactor |
| Connections - Terminals | control circuit: screw clamp terminals 1 cable(s) 2.5-2.5 mm²flexible without cable end, power circuit: screw clamp terminals 2 cable(s) 1.5-1.5 mm²flexible with cable end, power circuit: screw clamp terminals 1 cable(s) 6-6 mm²solid without cable end, power circuit: screw clamp terminals 2 cable(s) 4-4 mm²solid without cable end, control circuit: screw clamp terminals 2 cable(s) 2.5-2.5 mm²flexible without cable end, control circuit: screw clamp terminals 1 cable(s) 2.5-2.5 mm²flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1.5-1.5 mm²flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 1.5-1.5 mm²solid without cable end, control circuit: screw clamp terminals 2 cable(s) 1.5-1.5 mm²solid without cable end, power circuit: screw clamp terminals 1 cable(s) 6-6 mm²flexible without cable end, power circuit: screw clamp terminals 2 cable(s) 4-4 mm²flexible without cable end, power circuit: screw clamp terminals 1 cable(s) 6-6 mm²flexible with cable end |
| Contactor Application | Motor Control, Heating, Lighting |
| Control Circuit Type | AC at 50 Hz |
| Control Circuit Voltage Limits | drop-out: 0.2...0.75 Uc at 50 Hz (at <50 °C), operational: 0.85...1.1 Uc at 50 Hz (at <50 °C) |
| Control Type | Remote Control |
| Depth | 62.5 mm |
| Heat Dissipation | 1.6-1.6 W at 50/60 Hz |
| Height | 85 mm |
| Hold-in Power Consumption in VA | 4.6-4.6 VA 50 Hz (at 20 °C) |
| Inrush Power in VA | 34-34 VA 50 Hz (at 20 °C) |
| Insulation Resistance | > 10 MOhm for Signalling Circuit |
| IP Degree Of Protection | IP40 conforming to VDE 0106 (in enclosure), IP20 conforming to VDE 0106 |
| Irms Rated Making Capacity | 40 A at 400 V AC for power circuit conforming to IEC 61095 |
| Maximum Operating Rate | 300 cyc/h 50 °C |
| Mechanical Durability | 1000000 cycles |
| Mechanical Robustness | shocks contactor open: 10 Gn for 11 ms, shocks contactor closed: 15 Gn for 11 ms, vibrations contactor open: 2 Gn, 5...300 Hz, vibrations contactor closed: 3 Gn, 5...300 Hz |
| Mounting Mode | Clip-On |
| Mounting Support | DIN Rail |
| Operating Altitude | <= 3000 m |
| Operating Position | 30°/vertical |
| Operating Time | 10...25 ms opening, 10...30 ms closing |
| Pole Contact Composition | 3 NO |
| Poles Description | 3P |
| Power Dissipation Per Pole | 0.65 W |
| Protective Treatment | TC |
| Range | TeSys |
| Rated Breaking Capacity | 40 A at 400 V for power circuit conforming to IEC 61095 |
| Rated Operational Voltage Limits | <= 250 V AC |
| Standards | IEC 61095, IEC 60947-5 |
| Tightening Torque | control circuit: 0.8 N.m - on screw clamp terminals, power circuit: 0.8 N.m - on screw clamp terminals |
| Utilisation Category | AC-7A, AC-7B |
| Total number of 18 mm modules | 2 |
| Width | 36 mm |
| Rated Short-time Withstand Current | 128 A 40 °C - 10 s for power circuit, 40 A 40 °C - 30 s for power circuit |
| Electrical Durability | AC-7A: 100000 cycles, AC-7B: 100000 cycles |
| Weight | 0.23 kg |
