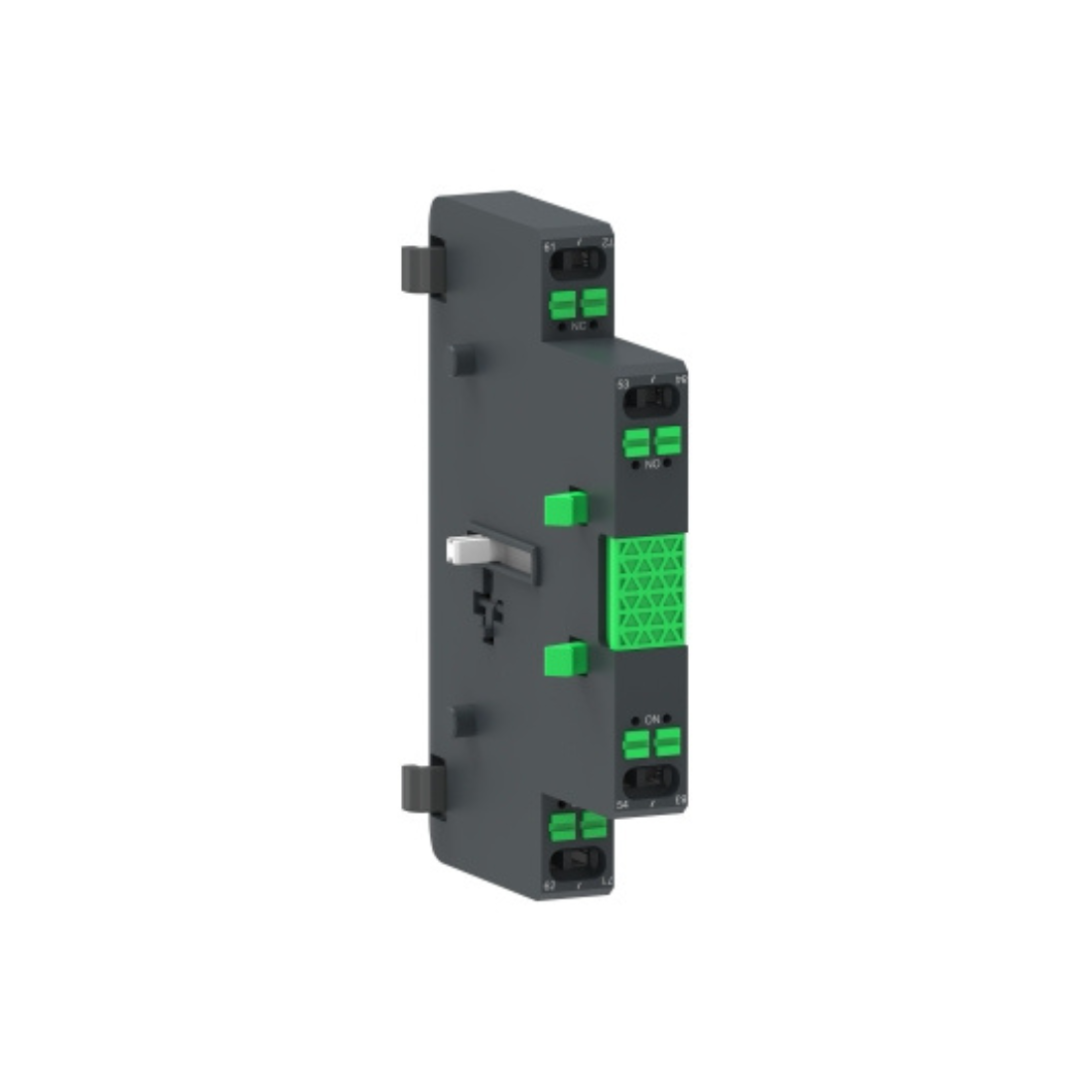

Schneider Electric TeSys G Auxiliary Contact Block 1NO + 1NC Side Mounting Push-in Terminals LAG8N113

Name: Schneider Electric TeSys G Auxiliary Contact Block 1NO + 1NC Side Mounting Push-in Terminals LAG8N113
Brand: Schneider Electric
Price: 85.05 AED
Availability: InStock

AED 85.05

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Auxiliary Contact Block

Description

Schneider Electric LAG8N113 TeSys G Auxiliary Contact Block is a 1NO+1NC contactor. Highly reliable and capable of 17 V 1 mA to handle more demanding specific control applications. It is designed for side mounting with spring clips. It offers IP20 protection in accordance with IEC 60529. It can cover an ambient operating temperature of -25°C to 60°C without derating up to an altitude of 3000 m. Green Premium (RoHs/Reach) compliant.

Features

Front mounting with Screw clamp terminals
Instantaneous auxiliary contacts operation
Conventional Free Air Thermal Current 10 A
Minimum switching current of 1mA at 17V
Mechanical durability 8 million cycles

Specifications

Brand : Schneider Electric

Item Name : Auxiliary Contact Block

Model : LAG8N113

Conventional Free Air Thermal Current : 10 A (at 60 °C)

Rated Insulation Voltage : 500 V conforming to IEC 60947-5-1, 500 V - certifications CSA, 500 V - certifications UL

Ambient Air Temperature For Storage : -60-80 °C

Connections - Terminals : Screw clamp terminals 0.75-2.5 mm²solid stranded without cable end, screw clamp terminals0.75-2.5 mm²flexible with cable end

Depth : 84.8 mm

Height : 55.8 mm

IP Degree Of Protection : IP20 conforming to IEC 60529

Irms Rated Making Capacity : 140 A AC conforming to IEC 60947-5-1, 250 A DC conforming to IEC 60947-5-1

Mechanical Durability : 8 Mcycles

Minimum Switching Current : 1 mA

Minimum Switching Voltage : 17 V

Non-overlap Time : 1.5 ms on de-energisation no overlap between NC and NO contact, 1.5 ms on energisation no overlap between NC and NO contact

Operating Altitude : 3000 m

Pole Contact Composition : 1 NO + 1 NC

Certifications : CB Scheme, CCC, cULus, CE, UKCA, EU-RO-MR by DNV-GL, EAC

Range Of Product : TeSys G

Rated Operational Voltage Limits : 500 V AC 25...400 Hz

Width : 15.4 mm

Permissible Short-time Rating : 100 A 60 °C 1 s, 120 A 60 °C 500 ms, 140 A 60 °C 100 ms

Auxiliary Contacts Operation : Instantaneous

Ambient Air Temperature For Operation : -25-60 °C

Standards : EN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1, GB 14048.5

Insulation Resistance : > 10 MOhm

Mounting Location : Side

Range Compatibility : TeSys G LC1G

Weight : 0.05 kg
