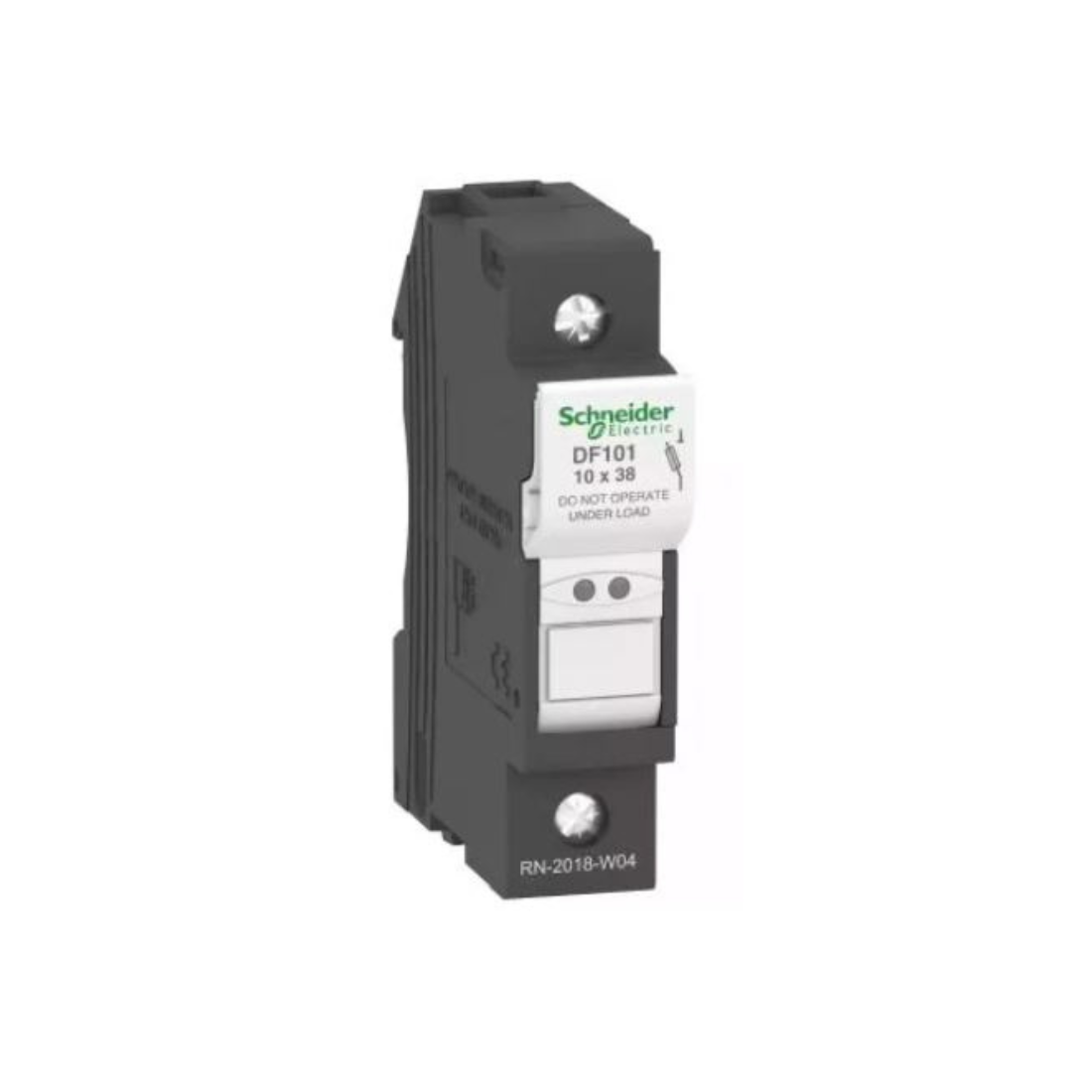

Schneider Electric TeSys DF Fuse Carrier 1P 32A 690VAC Fuse Size 10x38mm DF101

Name: Schneider Electric TeSys DF Fuse Carrier 1P 32A 690VAC Fuse Size 10x38mm DF101
Brand: Schneider Electric
Price: 14.7 AED
Availability: InStock

AED 14.70

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Fuse Carrier

Description

Schneider Electric DF101 TeSys DF Fuse Carrier is a specific type of electrical component used in electrical circuits for safety purposes. A fuse carrier is a device that holds and protects a fuse. It's a component that inserts and remove a fuse easily. It provides a secure connection between the fuse and the circuit. 1P stands for Single Pole, which means a 1P fuse carrier can handle a single circuit.

32A is the maximum current that the fuse and carrier are designed to handle safely. If the current exceeds 32 amperes, the fuse will "blow" or "trip" to protect the circuit from overloading. Fuse Size 10 x 38 mm is the physical dimensions of the fuse that can fit into the carrier. It's important to use the correct size of fuse for a particular carrier to ensure proper functioning and safety.

In summary, Schneider Electric DF101 TeSys DF Fuse Carrier is designed for a single circuit with a maximum current of 32 amperes, and it accepts fuses with dimensions of 10 x 38 mm. It's crucial to use the correct size and type of fuse to ensure the safety and proper functioning of the electrical circuit.

Features

32A Fuse Carrier
Used in electrical circuits for safety purposes

Specifications

Brand : Schneider Electric

Item Name : Fuse Carrier

Model : DF101

Package1 Length*Width*Height : 8.0 cm x 6.2 cm x 1.7 cm

Rated Operational Current : 32 A at 400 V AC

Conventional Free Air Thermal Current : 32 A 20 °C

Rated Operational Voltage : 690 V AC, 690 V DC

Rated Insulation Voltage : 690 V AC

Rated Impulse Withstand Voltage : 6 kV

Ambient Air Temperature For Operation : -40-70 °C with derating above 20°C

Ambient Air Temperature For Storage : -40-70 °C

Compatibility Code : DF10

Connections - Terminals : screw clamp terminals 1 cable(s) 1-16 mm²rigid, screw clamp terminals 2 cable(s) 1-6 mm²rigid, screw clamp terminals 1 cable(s) 1-16 mm²flexible with or without, screw clamp terminals 2 cable(s) 1-6 mm²flexible with or without

Control Type : Toggle Padlockable

Depth : 61 mm

Fire Resistance : 960 °C conforming to IEC 60695-2-1

Use Size : 10 x 38 mm

Fuse Type : aM, , gG

Height : 79.5 mm

IP Degree Of Protection : IP20

Mounting Position : Vertical (tolerance: +/- 23°)

Mounting Support : 35 mm symmetrical DIN rail

Operating Altitude : 0...2000 m

Overvoltage Category : III

Poles Description : 1P

Pollution Degree : 3

Power Dissipation Per Pole : 3 W maximum power dissipation by fuse

Certifications : IEC, UL recognized, CSA, CCC, EAC, DNV-GL

Compatibility : DF2CA fuse cartridge, DF2CN fuse cartridge

Range : TeSys

Rated Operational Voltage Limits : 690 V AC, 690 V DC

Standards : EN/IEC 60947-3, EN/IEC 60269-2, UL 4248-1, CSA C22.2 No 4248-1, EN 45545-2: R22 HL2

Tightening Torque : 2.2 N.m - with screwdriver PZ2, 2.2 N.m - with screwdriver flat Ø 5.5 mm

Utilisation Category : AC-20B conforming to IEC 60947-3, DC-20B conforming to IEC 60947-3

Width : 17.5 mm

Short-Circuit Withstand : 120 kA 400 V conforming to IEC 60947-3, 120 kA 500 V conforming to IEC 60947-3

Weight : 44.0 g
