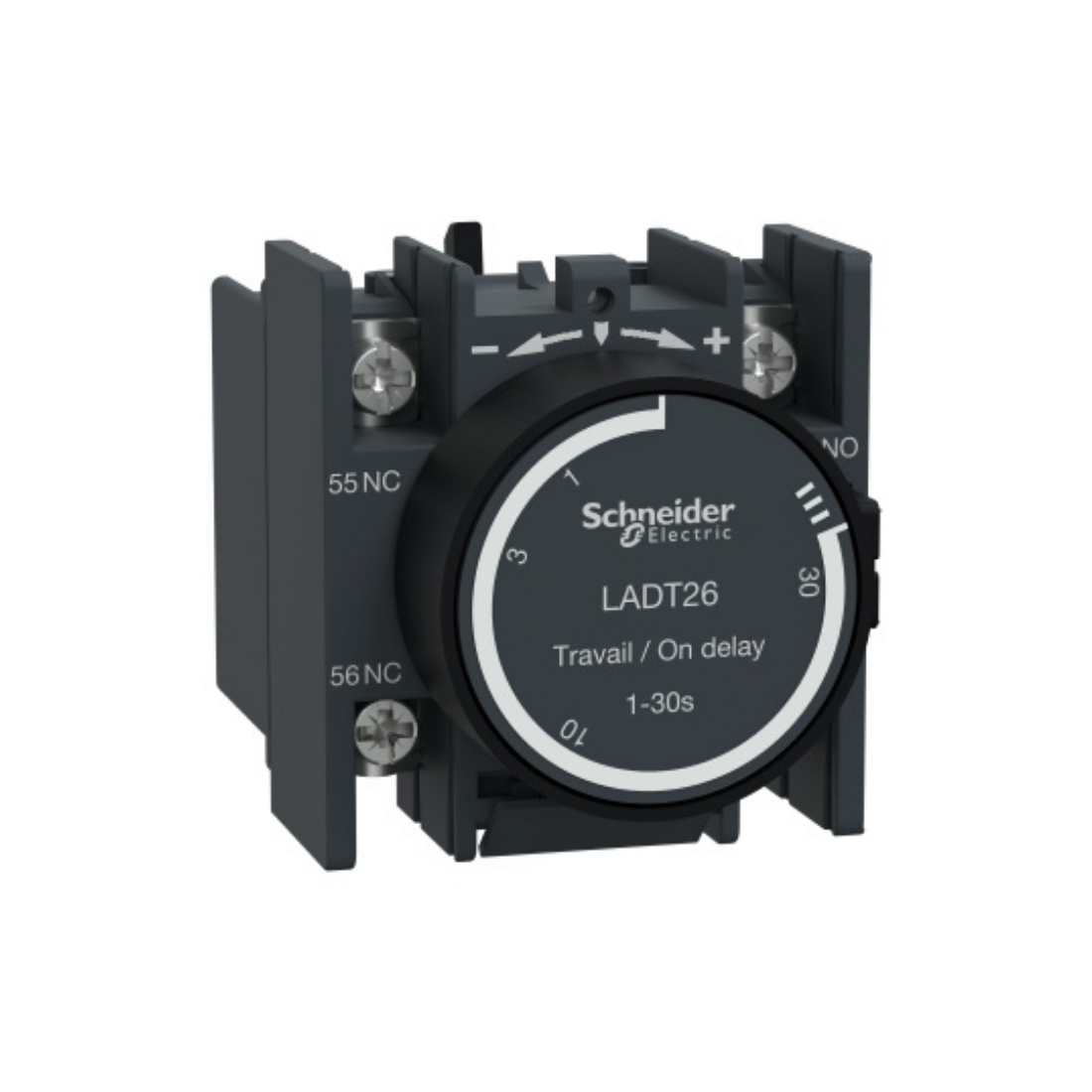

Schneider Electric TeSys D Time Delay Auxiliary Contact Block 1NO + 1NC on Delay 1-30s Front Lugs-Ring Terminals LADT26 in Dubai, UAE
Schneider Electric TeSys D Time Delay Auxiliary Contact Block 1NO + 1NC on Delay 1-30s Front Lugs-Ring Terminals LADT26 in Dubai, UAE

Schneider Electric TeSys D Time Delay Auxiliary Contact Block 1NO + 1NC on Delay 1-30s Front Lugs-Ring Terminals LADT26

Regular price AED 280.35
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:Auxiliary Contact Block
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

    Schneider Electric LADT26 Time Delay Auxiliary Contact Block for LC1D contactors and CAD control relays. It offers 1 NO + 1 NC contacts rated up to 10 A at 690 VAC, a turn-on delay adjustment range of 1 to 30 s, and connection via ring terminals with wire lug. Front clip mounting ensures high reliability and durability. Multi-standard certification (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach).

    Features
    • Used in electrical control systems
    • Lugs-Ring terminals are used
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : Time Delay Auxiliary Contact Block

    Model : LADT26

    Color : Dark Grey

    Conventional Free Air Thermal Current : 10 A (at 60 °C)

    Rated Insulation Voltage : 690 V conforming to IEC 60947-5-1, 600 V conforming to UL, 600 V conforming to CSA

    Ambient Air Temperature For Storage : -60-80 °C

    Connections - Terminals : Lugs-ring terminals (external diameter: 8 mm)

    Depth : 61 mm

    Height : 48 mm

    IP Degree Of Protection : IP2X conforming to IEC 60529

    Irms Rated Making Capacity : 140 A AC, 250 A DC

    Mechanical Durability : 5 Mcycles

    Minimum Switching Current : 5 mA

    Minimum Switching Voltage : 17 V

    Non-overlap Time : 1.5 ms on de-energisation no overlap between NC and NO contact, 1.5 ms on energisation no overlap between NC and NO contact

    Operating Altitude : 3000 m

    Pole Contact Composition : 1 NO + 1 NC

    Certifications : CB, UL, CSA, CCC, EAC, UKCA

    Protective Treatment : TH Conforming to IEC 60068

    Range Of Product : TeSys Deca

    Rated Operational Voltage Limits : 690 V AC 25...400 Hz

    Tightening Torque : 1.7 N.m - with screwdriver flat Ø 6 mm, 1.7 N.m - with screwdriver Philips No 2, 1.7 N.m - with screwdriver pozidriv No 2

    Time Delay Range : 1...30 s

    Width : 44 mm

    Permissible Short-time Rating : 100 A 60 °C 1 s, 120 A 60 °C 500 ms, 140 A 60 °C 100 ms

    Auxiliary Contacts Operation : Time Delay

    Shielding Continuity Terminal : Without

    Timer Type : On Delay

    Ambient Air Temperature For Operation : -40-70 °C

    Standards : UL 60947-5-1, CSA C22.2 No 60947-5-1, GB/T 14048.5, EN/IEC 60947-5-1

    Rated Operational Current : 6 A at 120 V AC-15, 1.04 A at 690 V AC-15, 0.55 A at 125 V DC-13, 0.1 A at 600 V DC-13

    Environmental Characteristic : Normal Environment

    Insulation Resistance : > 10 MOhm

    Mounting Location : Front

    Range Compatibility : TeSys D CAD, TeSys D LC1D, TeSys F LC1F, TeSys F CR1F, TeSys Deca CAD, TeSys Deca LC1D
