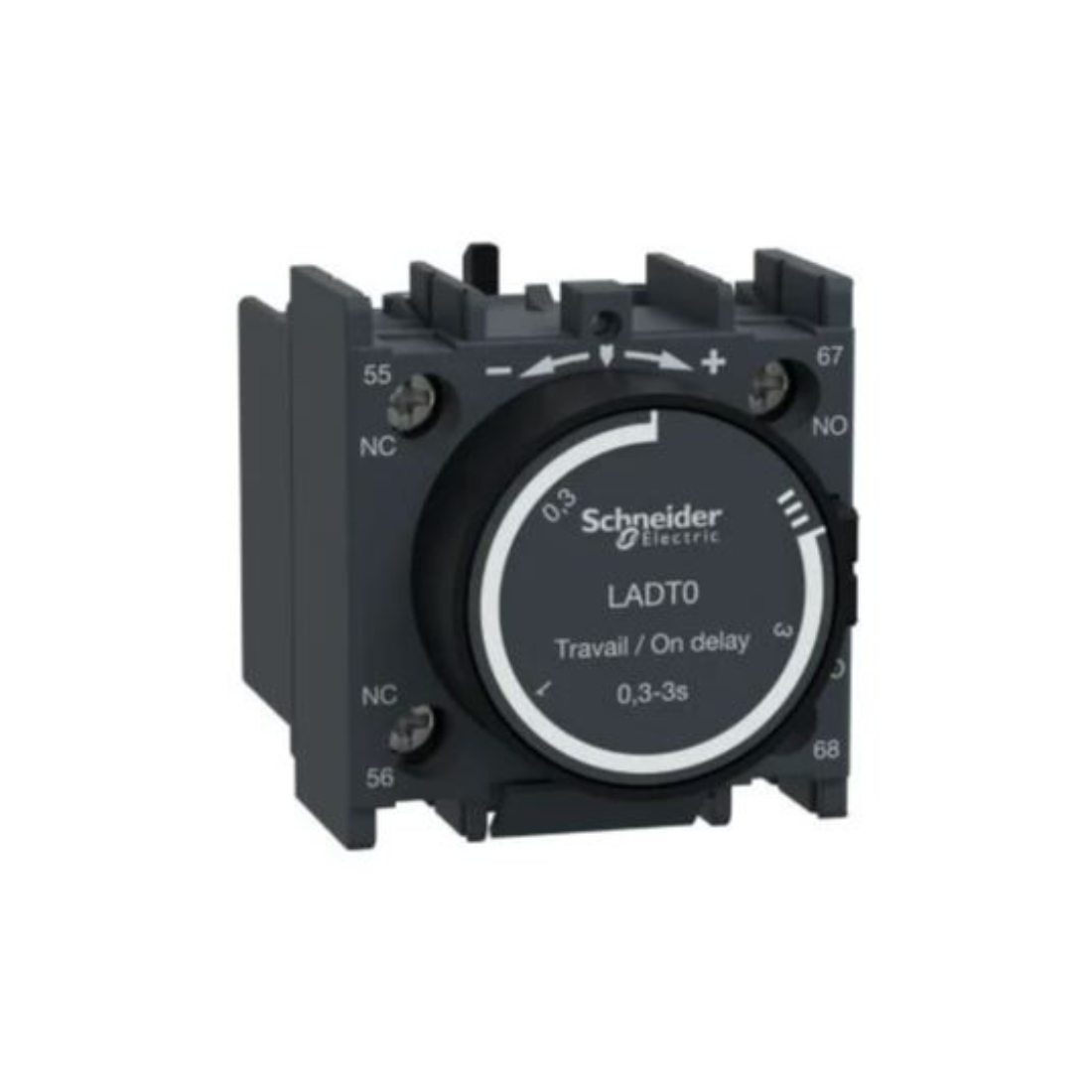

Schneider Electric TeSys D Time Delay Auxiliary Contact Block 1 NO + 1 NC Screw Clamp Terminals LADT0
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Auxiliary Contact Block
Description
Schneider Electric LADT0 Time Delay Auxiliary Contact Block is a type of component commonly used in electrical control circuits to provide auxiliary contacts that change state after a specified time delay. It has one Normally Open (NO) contact and one Normally Closed.
Time delay range means that after the input signal is received, there will be a delay of between 0.3 and 3 seconds before the contacts change state. It is designed to be mounted on the front of a control panel or enclosure for easy access. Screw Clamp Terminal is the type of terminal used for wiring connections. It uses a screw to secure the wire in place.
Schneider Electric LADT0 Time Delay Auxiliary Contact Block is used in situations that need a specific time delay before certain actions or events occur in an electrical circuit.
Features
- Used in electrical control systems
- Screw clamp terminals are used
| Brand | Schneider Electric |
| Item Name | Time Delay Auxiliary Contact Block |
| Model | LADT0 |
| Color | Dark Grey |
| Conventional Free Air Thermal Current | 10 A (at 60 °C) |
| Rated Insulation Voltage | 690 V conforming to IEC 60947-5-1, 600 V conforming to UL 60947-5-1, 600 V conforming to CSA C22.2 No 60947-5-1 |
| Ambient Air Temperature For Storage | -60-80 °C |
| Connections - Terminals | screw clamp terminals 1 cable(s) 1-2.5 mm²flexible with cable end, screw clamp terminals 1 cable(s) 1-2.5 mm²flexible without cable end, screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end, screw clamp terminals 2 cable(s) 1-2.5 mm²flexible without cable end, screw clamp terminals 1 cable(s) 1-2.5 mm²rigid, screw clamp terminals 2 cable(s) 1-2.5 mm²rigid, screw clamp terminals |
| Depth | 61 mm |
| Height | 48 mm |
| IP Degree Of Protection | IP20 conforming to IEC 60529 |
| Irms Rated Making Capacity | 140 A at <= 690 V AC conforming to IEC 60947-5-1, 250 A at <= 690 V DC conforming to IEC 60947-5-1 |
| Mechanical Durability | 5 Mcycles |
| Minimum Switching Current | 5 mA |
| Minimum Switching Voltage | 17 V |
| Non-overlap Time | 1.5 ms on de-energisation no overlap between NC and NO contact, 1.5 ms on energisation no overlap between NC and NO contact |
| Operating Altitude | 3000 m |
| Pole Contact Composition | 1 NO + 1 NC |
| Certifications | IECEE CB Scheme, UL, CSA, CCC, EAC, UKCA |
| Protective Treatment | TH Conforming to IEC 60068 |
| Range | TeSys, TeSys Deca |
| Rated Operational Voltage Limits | 690 V AC 25...400 Hz |
| Tightening Torque | 1.7 N.m - with screwdriver flat Ø 6 mm, 1.7 N.m - with screwdriver Philips No 2, 1.7 N.m - with screwdriver pozidriv No 2 |
| Time Delay Range | 0.3...3 s |
| Width | 44 mm |
| Permissible Short-time Rating | 100 A 60 °C 1 s, 120 A 60 °C 500 ms, 140 A 60 °C 100 ms |
| Auxiliary Contacts Operation | Time Delay |
| Shielding Continuity Terminal | Without |
| Timer Type | On Delay |
| Ambient Air Temperature For Operation | -40-70 °C |
| Standards | UL 60947-5-1, CSA C22.2 No 60947-5-1, GB/T 14048.5 |
| Rated Operational Current | 6 A at 120 V AC-15, 1.04 A at 690 V AC-15, 0.55 A at 125 V DC-13, 0.1 A at 600 V DC-13 |
| Environmental Characteristic | Normal Environment |
| Insulation Resistance | > 10 MOhm |
| Mounting Location | Front |
| Range Compatibility | TeSys D CAD, TeSys D LC1D, TeSys F LC1F, TeSys F CR1F, TeSys Deca CAD, TeSys Deca LC1D |
