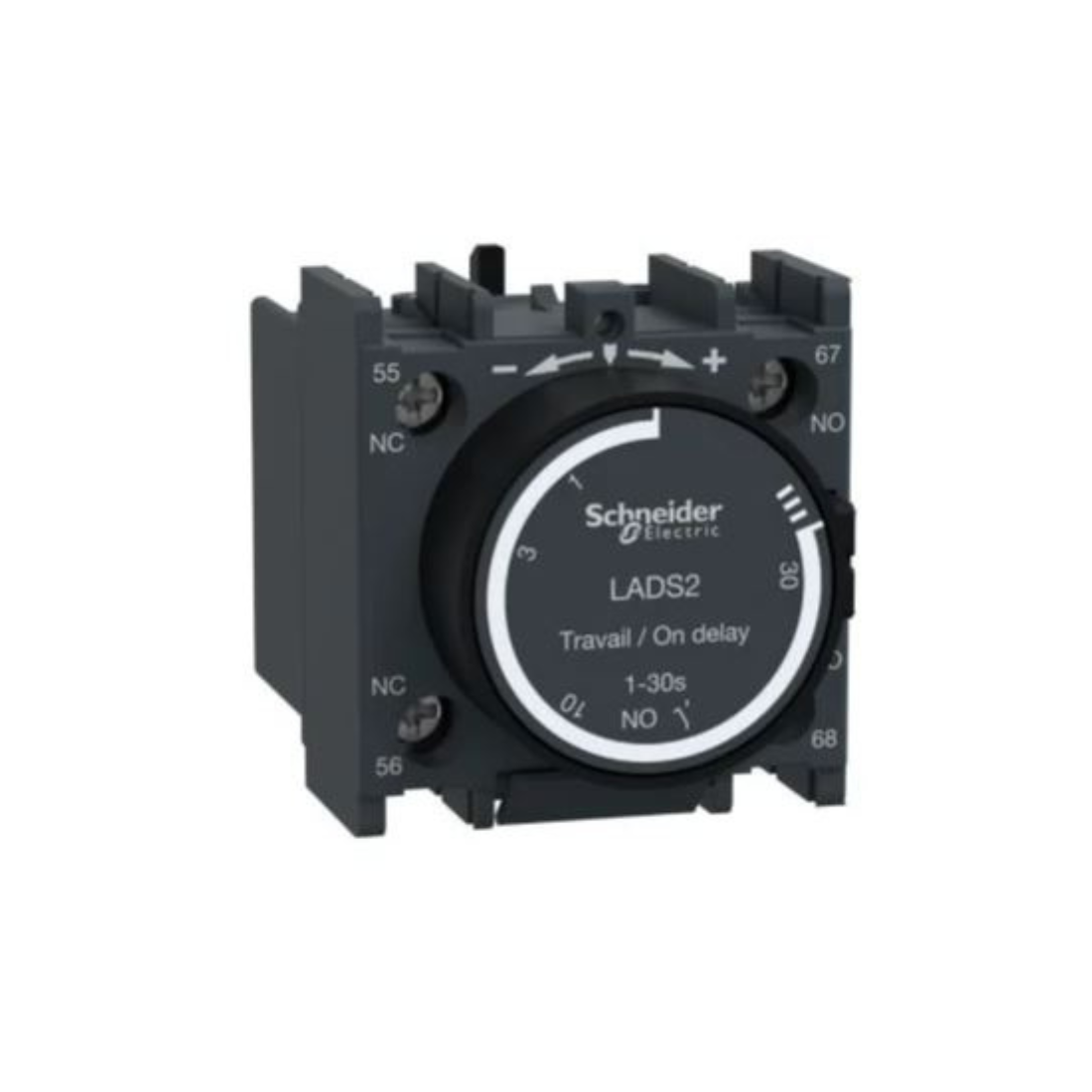

Schneider Electric TeSys D Time Delay Auxiliary Contact Block 1 NO + 1 NC Screw Clamp Terminals LADS2
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Auxiliary Contact Block
Description
Schneider Electric LADS2 Time Delay Auxiliary Contact Block typically finds application in control circuits for automation and industrial processes. It has a built-in time delay feature. This means that once the circuit is closed or activated, there will be a delay of 1-30 seconds before the contacts change state.
Auxiliary Contact Block is a device that can be added to an existing electrical contactor or relay. It provides additional contacts that can be used to perform auxiliary functions, such as signaling or interlocking. 1NO + 1NC is the number and type of contacts available on the block. "1NO" stands for one normally open contact, and "1NC" stands for one normally closed contact. These contacts allow for different circuit configurations depending on the application.
The terminals for connecting wires are located on the front face of the block for easy access. Screw Clamp Terminal is the type of terminals used for connecting wires. Screw clamp terminals have screws that can be tightened to secure the wires in place. This is a common method for creating reliable electrical connections.
Features
- Used in electrical control systems
- Screw clamp terminals are used
| Brand | Schneider Electric |
| Item Name | Time Delay Auxiliary Contact Block |
| Model | LADS2 |
| Color | Dark Grey |
| Conventional Free Air Thermal Current | 10 A (at 60 °C) |
| Rated Insulation Voltage | 690 V conforming to IEC 60947-5-1, 600 V conforming to UL, 600 V conforming to CSA |
| Ambient Air Temperature For Storage | -60-80 °C |
| Connections - Terminals | screw clamp terminals 1 cable(s) 1-2.5 mm²flexible with cable end, screw clamp terminals 1 cable(s) 1-2.5 mm²flexible without cable end, screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end, screw clamp terminals 2 cable(s) 1-2.5 mm²flexible without cable end, screw clamp terminals 1 cable(s) 1-2.5 mm²rigid, screw clamp terminals 2 cable(s) 1-2.5 mm²rigid, screw clamp terminals |
| Depth | 61 mm |
| Height | 48 mm |
| Device Application | Star Delta Starter |
| IP Degree Of Protection | IP20 conforming to IEC 60529 |
| Irms Rated Making Capacity | 140 A at <= 690 V AC conforming to IEC 60947-5-1, 250 A at <= 690 V DC conforming to IEC 60947-5-1 |
| Mechanical Durability | 5 Mcycles |
| Minimum Switching Current | 5 mA |
| Minimum Switching Voltage | 17 V |
| Non-overlap Time | 1.5 ms on de-energisation no overlap between NC and NO contact, 1.5 ms on energisation no overlap between NC and NO contact |
| Operating Altitude | 3000 m |
| Pole Contact Composition | 1 NO + 1 NC |
| Certifications | IECEE CB Scheme, UL, CSA, CCC, EAC, UKCA |
| Protective Treatment | TH Conforming to IEC 60068 |
| Range | TeSys, TeSys Deca |
| Rated Operational Voltage Limits | 690 V AC 25...400 Hz |
| Tightening Torque | 1.7 N.m - with screwdriver flat Ø 6 mm, 1.7 N.m - with screwdriver Philips No 2, 1.7 N.m - with screwdriver pozidriv No 2 |
| Time Delay Range | 1...30 s |
| Width | 44 mm |
| Permissible Short-time Rating | 100 A 60 °C 1 s, 120 A 60 °C 500 ms, 140 A 60 °C 100 ms |
| Auxiliary Contacts Operation | Time Delay |
| Shielding Continuity Terminal | Without |
| Timer Type | On Delay |
| Ambient Air Temperature For Operation | -40-70 °C |
| Standards | CSA C22.2 No 60947-5-1, GB/T 14048.5, EN/IEC 60947-5-1 |
| Rated Operational Current | 6 A at 120 V AC-15, 1.04 A at 690 V AC-15, 0.55 A at 125 V DC-13, 0.1 A at 600 V DC-13 |
| Environmental Characteristic | Normal Environment |
| Insulation Resistance | > 10 MOhm |
| Mounting Location | Front |
| Range Compatibility | TeSys D CAD, TeSys D LC1D, TeSys F LC1F, TeSys F CR1F, TeSys Deca CAD, TeSys Deca LC1D |
