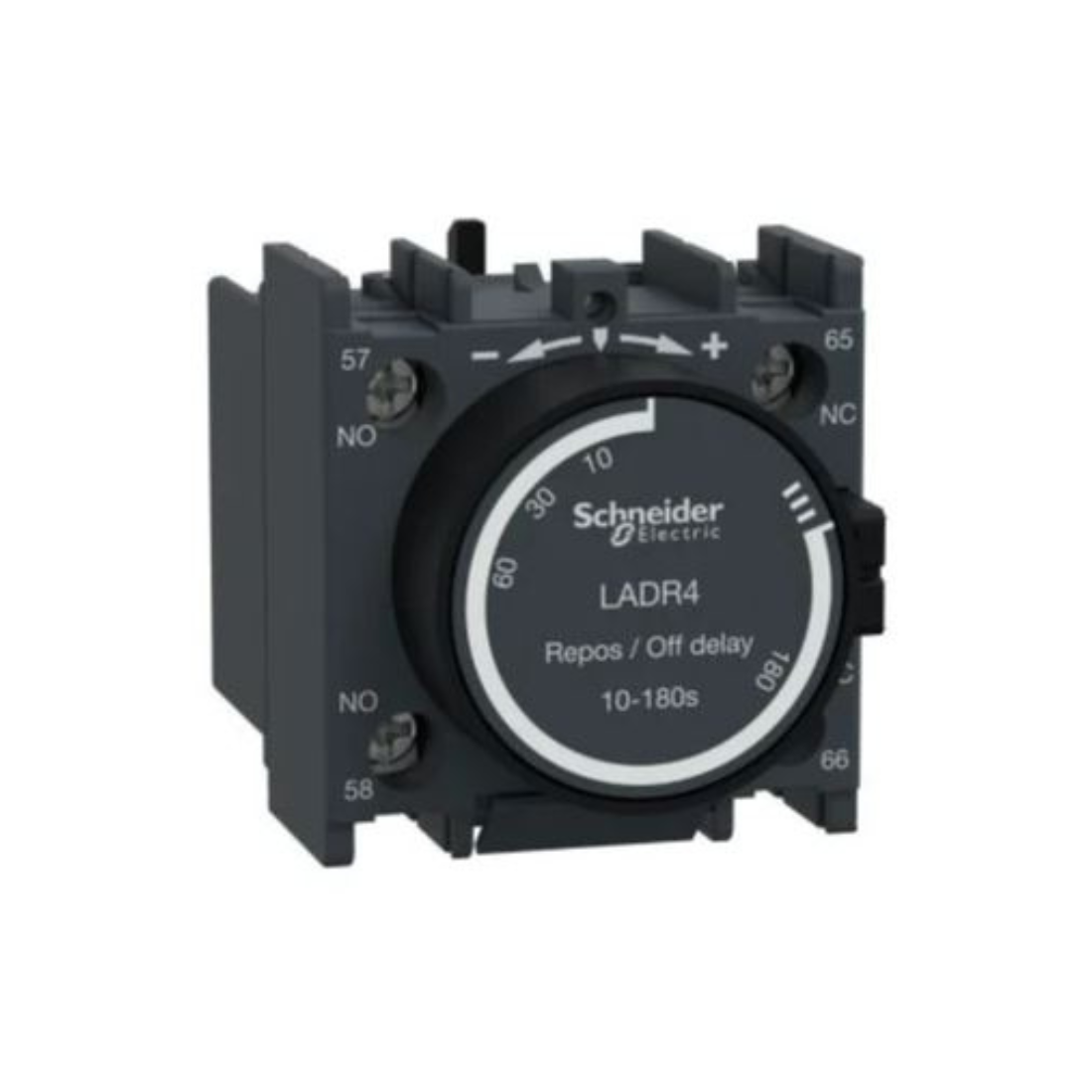

Schneider Electric TeSys D Time Delay Auxiliary Contact Block 1 NO + 1 NC Screw Clamp Terminals LADR4
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Auxiliary Contact Block
Description
Schneider Electric LADR4 Time Delay Auxiliary Contact Block is an electrical component used in control circuits of various industrial applications. It is used to add a time delay element to the operation of a circuit. It has one Normally Open (NO) contact and one Normally Closed (NC) contact. These contacts can be used to control other devices in an electrical circuit.
Off Delay 10-180s means that after the trigger condition is met, there will be a delay of 10 to 180 seconds before the contacts actually change state. The wiring or connections are located at the front of the component for easy access. Screw Clamp Terminal is the type of terminals used for connecting wires. Screw clamp terminals are common in industrial applications and allow for a secure connection.
Schneider Electric LADR4 Time Delay Auxiliary Contact Block is used for applications that need a delayed response after a trigger event, such as turning off a motor after a certain period of time.
Features
- Used in electrical control systems
- Screw clamp terminals are used
| Brand | Schneider Electric |
| Item Name | Time Delay Auxiliary Contact Block |
| Model | LADR4 |
| Color | Dark Grey |
| Conventional Free Air Thermal Current | 10 A (at 60 °C) |
| Rated Insulation Voltage | 690 V conforming to IEC 60947-5-1, 600 V conforming to UL, 600 V conforming to CSA |
| Ambient Air Temperature For Storage | -60-80 °C |
| Connections - Terminals | Screw Clamp Terminals 1 cable(s) 1-2.5 mm²flexible with cable end, screw clamp terminals 1 cable(s) 1-2.5 mm²flexible without cable end, screw clamp terminals 1 cable(s) 1-2.5 mm²rigid, screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end, screw clamp terminals 2 cable(s) 1-2.5 mm²flexible without cable end, screw clamp terminals 2 cable(s) 1-2.5 mm²rigid, screw clamp terminals |
| Depth | 61 mm |
| Height | 48 mm |
| IP Degree Of Protection | IP20 conforming to IEC 60529 |
| Irms Rated Making Capacity | 140 A at <= 690 V AC conforming to IEC 60947-5-1, 250 A at <= 690 V DC conforming to IEC 60947-5-1 |
| Mechanical Durability | 5 Mcycles |
| Minimum Switching Current | 5 mA |
| Minimum Switching Voltage | 17 V |
| Non-overlap Time | 1.5 ms on de-energisation no overlap between NC and NO contact, 1.5 ms on energisation no overlap between NC and NO contact |
| Operating Altitude | 3000 m |
| Pole Contact Composition | 1 NO + 1 NC |
| Certifications | IECEE CB Scheme, UL, CSA, CCC, EAC, UKCA |
| Protective Treatment | TH Conforming to IEC 60068 |
| Range | TeSys, TeSys Deca |
| Rated Operational Voltage Limits | 690 V AC 25...400 Hz |
| Tightening Torque | 1.7 N.m - with screwdriver flat Ø 6 mm, 1.7 N.m - with screwdriver Philips No 2, 1.7 N.m - with screwdriver pozidriv No 2 |
| Time Delay Range | 10...180 s |
| Width | 44 mm |
| Permissible Short-time Rating | 100 A 60 °C 1 s, 120 A 60 °C 500 ms, 140 A 60 °C 100 ms |
| Auxiliary Contacts Operation | Time Delay |
| Shielding Continuity Terminal | Without |
| Timer Type | Off Delay |
| Ambient Air Temperature For Operation | -40-70 °C |
| Standards | GB/T 14048.5 |
| Rated Operational Current | 6 A at 120 V AC-15, 1.04 A at 690 V AC-15, 0.55 A at 125 V DC-13, 0.1 A at 600 V DC-13 |
| Environmental Characteristic | Normal Environment |
| Insulation Resistance | > 10 MOhm |
| Mounting Location | Front |
| Range Compatibility | TeSys D CAD, TeSys D LC1D, TeSys F LC1F, TeSys F CR1F, TeSys Deca CAD, TeSys Deca LC1D |
