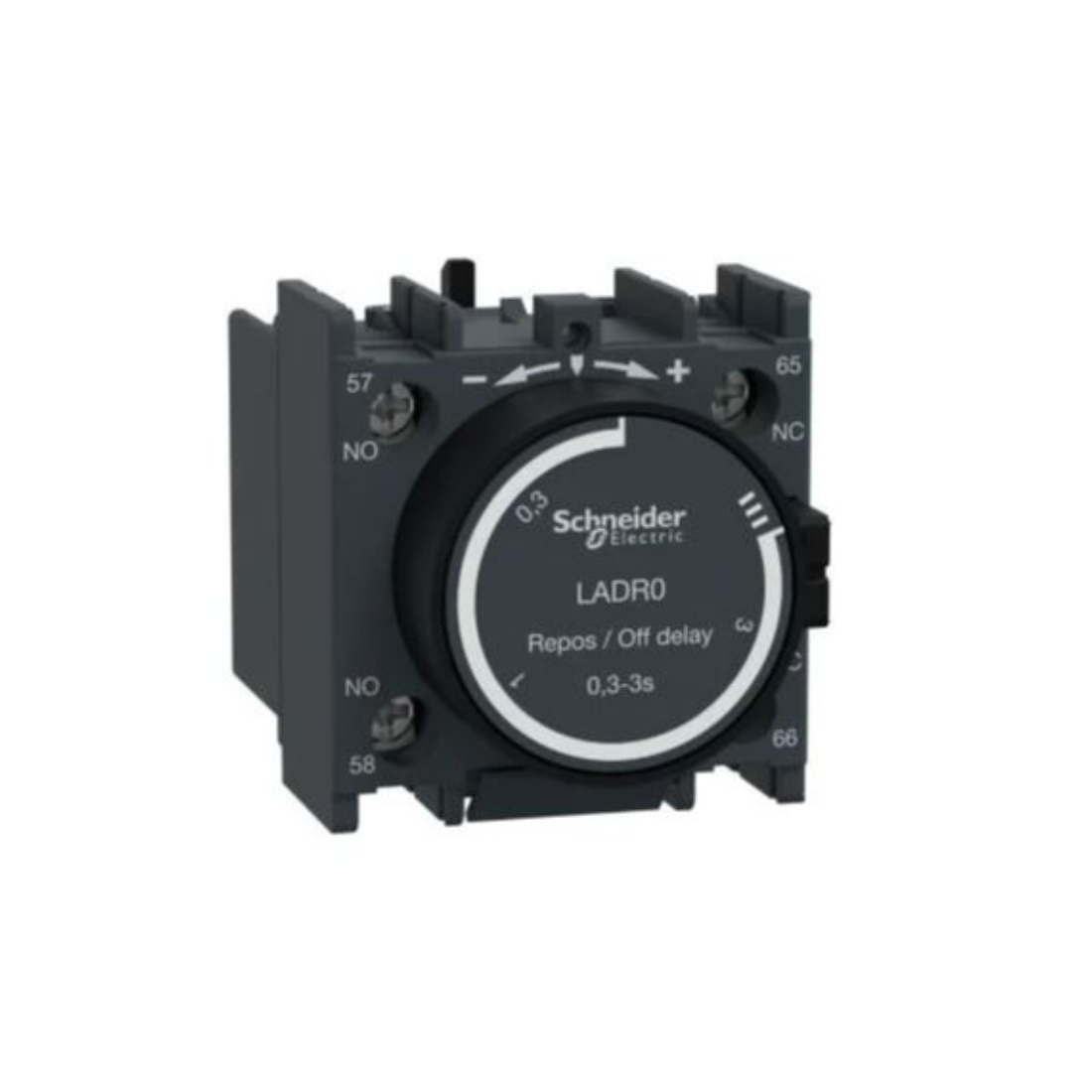

Schneider Electric TeSys D Time Delay Auxiliary Contact Block 1 NO + 1 NC Screw Clamp Terminals LADR0

Name: Schneider Electric TeSys D Time Delay Auxiliary Contact Block 1 NO + 1 NC Screw Clamp Terminals LADR0
Brand: Schneider Electric
Price: 155.4 AED
Availability: InStock

AED 155.40

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Auxiliary Contact Block

Description

Schneider Electric LADR0 Time Delay Auxiliary Contact Block for LC1D, LC1F contactors, and CAD control relays. It offers 1NO + 1NC contacts rated up to 10A at 690VAC, a trip delay adjustment range of 0.3 to 3s, and connection via screw terminals. Front clip mounting ensures high reliability and durability. Multi-standard certification (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach).

Features

Used in electrical control systems
Screw clamp terminals are used

Specifications

Brand : Schneider Electric

Item Name : Time Delay Auxiliary Contact Block

Model : LADR0

Color : Dark Grey

Conventional Free Air Thermal Current : 10 A (at 60 °C)

Rated Insulation Voltage : 690 V conforming to IEC 60947-5-1, 600 V conforming to UL 60947-5-1, 600 V conforming to CSA C22.2 No 60947-5-1

Ambient Air Temperature For Storage : -60-80 °C

Connections - Terminals : screw clamp terminals 1 cable(s) 1-2.5 mm²flexible with cable end, screw clamp terminals 1 cable(s) 1-2.5 mm²flexible without cable end, screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end, screw clamp terminals 2 cable(s) 1-2.5 mm²flexible without cable end, screw clamp terminals 1 cable(s) 1-2.5 mm²rigid, screw clamp terminals 2 cable(s) 1-2.5 mm²rigid, screw clamp terminals

Depth : 61 mm

Height : 48 mm

IP Degree Of Protection : IP20 conforming to IEC 60529

Irms Rated Making Capacity : 140 A AC conforming to IEC 60947-5-1, 250 A DC conforming to IEC 60947-5-1

Mechanical Durability : 5 Mcycles

Minimum Switching Current : 5 mA

Minimum Switching Voltage : 17 V

Non-overlap Time : 1.5 ms on de-energisation no overlap between NC and NO contact, 1.5 ms on energisation no overlap between NC and NO contact

Operating Altitude : 3000 m

Pole Contact Composition : 1 NO + 1 NC

Certifications : IECEE CB Scheme, UL, CSA, CCC, EAC, UKCA

Protective Treatment : TH Conforming to IEC 60068

Range : TeSys, TeSys Deca

Rated Operational Voltage Limits : 690 V AC 25...400 Hz

Tightening Torque : 1.7 N.m - with screwdriver flat Ø 6 mm, 1.7 N.m - with screwdriver Philips No 2, 1.7 N.m - with screwdriver pozidriv No 2

Time Delay Range : 0.3...3 s

Width : 44 mm

Permissible Short-time Rating : 100 A 60 °C 1 s, 120 A 60 °C 500 ms, 140 A 60 °C 100 ms

Auxiliary Contacts Operation : Time Delay

Shielding Continuity Terminal : Without

Timer Type : Off Delay

Ambient Air Temperature For Operation : -40-70 °C

Standards : EN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1, GB/T 14048.5, EN 50012

Rated Operational Current : 6 A at 120 V AC-15, 1.04 A at 690 V AC-15, 0.55 A at 125 V DC-13, 0.1 A at 600 V DC-13

Environmental Characteristic : Normal Environment

Insulation Resistance : > 10 MOhm

Mounting Location : Front

Range Compatibility : TeSys D CAD, TeSys D LC1D, TeSys F LC1F, TeSys F CR1F, TeSys Deca CAD, TeSys Deca LC1D
